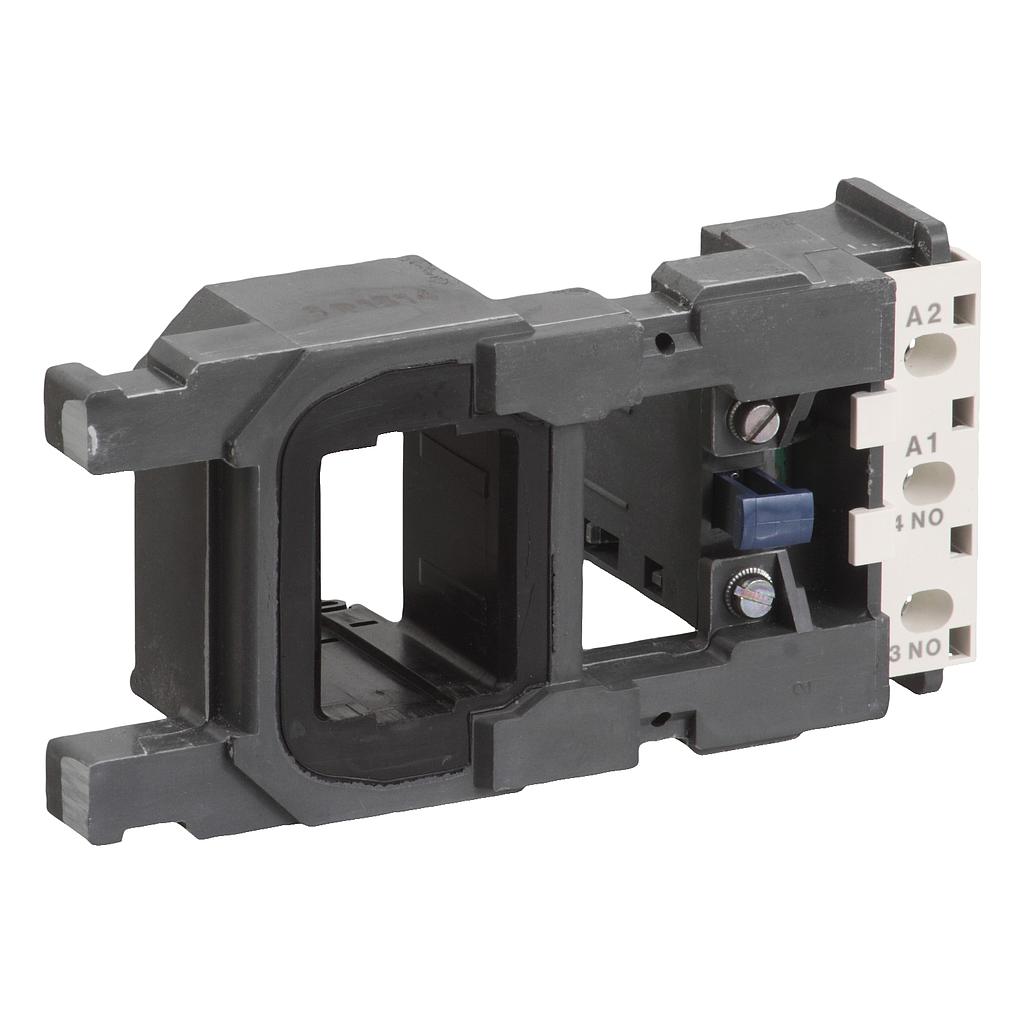

  5. Schneider TeSys F - contactor coil - LX1FG - 380...400V AC 50 Hz - 460...480 V AC 60 Hz

Schneider TeSys F - contactor coil - LX1FG - 380...400V AC 50 Hz - 460...480 V AC 60 Hz

Rp 0,00 Rp 0,00 0 IDR

Rp 0,00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys F - contactor coil - LX1FG - 380...400V AC 50 Hz - 460...480 V AC 60 Hz
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 0,00
    0.00 % Rp 0,00 0 IDR

    Rp 0,00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    TeSys
    product or component type
    Contactor coil
    device short name
    LX1FG
    range compatibility
    TeSys F LC1F contactor
    product compatibility
    LC1F225
    LC1F185
    control circuit type
    AC at 50/60 Hz
    [Uc] control circuit voltage
    380...400 V AC 50 Hz
    460...480 V AC 60 Hz
    average resistance
    51.3 Ohm at 20 °C
    inductance of closed circuit
    7.75 H
    operating time
    20...35 ms closing
    7...15 ms opening
    mechanical durability
    10 Mcycles
    maximum operating rate
    2400 cyc/h 55 °C
    Complementary (see above)
    coil technology
    Without built-in suppressor module
    control circuit voltage limits
    Drop-out: 0.35...0.55 Uc 50/60 Hz (at 55 °C)
    Operational: 0.85...1.1 Uc 50/60 Hz (at 55 °C)
    inrush power in VA
    805 VA 50 Hz cos phi 0.3 (at 20 °C)
    970 VA 60 Hz cos phi 0.3 (at 20 °C)
    hold-in power consumption in VA
    55 VA 50 Hz cos phi 0.3 (at 20 °C)
    66 VA 60 Hz cos phi 0.3 (at 20 °C)
    heat dissipation
    18…24 W at 50/60 Hz
    Environment (see above)
    ambient air temperature for operation
    -5…55 °C
    net weight
    0.55 kg
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    536 g
    Package 1 Height
    7 cm
    Package 1 width
    8.5 cm
    Package 1 Length
    16 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    Contractual warranty (see above)
    Warranty
    12 months
