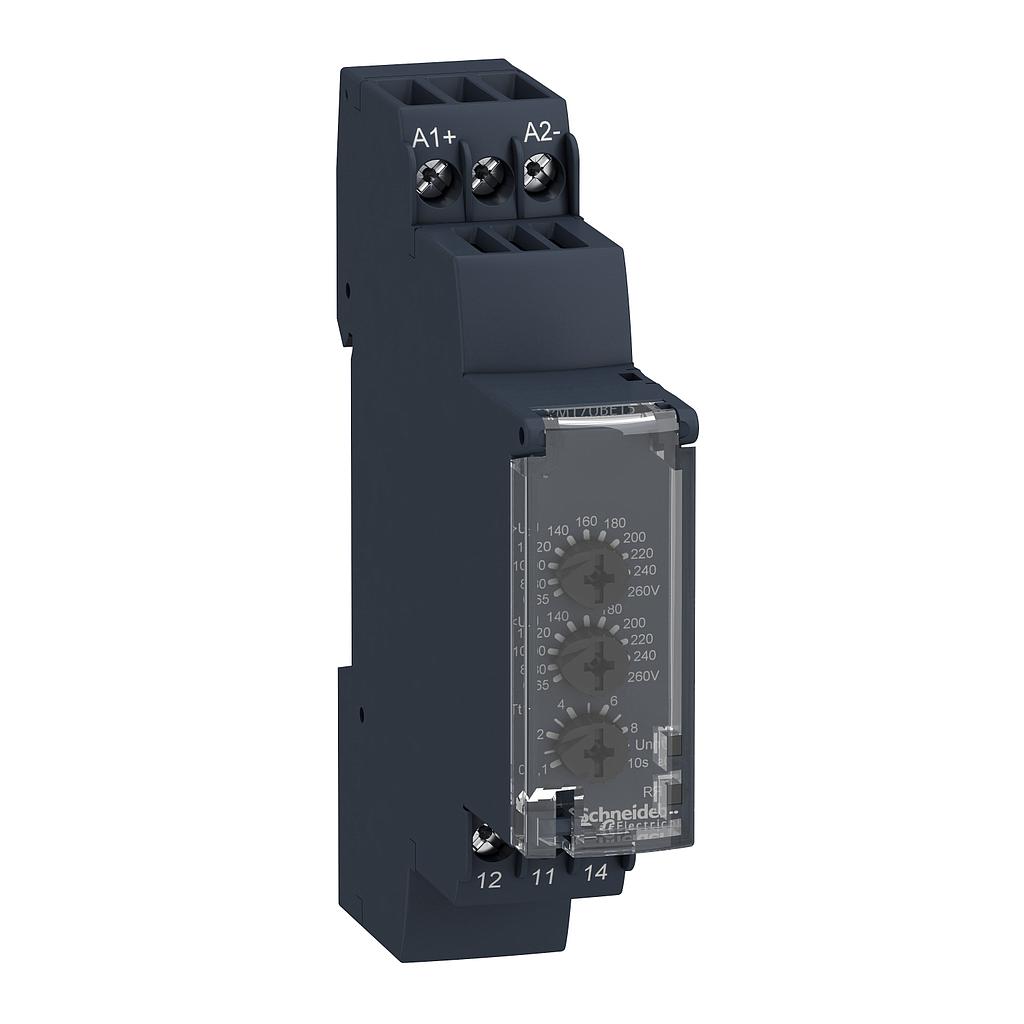

Schneider Voltage control relay RM17-U - range 65..260 V AC/DC

Rp 1,335,946.00 Rp 774,848.00 774848 IDR

Rp 1,335,946.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Voltage control relay RM17-U - range 65..260 V AC/DC
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 774,848.00
    42.00 % Rp 1,335,946.00 774848 IDR

    Rp 1,335,946.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 19
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Control Relays
    product or component type
    Voltage control relay
    relay type
    Voltage control relay
    product specific application
    For single-phase and DC supply
    relay name
    RM17UBE
    relay monitored parameters
    Self-powered
    Overvoltage and undervoltage detection
    time delay
    Adjustable 0.1...10 s, 0 + 10 % on crossing the threshold
    switching capacity in VA
    1250 VA
    minimum switching current
    10 mA at 5 V DC
    maximum switching current
    5 A AC/DC
    power consumption in VA
    0…3 VA AC
    measurement range
    65...260 V voltage AC/DC
    utilisation category
    AC-12 conforming to IEC 60947-5-1
    AC-13 conforming to IEC 60947-5-1
    AC-14 conforming to IEC 60947-5-1
    AC-15 conforming to IEC 60947-5-1
    DC-12 conforming to IEC 60947-5-1
    DC-13 conforming to IEC 60947-5-1
    DC-14 conforming to IEC 60947-5-1
    contacts type and composition
    1 C/O
    Complementary (see above)
    reset time
    1500 ms time delay
    maximum switching voltage
    250 V AC/DC
    [Us] rated supply voltage
    110...240 V AC/DC 50/60 Hz +/- 10 %
    supply voltage limits
    50…270 V AC/DC
    maximum power consumption in W
    1 W DC
    immunity to microbreaks
    20 ms
    control circuit frequency
    50...60 Hz +/- 10 %
    output contacts
    1 C/O
    nominal output current
    5 A
    maximum measuring cycle
    150 ms measurement cycle as true rms value
    hysteresis
    3 % fixed of threshold setting
    delay at power up
    1000 ms DC
    500 ms AC
    measurement accuracy
    +/- 10 % of the full scale value
    repeat accuracy
    +/- 0.5 % for input and measurement circuit
    +/- 1 % for time delay
    measurement error
    < 1 % over the whole range with voltage variation
    0.2 %/°C with temperature variation
    polarity
    Non reversible polarity on DC supply
    quality labels
    CE
    overvoltage category
    III conforming to IEC 60664-1
    insulation resistance
    > 500 MOhm at 500 V DC conforming to IEC 60255-5
    > 500 MOhm at 500 V DC conforming to IEC 60664-1
    [Ui] rated insulation voltage
    250 V conforming to IEC 60664-1
    400 V conforming to IEC 60664-1
    operating position
    Any position without derating
    connections - terminals
    Screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
    Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
    Screw terminals, 1 x 0.2...2 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
    tightening torque
    0.6…1 N.m conforming to IEC 60947-1
    housing material
    Self-extinguishing plastic
    local signalling
    LED (green) for power ON
    LED (yellow) for relay ON
    mounting support
    35 mm symmetrical DIN rail conforming to EN/IEC 60715
    electrical durability
    100000 cycles
    mechanical durability
    30000000 cycles
    operating rate
    <= 360 operations/hour full load
    safety reliability data
    B10d = 470000
    MTTFd = 502.2 years
    width
    17.5 mm
    net weight
    0.08 kg
    functionality
    Overvoltage and undervoltage detection
    compatibility code
    RM17
    Environment (see above)
    electromagnetic compatibility
    Emission standard for industrial environments conforming to EN/IEC 61000-6-4
    Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3
    Immunity for industrial environments conforming to NF EN/IEC 61000-6-2
    standards
    EN/IEC 60255-6
    product certifications
    UL
    GL
    GOST
    C-Tick
    CSA
    directives
    73/23/EEC - low voltage directive
    89/336/EEC - electromagnetic compatibility
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -20…50 °C
    relative humidity
    95 % at 55 °C conforming to IEC 60068-2-30
    vibration resistance
    0.35 mm (f= 5…57.6 Hz) conforming to IEC 60068-2-6
    1 gn (f= 57.6…150 Hz) conforming to IEC 60255-21-1
    shock resistance
    5 gn conforming to IEC 60068-2-27
    IP degree of protection
    IP20 (terminals) conforming to IEC 60529
    IP30 (casing) conforming to IEC 60529
    pollution degree
    3 conforming to IEC 60664-1
    dielectric test voltage
    2 kV, 1 min AC 50 Hz conforming to IEC 60255-5
    2 kV, 1 min AC 50 Hz conforming to IEC 60664-1
    non-dissipating shock wave
    4 kV conforming to IEC 60255-5
    4 kV conforming to IEC 60664-1
    4 kV conforming to IEC 61000-4-5
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    85.9 g
    Package 1 Height
    2.8 cm
    Package 1 width
    7.8 cm
    Package 1 Length
    9.7 cm
    Unit Type of Package 2
    S02
    Number of Units in Package 2
    48
    Package 2 Weight
    4.568 kg
    Package 2 Height
    15 cm
    Package 2 width
    30 cm
    Package 2 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    California proposition 65
    WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    Contractual warranty (see above)
    Warranty
    12 months
