  4. Schneider Three-Phase Voltage control relay 380…480Vac, 2 C/O

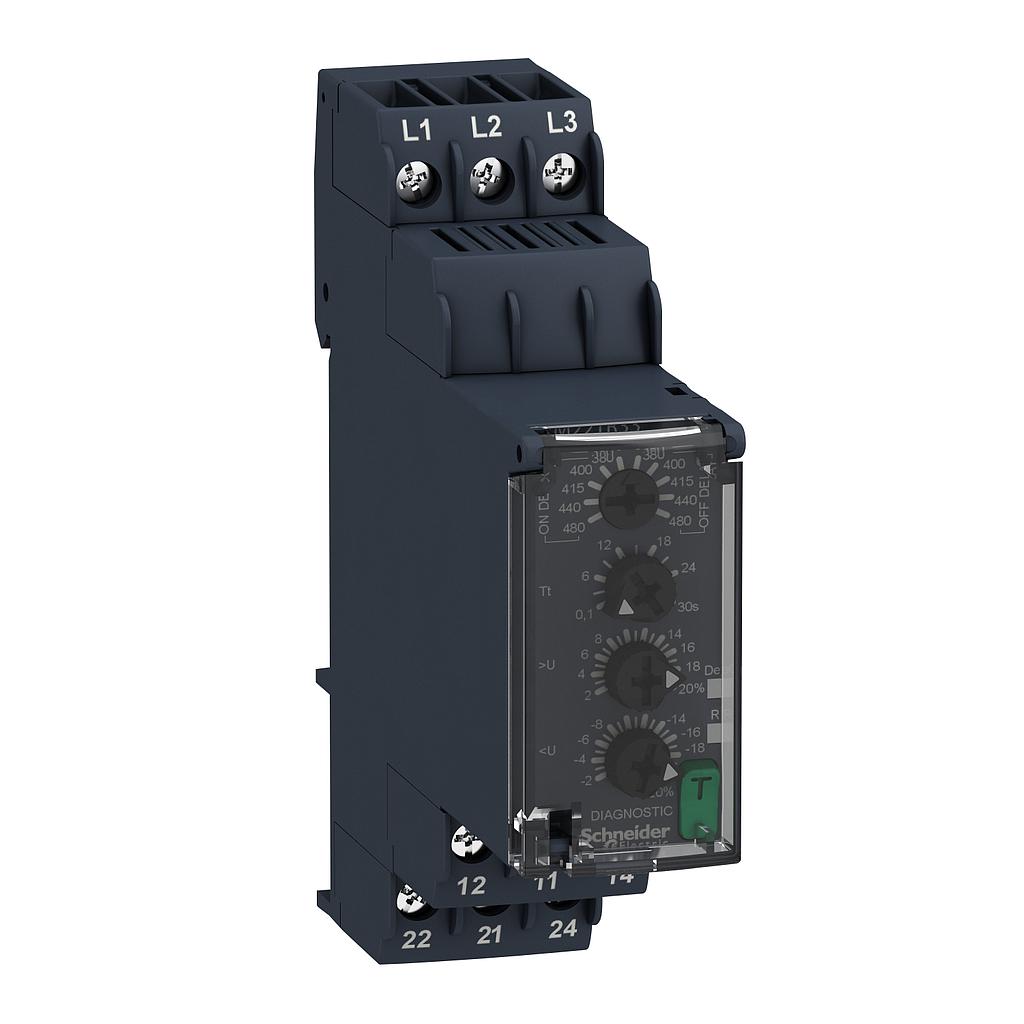

Schneider Three-Phase Voltage control relay 380…480Vac, 2 C/O

Rp 2,793,653.00 Rp 1,620,318.00 1620318 IDR

Rp 2,793,653.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Three-Phase Voltage control relay 380…480Vac, 2 C/O
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,620,318.00
    42.00 % Rp 2,793,653.00 1620318 IDR

    Rp 2,793,653.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 34
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Control Relays
    product or component type
    3-phase control relay
    relay type
    Control relay
    network number of phases
    3 phases
    relay name
    RM22TR
    relay monitored parameters
    Overvoltage and undervoltage detection
    Phase sequence
    Phase failure detection
    time delay type
    Adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt
    switching capacity in VA
    2000 VA
    measurement range
    380...480 V voltage AC
    contacts type and composition
    2 C/O
    Complementary (see above)
    reset time
    1500 ms at maximum voltage
    maximum switching voltage
    250 V AC
    minimum switching current
    10 mA at 5 V DC
    maximum switching current
    8 A AC
    [Us] rated supply voltage
    380...480 V AC
    supply voltage limits
    304…576 V AC
    operating limits
    - 20 % + 20 % Un
    power consumption in VA
    15 VA at 480 V AC 60 Hz
    voltage detection threshold
    < 100 V AC
    supply voltage frequency
    50...60 Hz +/- 10 %
    output contacts
    2 C/O
    nominal output current
    8 A
    setting accuracy of the switching threshold
    +/- 10 % of the full scale
    switching threshold drift
    <= 0.05 % per degree centigrade depending permissible ambient air temperature
    <= 1 % within the supply voltage range
    setting accuracy of time delay
    10 P
    time delay drift
    <= 0.05 % per degree centigrade depending permissible ambient air temperature
    <= 1 % within the supply voltage range
    hysteresis
    2 % fixed of selectable
    run-up delay at power-up
    650 ms
    maximum measuring cycle
    150 ms measurement cycle as true rms value
    threshold adjustment voltage
    2...20 % of Un selected
    voltage range
    380...480 V phase to phase
    repeat accuracy
    +/- 0.5 % for input and measurement circuit
    +/- 3 % for time delay
    measurement error
    < 1 % over the whole range with voltage variation
    < 0.05 %/°C with temperature variation
    response time
    <= 300 ms
    overvoltage category
    III conforming to IEC 60664-1
    III conforming to UL 508
    insulation resistance
    > 100 MOhm at 500 V DC conforming to IEC 60255-27
    mounting position
    Any position
    connections - terminals
    Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end
    Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    tightening torque
    0.6…1 N.m conforming to IEC 60947-1
    housing material
    Self-extinguishing plastic
    status LED
    LED (yellow)relay ON
    LED (green)power ON
    mounting support
    35 mm DIN rail conforming to EN/IEC 60715
    electrical durability
    100000 cycles
    mechanical durability
    10000000 cycles
    utilisation category
    AC-15 conforming to IEC 60947-5-1
    DC-13 conforming to IEC 60947-5-1
    AC-1 conforming to IEC 60947-4-1
    DC-1 conforming to IEC 60947-4-1
    safety reliability data
    MTTFd = 388.1 years
    B10d = 350000
    contacts material
    Cadmium free
    width
    22.5 mm
    net weight
    0.09 kg
    Environment (see above)
    immunity to microbreaks
    10 ms
    electromagnetic compatibility
    Immunity for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-1
    Immunity for industrial environments conforming to EN/IEC 61000-6-2
    Emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3
    Emission standard for industrial environments conforming to EN/IEC 61000-6-4
    Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2
    Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3
    Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4
    Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4
    Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5
    Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5
    Conducted and radiated emissions class B group 1 conforming to CISPR 11
    Conducted and radiated emissions class B conforming to CISPR 22
    standards
    EN/IEC 60255-1
    product certifications
    GL
    CSA
    RCM
    CE
    EAC
    CCC
    UL
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -20…50 °C at 60 Hz
    -20…60 °C at 50 Hz AC/DC
    relative humidity
    93…97 % at 25…55 °C conforming to IEC 60068-2-30
    vibration resistance
    0.075 mm (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6
    1 gn (f= 10…58.1 Hz) not in operation conforming to IEC 60068-2-6
    0.035 mm (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6
    0.5 gn (f= 58.1…150 Hz) in operation conforming to IEC 60068-2-6
    shock resistance
    15 gn (duration = 11 ms) for not in operation conforming to IEC 60068-2-27
    5 gn (duration = 11 ms) for in operation conforming to IEC 60068-2-27
    IP degree of protection
    IP20 (terminals) conforming to IEC 60529
    IP40 (housing) conforming to IEC 60529
    IP50 (front panel) conforming to IEC 60529
    pollution degree
    3 conforming to IEC 60664-1
    3 conforming to UL 508
    dielectric test voltage
    2.5 kV, 1 min AC 50 Hz conforming to IEC 60255-27
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    104 g
    Package 1 Height
    2.6 cm
    Package 1 width
    8.2 cm
    Package 1 Length
    9.5 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
