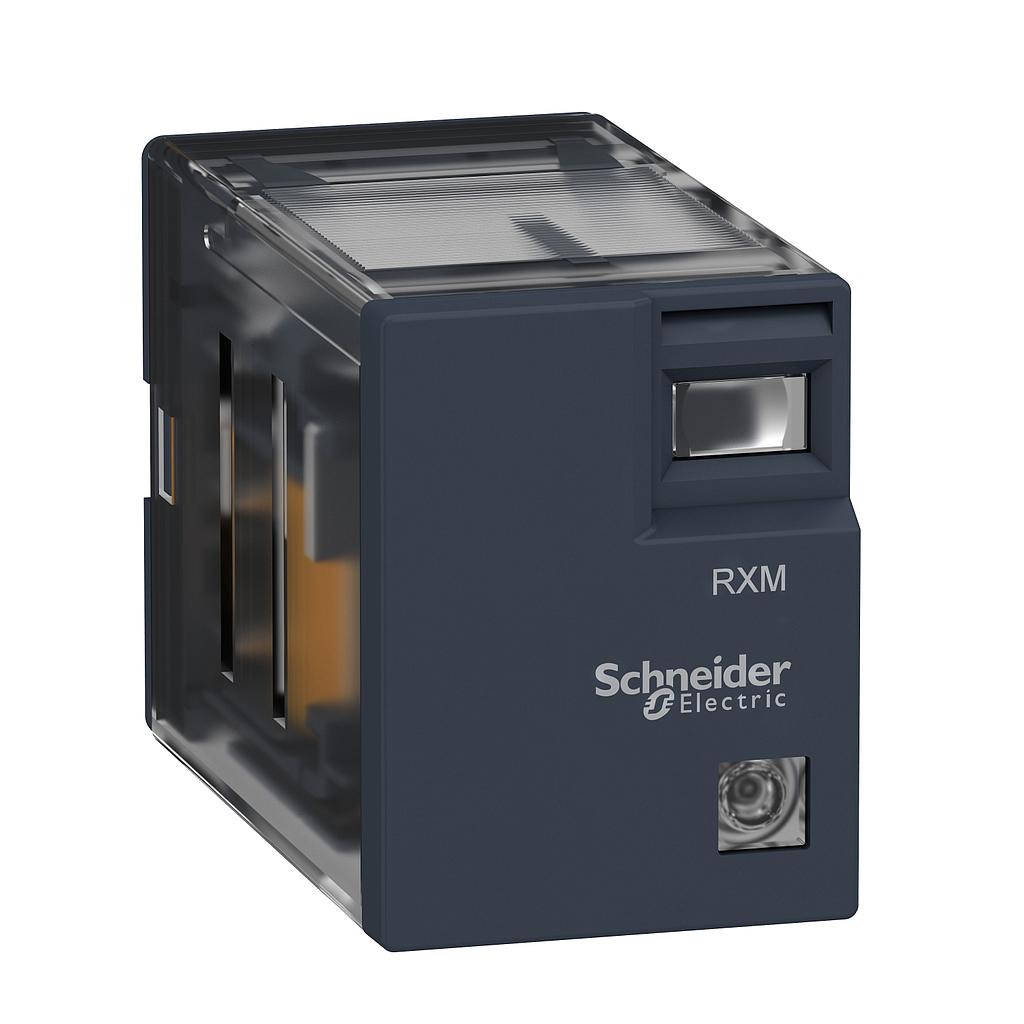

Schneider Miniature plug-in relay - Zelio RXM2L - 2 C/O - 48 V DC - 5 A - with LED

Rp 85,061.00 Rp 49,335.00 49335 IDR

Rp 85,061.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Miniature plug-in relay - Zelio RXM2L - 2 C/O - 48 V DC - 5 A - with LED
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 49,335.00
    42.00 % Rp 85,061.00 49335 IDR

    Rp 85,061.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 750
    Spesifikasi
    Main (see above)
    range of product
    Harmony Electromechanical Relays

    series name
    Miniature

    product or component type
    Plug-in relay

    device short name
    RXM

    coil interference suppression
    Without

    utilisation coefficient
    20 %

    sale per indivisible quantity
    10

    Complementary (see above)
    contacts type and composition
    2 C/O

    contact operation
    Standard

    [Uc] control circuit voltage
    48 V DC

    [Ithe] conventional enclosed thermal current
    5 A at -40…55 °C

    status LED
    With

    control type
    Without push-button

    [Ui] rated insulation voltage
    250 V conforming to IEC

    [Uimp] rated impulse withstand voltage
    3.6 kV during 1.2/50 µs conforming to IEC 61810-7

    contacts material
    Silver alloy (Ag/Ni)

    [Ie] rated operational current
    5 A (AC-1/DC-1) NO conforming to IEC
    2.5 A (AC-1/DC-1) NC conforming to IEC
    1 A at 28 V (DC-13) NO

    minimum switching current
    10 mA

    maximum switching voltage
    250 V AC
    250 V DC

    minimum switching voltage
    17 V

    load current
    5 A at 250 V AC
    5 A at 28 V DC

    maximum switching capacity
    1250 VA AC
    140 W DC

    minimum switching capacity
    170 mW

    operating rate
    <= 1200 cycles/hour under load
    <= 18000 cycles/hour no-load

    mechanical durability
    10000000 cycles

    electrical durability
    100000 cycles for resistive load
    50000 cycles, 1 A at 28 V, DC-13 NO

    average coil consumption
    0.9 W, DC

    drop-out voltage threshold
    >= 0.1 Uc DC

    operating time
    20 ms between coil de-energisation and making of the Off-delay contact
    20 ms between coil energisation and making of the On-delay contact

    average resistance
    2600 Ohm network: DC at 20 °C +/- 10 %

    rated operational voltage limits
    38.4...52.8 V DC

    protection category
    RT I

    test levels
    Level A group mounting

    operating position
    Any position

    CAD overall width
    21 mm

    CAD overall height
    27 mm

    CAD overall depth
    46 mm

    net weight
    0.033 kg

    dielectric strength
    2000 V AC between coil and contact
    2000 V AC between poles
    1000 V AC between contacts

    safety reliability data
    B10d = 100000

    Environment (see above)
    standards
    CE
    EN/IEC 61810-1 (iss. 2)

    ambient air temperature for storage
    -40…85 °C

    ambient air temperature for operation
    -40…55 °C

    vibration resistance
    3 gn, amplitude = +/- 1 mm (f = 10…50 Hz)operating conforming to EN/IEC 60068-2-6
    6 gn, amplitude = +/- 1 mm (f = 10…50 Hz)not operating conforming to EN/IEC 60068-2-6

    IP degree of protection
    IP40 conforming to EN/IEC 60529

    shock resistance
    10 gn for opening conforming to EN/IEC 60068-2-27
    5 gn for closing conforming to EN/IEC 60068-2-27

    Packing Units (see above)
    Package 1 Weight
    37.000 g

    Package 1 Height
    41.000 mm

    Package 1 width
    21.000 mm

    Package 1 Length
    28.000 mm

    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product

    REACh Regulation
    REACh free of SVHC
    Yes

    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration

    Toxic heavy metal free
    Yes

    Mercury free
    Yes

    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Contractual warranty (see above)
    Warranty
    12 months
