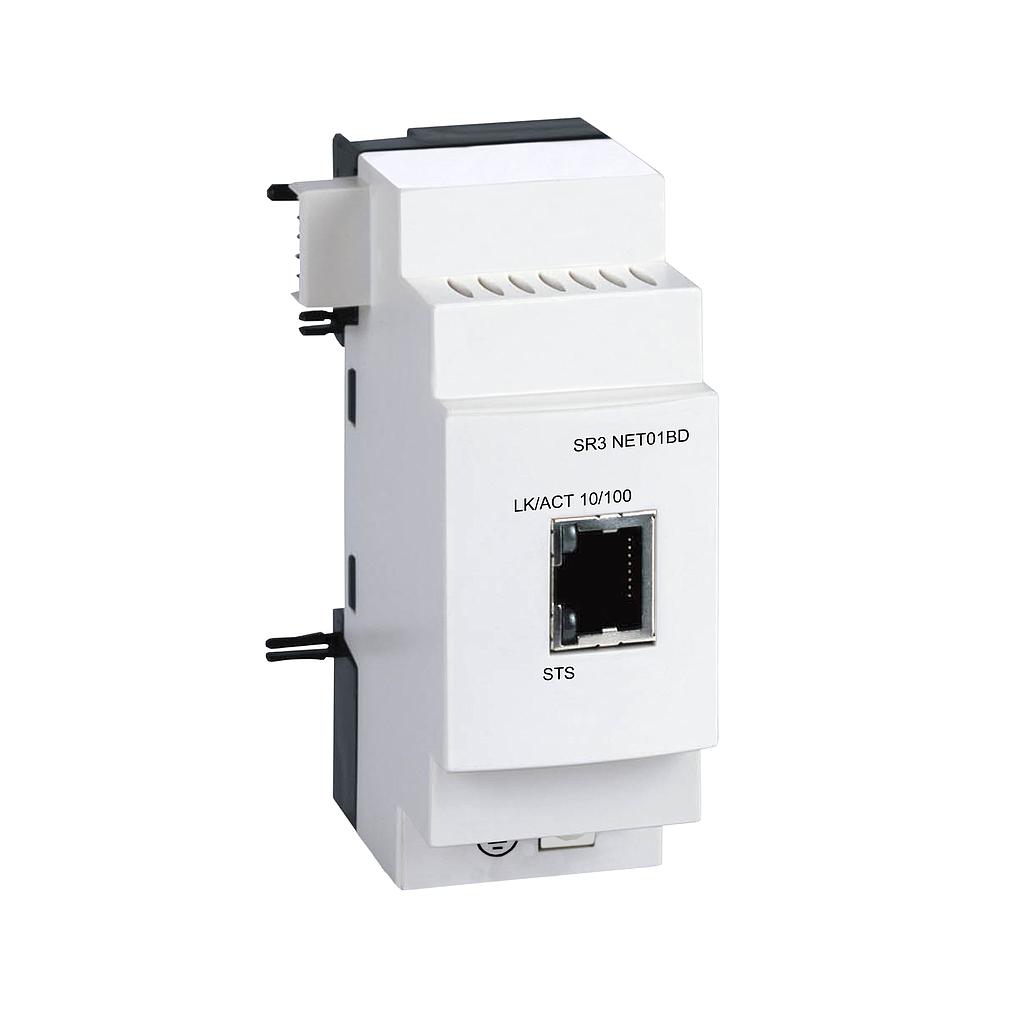

Schneider Ethernet communication interface - for SR3 24V DC smart relay

Rp 3,978,684.00 Rp 2,307,636.00 2307636 IDR

Rp 3,978,684.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Ethernet communication interface - for SR3 24V DC smart relay
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 2,307,636.00
    42.00 % Rp 3,978,684.00 2307636 IDR

    Rp 3,978,684.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 10
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Zelio Logic
    product or component type
    Ethernet communication module
    Complementary (see above)
    product compatibility
    All modules with 24 V supply SR3 B...BD
    communication port protocol
    Ethernet
    communication port support
    10/100BASE-T
    electrical connection
    1 connector RJ45
    programming language
    FBD
    connections - terminals
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) semi-solid
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) solid
    Screw terminals, 2 x 0.25...2 x 1.5 mm² (AWG 23...AWG 16) solid
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
    tightening torque
    0.5 N.m
    local signalling
    1 LED for communication (LK/ACT 10/100)
    1 LED for status (STS)
    net weight
    0.11 kg
    Environment (see above)
    product certifications
    CSA
    C-Tick
    GOST
    UL
    standards
    EN/IEC 61000-4-4 level 3
    EN/IEC 61000-4-5
    EN/IEC 61000-4-2 level 3
    EN/IEC 61000-4-3
    EN/IEC 60068-2-6 Fc
    EN/IEC 60068-2-27 Ea
    IP degree of protection
    IP20 (terminal block) conforming to IEC 60529
    IP40 (front panel) conforming to IEC 60529
    environmental characteristic
    EMC directive conforming to EN/IEC 61000-6-2
    EMC directive conforming to EN/IEC 61000-6-3
    EMC directive conforming to EN/IEC 61000-6-4
    EMC directive conforming to EN/IEC 61131-2 zone B
    Low voltage directive conforming to EN/IEC 61131-2
    disturbance radiated/conducted
    Class B conforming to EN 55022-11 group 1
    pollution degree
    2 conforming to EN/IEC 61131-2
    ambient air temperature for operation
    -20…40 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
    -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
    ambient air temperature for storage
    -40…70 °C
    operating altitude
    2000 m
    maximum altitude transport
    3048 m
    relative humidity
    95 % without condensation or dripping water
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    109 g
    Package 1 Height
    6 cm
    Package 1 width
    6.5 cm
    Package 1 Length
    11 cm
    Unit Type of Package 2
    S03
    Number of Units in Package 2
    48
    Package 2 Weight
    5.78 kg
    Package 2 Height
    30 cm
    Package 2 width
    30 cm
    Package 2 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    PVC free
    Yes
    Contractual warranty (see above)
    Warranty
    12 months
