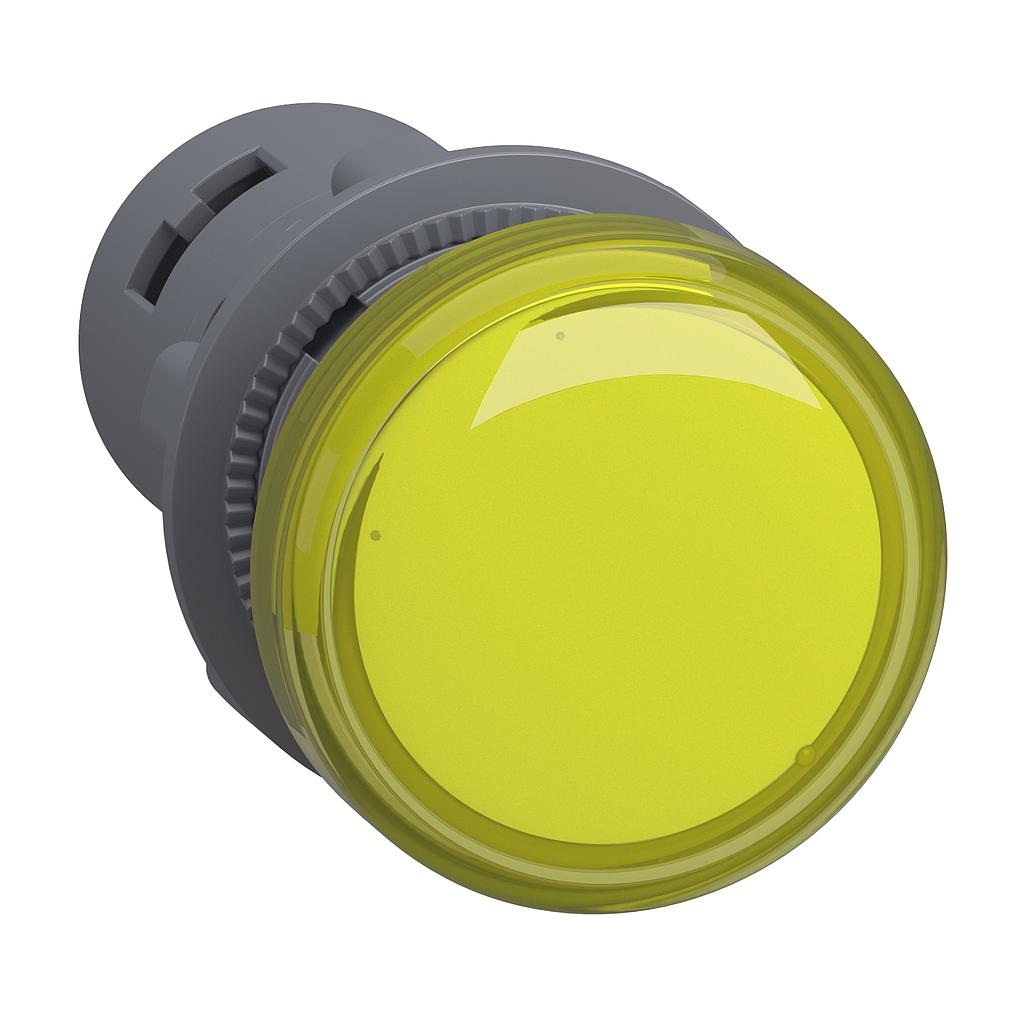

  4. Schneider Dia 22, pilot light, 110V AC, yellow

Schneider Dia 22, pilot light, 110V AC, yellow

Rp 60,139.00 Rp 31,873.00 31873 IDR

Rp 60,139.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Dia 22, pilot light, 110V AC, yellow
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 31,873.00
    47.00 % Rp 60,139.00 31873 IDR

    Rp 60,139.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 34
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony Easy XA2
    product or component type
    Monolithic pilot light
    device short name
    XA2
    mounting diameter
    22 mm
    shape of signaling unit head
    Round
    cap/operator or lens colour
    Yellow
    light source
    LED
    bulb base
    Integral LED
    [Us] rated supply voltage
    110 V AC 50/60 Hz
    Complementary (see above)
    height
    29 mm
    width
    29 mm
    depth
    53 mm
    terminals description ISO n°1
    (X1-X2)PL
    net weight
    0.02 kg
    device mounting
    Fixing hole 22.3 +0.4/0 conforming to EN/IEC 60947-5-1
    fixing center
    >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
    >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
    fixing mode
    Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m)
    marking
    CCC
    CE
    connections - terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    shape of screw head
    Cross compatible with Philips No 2 screwdriver
    Slotted compatible with flat Ø 4 mm screwdriver
    Slotted compatible with flat Ø 5.5 mm screwdriver
    [Ui] rated insulation voltage
    400 V (pollution degree 3) conforming to EN/IEC 60947-1
    [Uimp] rated impulse withstand voltage
    6 kV EN/IEC 60947-1
    signalling type
    Steady
    supply voltage limits
    0.8…1.2 V AC
    current consumption
    <= 20 mA
    service life
    40000 h at rated voltage and 25 °C
    compatibility code
    XA2E
    Environment (see above)
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -25…70 °C
    overvoltage category
    Class I conforming to IEC 536
    IP degree of protection
    IP65 (front face) conforming to IEC 60529
    IK degree of protection
    IK05 conforming to IEC 50102
    standards
    IEC 60947-5-1
    GB 14048.5
    GB 14048.1
    IEC 60947-1
    product certifications
    CCC
    CE
    vibration resistance
    5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    30 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    24 g
    Package 1 Height
    5.3 cm
    Package 1 width
    2.9 cm
    Package 1 Length
    2.9 cm
