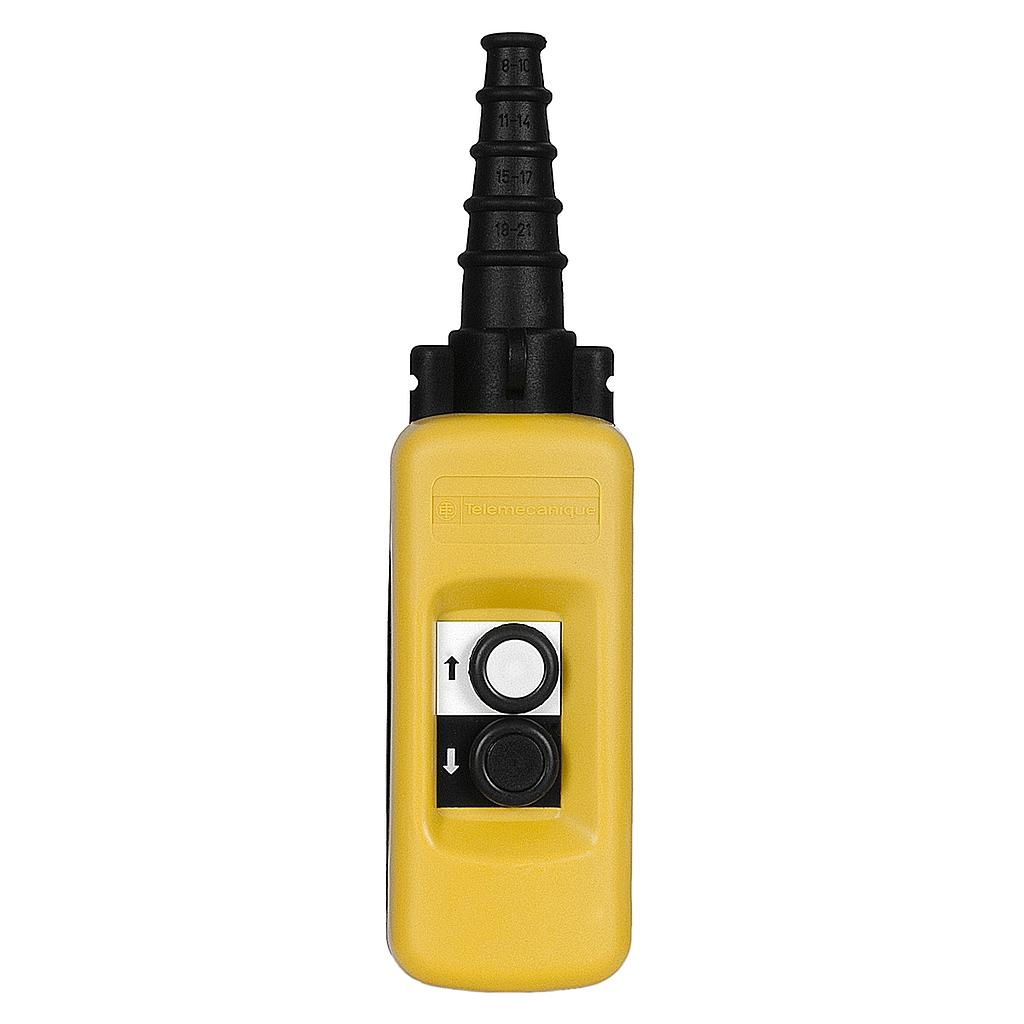

Schneider Pendant control station XAC-A - 2 pushbuttons

Rp 1,616,626.00 Rp 937,643.00 937643 IDR

Rp 1,616,626.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Pendant control station XAC-A - 2 pushbuttons
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 937,643.00
    42.00 % Rp 1,616,626.00 937643 IDR

    Rp 1,616,626.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XAC
    product or component type
    Pendant control station
    device short name
    XACA
    Complementary (see above)
    control station type
    Double insulated
    enclosure material
    Polypropylene
    electrical circuit type
    Control circuit
    enclosure type
    Complete ready for use
    control station application
    Control of single speed hoist motor
    control station composition
    2 push-buttons
    control button type
    First push-button 1 NC + 1 NO raise, slow
    Second push-button 1 NC + 1 NO lower, slow
    product compatibility
    ZB2BE102 + ZB2BE101 for each direction
    mechanical interlocking
    With mechanical interlocking
    control station colour
    Yellow
    connections - terminals
    Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
    Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end
    standards
    EN/IEC 60204-32
    EN/IEC 60947-5-1
    CSA C22.2 No 14
    UL 508
    product certifications
    CCC
    GOST
    protective treatment
    TH
    ambient air temperature for operation
    -25…70 °C
    ambient air temperature for storage
    -40…70 °C
    vibration resistance
    15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    100 gn conforming to IEC 60068-2-27
    overvoltage category
    Class II conforming to IEC 61140
    IP degree of protection
    IP65 conforming to IEC 60529
    IK degree of protection
    IK08 conforming to EN 50102
    mechanical durability
    1000000 cycles
    cable entry
    Rubber sleeve with stepped entry 8…26 mm
    contact code designation
    A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A
    A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A
    Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
    Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
    [Ithe] conventional enclosed thermal current
    10 A
    [Ui] rated insulation voltage
    600 V (pollution degree 3)
    [Uimp] rated impulse withstand voltage
    6 kV conforming to IEC 60947-1
    contact operation
    Slow-break
    maximum resistance across terminals
    25 MOhm
    operating force
    13 N push-button
    short-circuit protection
    10 A fuse protection by cartridge fuse type gG
    rated operational power in W
    40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
    48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
    65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
    terminals description ISO n°1
    (13-14)NO
    (11-12)NC
    terminal identifier
    (11-12)NC
    (13-14)NO
    net weight
    0.5 kg
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    540 g
    Package 1 Height
    8.5 cm
    Package 1 width
    9 cm
    Package 1 Length
    34.5 cm
    Unit Type of Package 2
    P06
    Number of Units in Package 2
    60
    Package 2 Weight
    45.4 kg
    Package 2 Height
    80 cm
    Package 2 width
    80 cm
    Package 2 Length
    60 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
