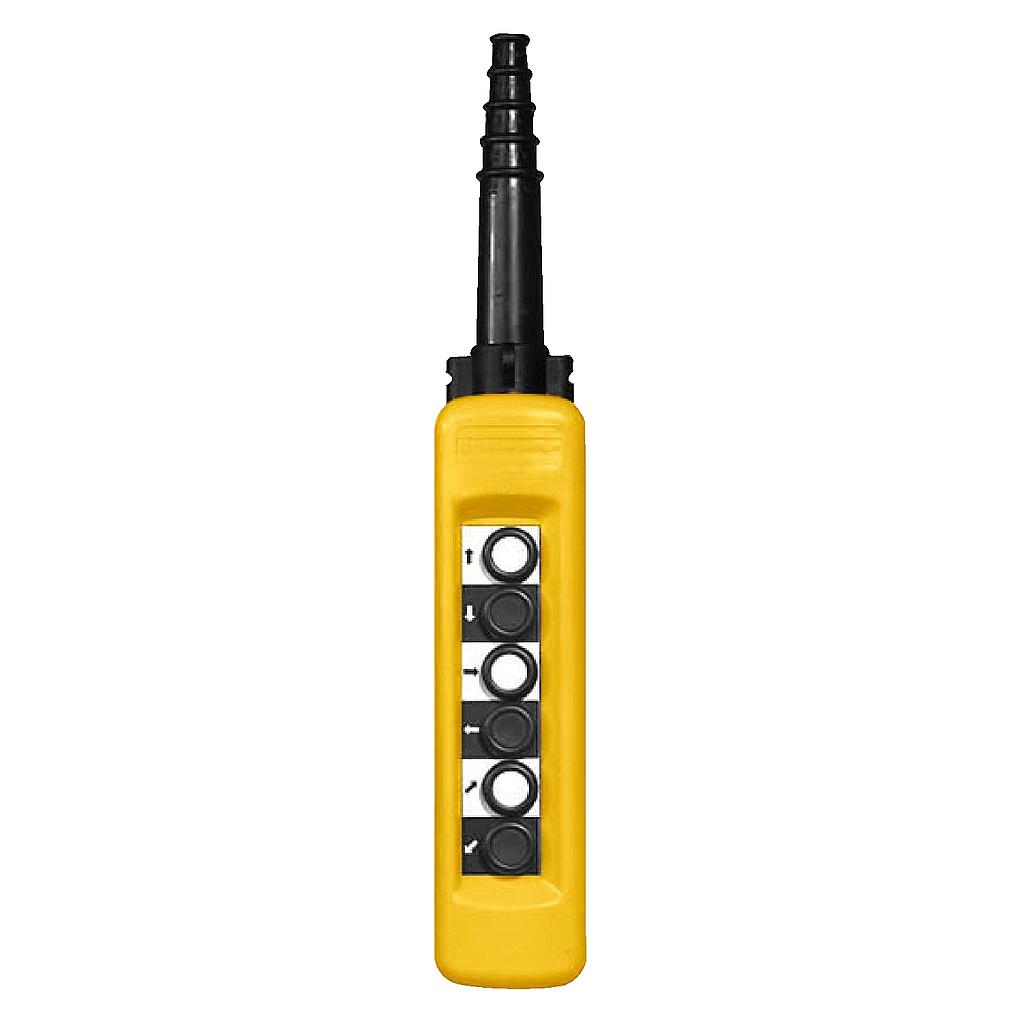

Schneider Pendant control station XAC-A - 6 pushbuttons

Rp 1,725,811.00 Rp 1,000,970.00 1000970 IDR

Rp 1,725,811.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Pendant control station XAC-A - 6 pushbuttons
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,000,970.00
    42.00 % Rp 1,725,811.00 1000970 IDR

    Rp 1,725,811.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XAC
    product or component type
    Pendant control station
    device short name
    XACA
    Complementary (see above)
    control station type
    Double insulated
    enclosure material
    Polypropylene
    electrical circuit type
    Control circuit
    enclosure type
    Complete ready for use
    control station application
    Control of single speed hoist motor
    control station composition
    6 push-buttons
    control button type
    First push-button 1 NC + 1 NO raise, slow
    product compatibility
    ZB2BE102 + ZB2BE101 for each direction
    mechanical interlocking
    With mechanical interlocking between pairs
    control station colour
    Yellow
    connections - terminals
    Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end
    standards
    CSA C22.2 No 14
    product certifications
    CSA
    protective treatment
    TH
    ambient air temperature for operation
    -25…70 °C
    ambient air temperature for storage
    -40…70 °C
    vibration resistance
    15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    100 gn conforming to IEC 60068-2-27
    overvoltage category
    Class II conforming to IEC 61140
    IP degree of protection
    IP65 conforming to IEC 60529
    IK degree of protection
    IK08 conforming to EN 50102
    mechanical durability
    1000000 cycles
    cable entry
    Rubber sleeve with stepped entry 8…26 mm
    contact code designation
    Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
    [Ithe] conventional enclosed thermal current
    10 A
    [Ui] rated insulation voltage
    500 V (pollution degree 3) conforming to IEC 60947-1
    [Uimp] rated impulse withstand voltage
    6 kV conforming to IEC 60947-1
    contact operation
    Slow-break
    maximum resistance across terminals
    25 MOhm
    operating force
    13 N push-button
    short-circuit protection
    10 A fuse protection by cartridge fuse type gG
    rated operational power in W
    40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C
    terminals description ISO n°1
    (11-12)NC
    terminal identifier
    (13-14)NO
    net weight
    0.95 kg
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    990 g
    Package 1 Height
    8.4 cm
    Package 1 width
    56.4 cm
    Package 1 Length
    8.8 cm
    Unit Type of Package 2
    S04
    Number of Units in Package 2
    12
    Package 2 Weight
    11.844 kg
    Package 2 Height
    30 cm
    Package 2 width
    40 cm
    Package 2 Length
    60 cm
    Unit Type of Package 3
    S06
    Number of Units in Package 3
    24
    Package 3 Weight
    36.688 kg
    Package 3 Height
    73.5 cm
    Package 3 width
    60 cm
    Package 3 Length
    80 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
