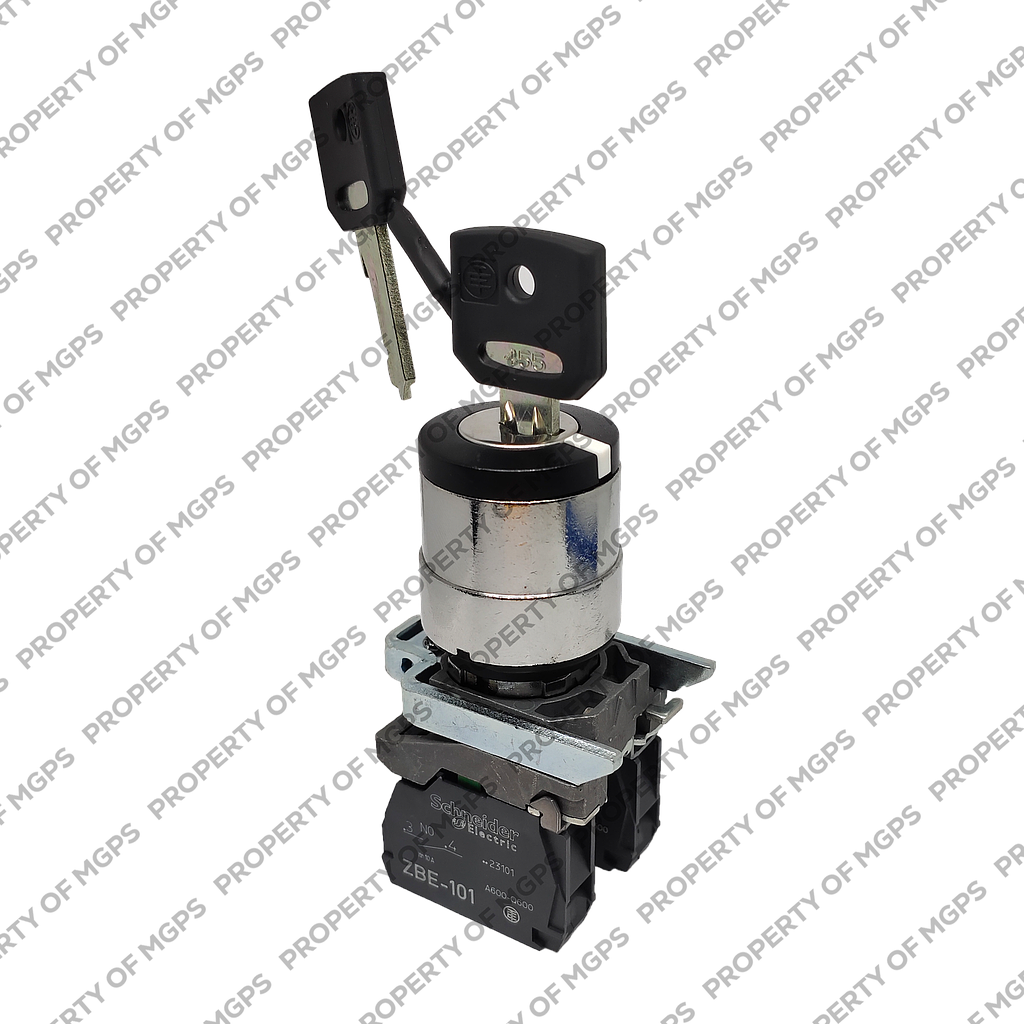

Schneider Black selector switch (D)22 3-position stay put 2NO 600V

Rp 604,234.00 Rp 350,455.00 350455 IDR

Rp 604,234.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Black selector switch (D)22 3-position stay put 2NO 600V
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 350,455.00
    42.00 % Rp 604,234.00 350455 IDR

    Rp 604,234.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 6
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of productHarmony XB4
    product or component typeSelector switch
    device short nameXB4
    bezel materialChromium plated metal
    fixing collar materialZamak
    mounting diameter0.87 in (22 mm)
    sale per indivisible quantity1
    head typeStandard
    shape of signaling unit headRound
    type of operatorStay put
    operator profileKey switch
    operator position information3 positions +/- 45°
    contacts type and composition2 NO
    contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1

    Complementary (see above)
    height1.85 in (47 mm)
    width1.18 in (30 mm)
    depth3.39 in (86 mm)
    terminals description ISO n°1(13-14)NO
    (23-24)NO
    Net Weight0.28 lb(US) (0.127 kg)
    resistance to high pressure washer1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    type of keylockRonis 455
    key withdrawal positionCenter
    contacts usageStandard contacts
    positive openingWithout
    torque value1.24 lbf.in (0.14 N.m) NO changing electrical state
    mechanical durability1000000 cycles
    tightening torque7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
    shape of screw headCross Philips no 1
    Cross pozidriv No 1
    Slotted flat Ø 4 mm
    Slotted flat Ø 5.5 mm
    contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse gG EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V 3)EN 60947-1
    [Uimp] rated impulse withstand voltage6 kV EN 60947-1
    [Ie] rated operational current3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
    6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
    0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
    0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
    0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
    1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
    Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    device presentationComplete product

    Environment (see above)
    protective treatmentTH
    ambient air temperature for storage-40…158 °F (-40…70 °C)
    ambient air temperature for operation-40…158 °F (-40…70 °C)
    overvoltage categoryClass I IEC 60536
    IP degree of protectionIP66 IEC 60529
    IP69
    IP69K
    IP67
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK06 IEC 50102
    standardsCSA C22.2 No 14
    EN/IEC 60947-5-4
    EN/IEC 60947-1
    EN/IEC 60947-5-5
    UL 508
    EN/IEC 60947-5-1
    JIS C8201-5-1
    JIS C8201-1
    product certificationsUL
    BV
    CSA
    LROS (Lloyds register of shipping)
    GL
    DNV
    vibration resistance5 gn 2…500 Hz)IEC 60068-2-6
    shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

    Ordering and shipping details (see above)
    Category22468 - PUSHBUTTONS,22MM(METAL) NEW
    Discount ScheduleCS2
    GTIN03389110887150
    Nbr. of units in pkg.1
    Package weight(Lbs)5.64 oz (160 g)
    ReturnabilityYes
    Country of originFR

    Packing Units (see above)
    Unit Type of Package 1PCE
    Package 1 Height3.39 in (8.6 cm)
    Package 1 width2.05 in (5.2 cm)
    Package 1 Length1.30 in (3.3 cm)
    Unit Type of Package 2BB1
    Number of Units in Package 25
    Package 2 Weight28.25 oz (801 g)
    Package 2 Height3.39 in (8.6 cm)
    Package 2 width1.30 in (3.3 cm)
    Package 2 Length10.24 in (26 cm)
    Unit Type of Package 3S02
    Number of Units in Package 350
    Package 3 Weight18.43 lb(US) (8.361 kg)
    Package 3 Height5.91 in (15 cm)
    Package 3 width11.81 in (30 cm)
    Package 3 Length15.75 in (40 cm)

    Offer Sustainability (see above)
    Sustainable offer statusGreen Premium product
    California proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACh RegulationREACh Declaration
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury freeYes
    RoHS exemption informationYes
    China RoHS RegulationChina RoHS declaration
    Environmental DisclosureProduct Environmental Profile
    Circularity ProfileEnd of Life Information
    WEEEThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

    Contractual warranty (see above)
    Warranty12 months
