  2. Signalling
  3. Push Button dan XA2 Series

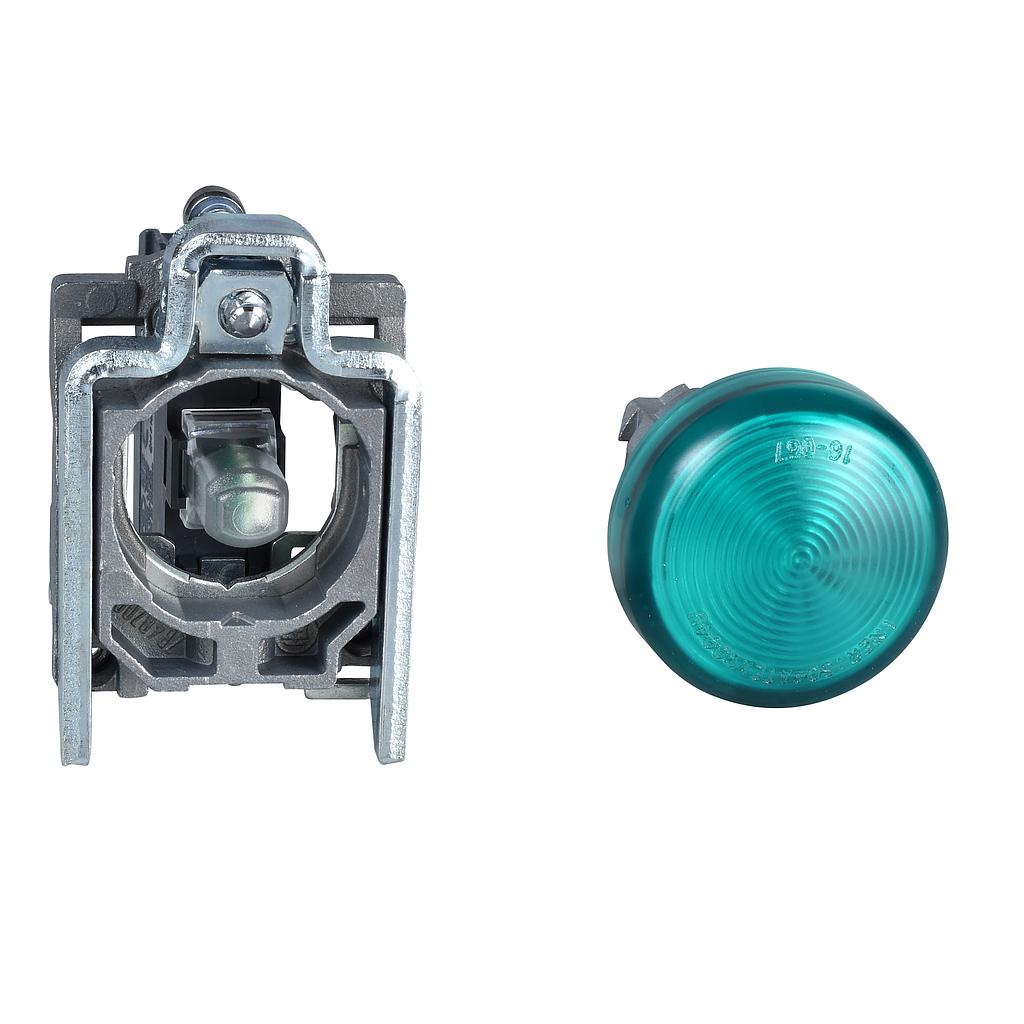

  4. Schneider Green complete pilot light (D)22 plain lens with BA9s bulb 250V

Schneider Green complete pilot light (D)22 plain lens with BA9s bulb 250V

Rp 368,142.00 Rp 213,522.00 213522 IDR

Rp 368,142.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Green complete pilot light (D)22 plain lens with BA9s bulb 250V
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 213,522.00
    42.00 % Rp 368,142.00 213522 IDR

    Rp 368,142.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XB4
    product or component type
    Pilot light
    device short name
    XB4
    bezel material
    Chromium plated metal
    fixing collar material
    Zamak
    head type
    Standard
    mounting diameter
    22 mm
    sale per indivisible quantity
    1
    shape of signaling unit head
    Round
    cap/operator or lens colour
    Green
    operator additional information
    With plain lens
    light source
    Bulb not included
    bulb base
    BA 9s
    light block supply
    Direct <2.4 W
    [Us] rated supply voltage
    <= 250 V
    Complementary (see above)
    height
    47 mm
    width
    30 mm
    depth
    55 mm
    terminals description ISO n°1
    (X1-X2)PL
    net weight
    0.075 kg
    resistance to high pressure washer
    7000000 Pa at 55 °C, distance : 0.1 m
    connections - terminals
    Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1
    [Ui] rated insulation voltage
    250 V (pollution degree 3) conforming to EN 60947-1
    [Uimp] rated impulse withstand voltage
    EN 60947-1 4 kV
    signalling type
    Steady
    device presentation
    Complete product
    Environment (see above)
    protective treatment
    TH
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -40…55 °C
    electrical shock protection class
    Class I conforming to IEC 60536
    IP degree of protection
    IP66 conforming to IEC 60529
    IP67
    IP69
    IP69K
    NEMA degree of protection
    NEMA 13
    NEMA 4X
    IK degree of protection
    IK06 conforming to IEC 50102
    standards
    CSA C22.2 No 14
    EN/IEC 60947-5-4
    JIS C8201-5-1
    EN/IEC 60947-5-1
    EN/IEC 60947-5-5
    EN/IEC 60947-1
    UL 508
    JIS C8201-1
    product certifications
    UL listed
    CSA
    vibration resistance
    5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    74 g
    Package 1 Height
    3.4 cm
    Package 1 width
    5.4 cm
    Package 1 Length
    8.8 cm
    Unit Type of Package 2
    BB1
    Number of Units in Package 2
    5
    Package 2 Weight
    1.37 kg
    Package 2 Height
    3.4 cm
    Package 2 width
    8.8 cm
    Package 2 Length
    26.5 cm
    Unit Type of Package 3
    S03
    Number of Units in Package 3
    150
    Package 3 Weight
    11.657 kg
    Package 3 Height
    30 cm
    Package 3 width
    30 cm
    Package 3 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
