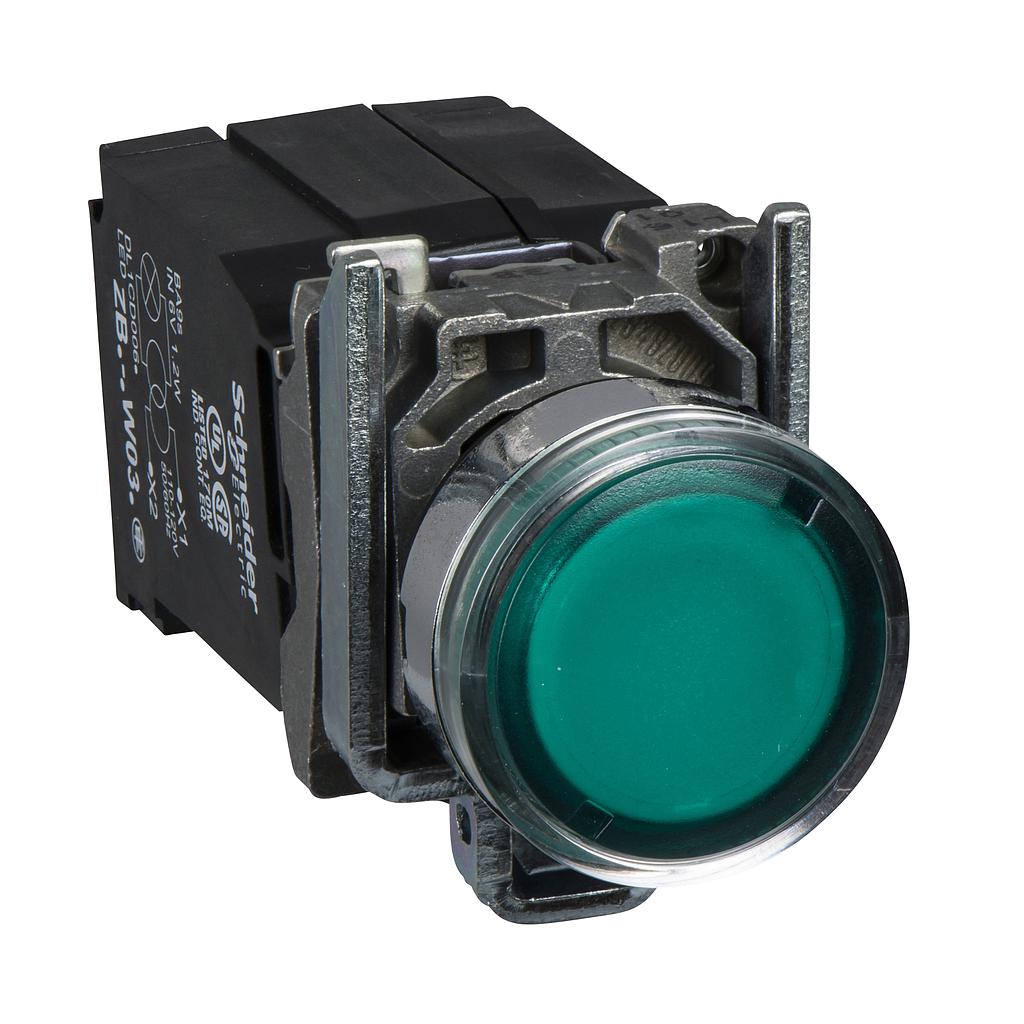

Schneider Green flush complete illum pushbutton (D)22 spring return 1NO+1NC 110...120V

Rp 591,657.00 Rp 343,161.00 343161 IDR

Rp 591,657.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Green flush complete illum pushbutton (D)22 spring return 1NO+1NC 110...120V
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 343,161.00
    42.00 % Rp 591,657.00 343161 IDR

    Rp 591,657.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of productHarmony XB4
    product or component typeIlluminated push-button
    device short nameXB4
    bezel materialChromium plated metal
    fixing collar materialZamak
    mounting diameter0.87 in (22 mm)
    sale per indivisible quantity1
    head typeStandard
    shape of signaling unit headRound
    type of operatorSpring return
    operator profileGreen flush
    operator additional informationWith plain lens
    contacts type and composition1 NO + 1 NC
    contact operationSlow-break
    connections - terminalsScrew clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1
    Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end EN/IEC 60947-1
    light sourceIncandescent
    bulb baseBA 9s
    light block supplyVia integral transformer 1.2 VA 6 V
    [Us] rated supply voltage110...120 V AC 50/60 Hz
    Complementary (see above)
    height1.85 in (47 mm)
    width1.18 in (30 mm)
    depth3.98 in (101 mm)
    terminals description ISO n°1(13-14)NO
    (21-22)NC
    Net Weight0.37 lb(US) (0.169 kg)
    resistance to high pressure washer1015.26 psi (7000000 Pa) 131 °F (55 °C) 0.1 m
    contacts usageStandard contacts
    positive openingWith EN/IEC 60947-5-1 appendix K
    operating travel0.06 in (1.5 mm) NC changing electrical state)
    0.10 in (2.6 mm) NO changing electrical state)
    0.17 in (4.3 mm) total travel)
    operating force3.5 N NC changing electrical state
    3.8 N
    mechanical durability10000000 cycles
    tightening torque7.08…10.62 lbf.in (0.8…1.2 N.m) EN 60947-1
    shape of screw headCross Philips no 1
    Cross compatible with pozidriv No 1 screwdriver
    Slotted flat Ø 4 mm
    Slotted flat Ø 5.5 mm
    contacts materialSilver alloy (Ag/Ni)
    short-circuit protection10 A cartridge fuse gG EN/IEC 60947-5-1
    [Ith] conventional free air thermal current10 A EN/IEC 60947-5-1
    [Ui] rated insulation voltage600 V 3)EN/IEC 60947-1
    [Uimp] rated impulse withstand voltage6 kV EN/IEC 60947-1
    [Ie] rated operational current3 A 240 V, AC-15, A600 EN/IEC 60947-5-1
    6 A 120 V, AC-15, A600 EN/IEC 60947-5-1
    0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1
    0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1
    0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1
    1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
    electrical durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
    electrical reliabilityΛ < 10exp(-6) 5 V 1 mA in clean environment EN/IEC 60947-5-4
    Λ < 10exp(-8) 17 V 5 mA in clean environment EN/IEC 60947-5-4
    signalling typeSteady
    device presentationComplete product
    Environment (see above)
    protective treatmentTH
    ambient air temperature for storage-40…158 °F (-40…70 °C)
    ambient air temperature for operation-40…131 °F (-40…55 °C)
    electrical shock protection classClass I IEC 60536
    IP degree of protectionIP66 IEC 60529
    IP67
    IP69
    IP69K
    NEMA degree of protectionNEMA 13
    NEMA 4X
    IK degree of protectionIK06 IEC 50102
    standardsEN/IEC 60947-5-1
    EN/IEC 60947-1
    EN/IEC 60947-5-4
    CSA C22.2 No 14
    JIS C8201-5-1
    EN/IEC 60947-5-5
    UL 508
    JIS C8201-1
    product certificationsGL
    BV
    CSA
    UL Listed
    DNV
    LROS (Lloyds register of shipping)
    vibration resistance5 gn 2…500 Hz)IEC 60068-2-6
    shock resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
    50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
    Ordering and shipping details (see above)
    Category22468 - PUSHBUTTONS,22MM(METAL) NEW
    Discount ScheduleCS2
    GTIN03389110887334
    Nbr. of units in pkg.1
    Package weight(Lbs)6.13 oz (173.9 g)
    ReturnabilityNo
    Country of originCZ
    Packing Units (see above)
    Unit Type of Package 1PCE
    Package 1 Height1.69 in (4.3 cm)
    Package 1 width2.09 in (5.3 cm)
    Package 1 Length5.04 in (12.8 cm)
    Offer Sustainability (see above)
    Sustainable offer statusGreen Premium product
    California proposition 65WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACh RegulationREACh Declaration
    REACh free of SVHCYes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury freeYes
    RoHS exemption informationYes
    China RoHS RegulationChina RoHS declaration
    Environmental DisclosureProduct Environmental Profile
    Circularity ProfileEnd of Life Information
    WEEEThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

    Contractual warranty (see above)
    Warranty12 months
