  4. Schneider CONTINUOUS ORINTERMITENT ILLUMINATED RE

Schneider CONTINUOUS ORINTERMITENT ILLUMINATED RE

Rp 837,411.00 Rp 443,827.00 443827 IDR

Rp 837,411.00

Option not available

    This combination does not exist.

    Add to Cart

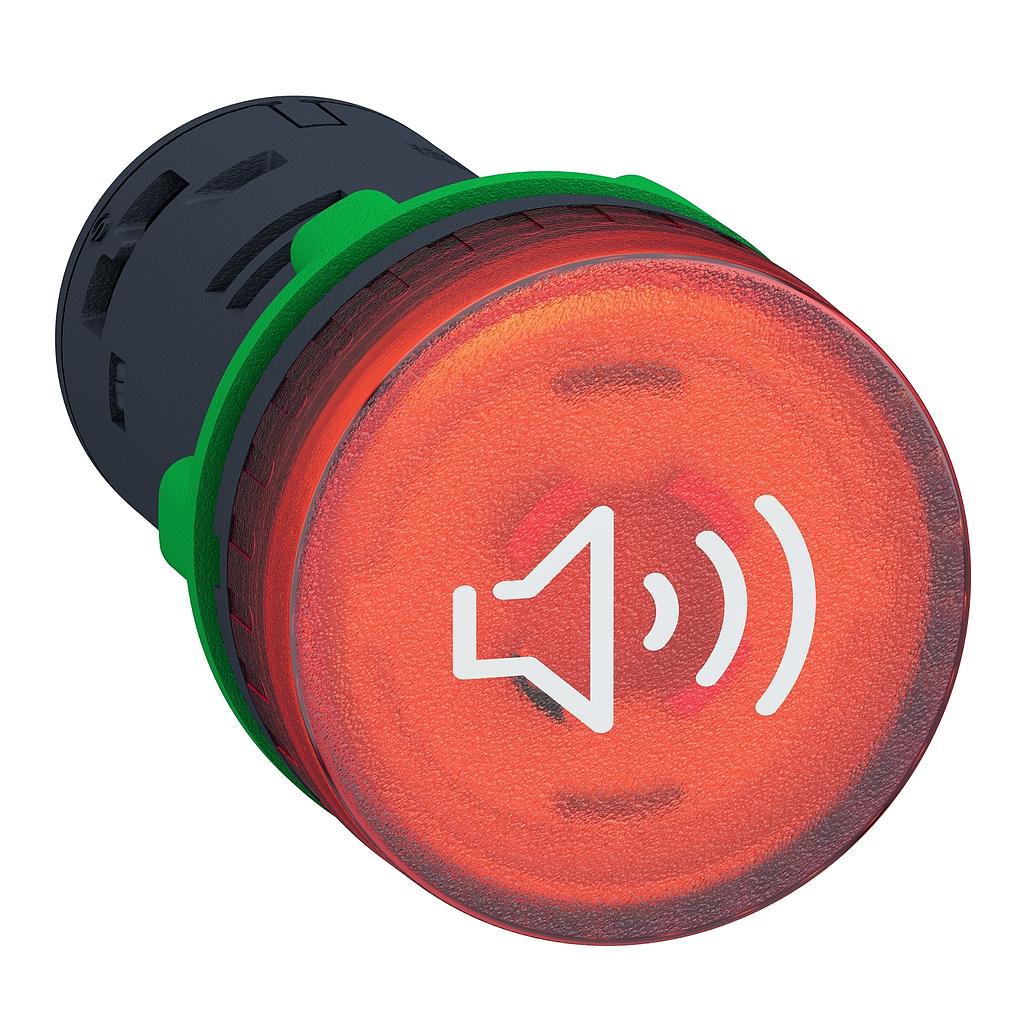

    Schneider CONTINUOUS ORINTERMITENT ILLUMINATED RE
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 443,827.00
    47.00 % Rp 837,411.00 443827 IDR

    Rp 837,411.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 19
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XB5
    bezel material
    Plastic
    product or component type
    Annunciator
    mounting diameter
    22 mm
    cap/operator or lens colour
    Red
    Complementary (see above)
    [Us] rated supply voltage
    24 V +/- 10 %
    supply circuit type
    AC/DC
    supply frequency
    50/60 Hz
    current consumption
    <= 58 mA
    signalling type
    Continuous or intermittent tone
    resistance to high pressure washer
    9000000 Pa at 80 °C, distance : 0.1 m
    height
    29 mm
    width
    29 mm
    depth
    55 mm
    net weight
    0.024 kg
    Environment (see above)
    noise level
    90 dB at 6.8 kHz distance 0.1 m (+/- 10 %)
    protective treatment
    TH
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -40…70 °C
    overvoltage category
    Class II conforming to IEC 60536
    IP degree of protection
    IP20 (rear face) conforming to IEC 60529
    IP66 conforming to IEC 60529
    IP67
    IP69
    IP69K
    NEMA degree of protection
    NEMA 4X
    NEMA 13
    IK degree of protection
    IK05 conforming to EN 50102
    IK03 conforming to IEC 50102
    standards
    CSA C22.2 No 14
    IEC 60947-5-1
    EN 60947-5-4
    JIS C8201-5-1
    EN 60947-1
    UL 508
    IEC 60947-5-4
    EN 60947-5-1
    IEC 60947-1
    JIS C8201-1
    product certifications
    UL listed
    CSA
    BV
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    27 g
    Package 1 Height
    3.3 cm
    Package 1 width
    3.4 cm
    Package 1 Length
    6 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
