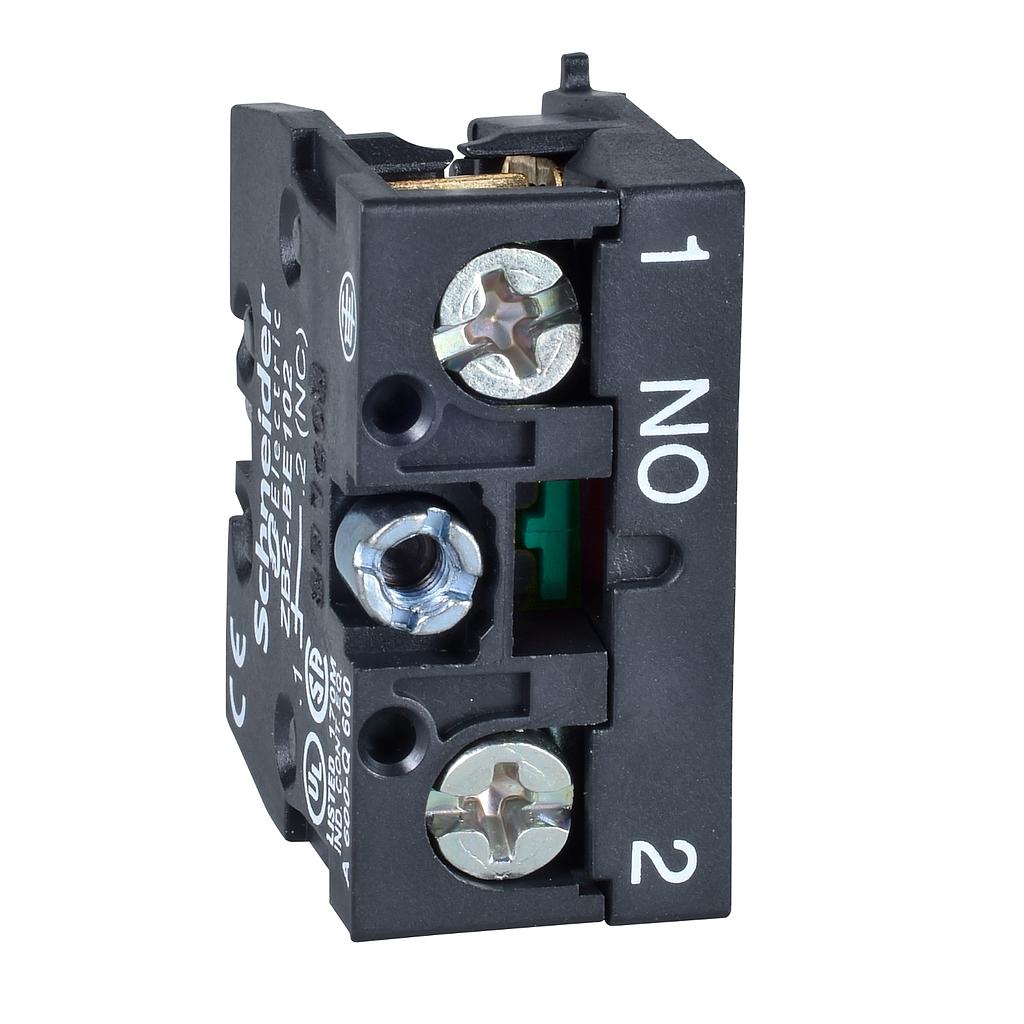

  4. Schneider CONTACT ELEMENT

Schneider CONTACT ELEMENT

Rp 78,316.00 Rp 45,423.00 45423 IDR

Rp 78,316.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider CONTACT ELEMENT
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 45,423.00
    42.00 % Rp 78,316.00 45423 IDR

    Rp 78,316.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 20
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XAC
    product or component type
    Contact block
    component name
    ZB2
    electrical circuit type
    Control circuit
    contact block application
    Single speed
    contact block type
    Single
    type of operator
    Spring return
    product compatibility
    XB4
    XAPS2
    XACA
    XB5
    contacts type and composition
    1 NO
    mounting of block
    Front mounting
    contact operation
    Slow-break
    Complementary (see above)
    connections - terminals
    Screw clamps terminals, 1 x 2.5 mm² with or without cable end
    Screw clamps terminals, 2 x 1.5 mm² with or without cable end
    mechanical durability
    1000000 cycles
    contact code designation
    A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 947-5-1 appendix A
    A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 947-5-1 appendix A
    Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 947-5-1 appendix A
    Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 947-5-1 appendix A
    [Ithe] conventional enclosed thermal current
    10 A
    [Ui] rated insulation voltage
    600 V (pollution degree 3) conforming to IEC 60947-1
    [Uimp] rated impulse withstand voltage
    IEC 60947-1 6 kV
    maximum resistance across terminals
    25 MOhm
    operating force
    13…15 N
    short-circuit protection
    10 A fuse protection by cartridge fuse type gG (gl)
    rated operational power in W
    40 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 120 V, load factor = 0.5 conforming to IEC 60947-5-1
    48 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 48 V, load factor = 0.5 conforming to IEC 60947-5-1
    65 W DC-13 for 1000000 cycles, operating rate <3600 cyc/h at 24 V, load factor = 0.5 conforming to IEC 60947-5-1
    terminals description ISO n°1
    (13-14)NO
    net weight
    0.02 kg
    Environment (see above)
    standards
    EN/IEC 60947-5-1
    UL 508
    EN/IEC 60204-32
    CSA C22.2 No 14
    ambient air temperature for operation
    -25…70 °C
    ambient air temperature for storage
    -40…70 °C
    vibration resistance
    15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
    shock resistance
    100 gn conforming to IEC 60068-2-27
    electrical shock protection class
    Class II conforming to IEC 61140
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    14 g
    Package 1 Height
    4 cm
    Package 1 width
    15 cm
    Package 1 Length
    10 cm
    Unit Type of Package 2
    BAG
    Number of Units in Package 2
    10
    Package 2 Weight
    149 g
    Package 2 Height
    4 cm
    Package 2 width
    8 cm
    Package 2 Length
    16 cm
    Unit Type of Package 3
    S01
    Number of Units in Package 3
    200
    Package 3 Weight
    3.121 kg
    Package 3 Height
    15 cm
    Package 3 width
    15 cm
    Package 3 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
