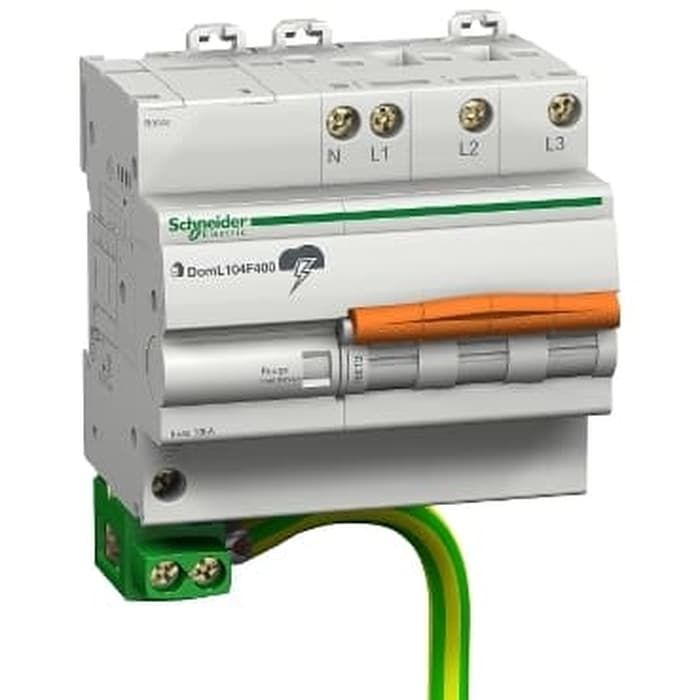

Schneider Domae Quick PF modular surge arrester - 3P+N - 275V

# of Pole : 3 Pole + N

Operating Voltage : 275V

Rp 0.00 Rp 0.00 0 IDR

Rp 0.00

Option not available

  • # of Pole
  • Operating Voltage

This combination does not exist.

Add to Cart

Schneider Domae Quick PF modular surge arrester - 3P+N - 275V
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 0.00
0.00 % Rp 0.00 0 IDR

Rp 0.00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 3 Pole + N

Operating Voltage : 275V

Spesifikasi
Main (see above)
range of product
Domae
product or component type
Surge arrester
device short name
Domae Quick PF
poles description
3P + N
remote signalling
Without
surge arrester type
Electrical distribution network
earthing system
TT
TN-S
Complementary (see above)
surge arrester class type
Type 2
surge arrester technology
MOV + GDT
local signalling
Optical indicator
[Ue] rated operational voltage
230/400 V +/- 10 % AC 50/60 Hz
[In] nominal discharge current
Differential mode: 5 kA (L/N)
Common mode: 20 kA (N/PE)
[Imax] maximum discharge current
Differential mode: 10 kA L/N
Common mode: 20 kA N/PE
[Uc] maximum continuous operating voltage
Common mode: 275 V N/PE
Differential mode: 275 V L/N
Common mode: 275 V L/PE
maximum [Up] voltage protection level
Common mode <1.5 kV type 2 N/PE
Differential mode <1.5 kV type 2 L/N
[Ut] temporary overvoltage
337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode
[If] follow current
0.1 kA common mode N/PE
local signalling
White/red flag
disconnector device type
Integrated circuit breaker - Icu 6 kA
[Isccr] short-circuit current rating
6 kA
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
10
height
106.8 mm
width
88.4 mm
depth
74.1 mm
net weight
540 g
colour
Grey (RAL 7035)
response time
<= 25 ns
connections - terminals
Tunnel type terminal (phase and neutral) 1 cable(s) 1…16 mm²
Tunnel type terminal (ground) 1 cable(s) 10…25 mm²
wire stripping length
13 mm
tightening torque
2 N.m
provided equipment
1 intermediary terminal block
Pre-fitted PE earth cable
Environment (see above)
standards
EN 61643-11:2012
IEC 61643-11:2011
quality labels
NF
IK degree of protection
IK03 conforming to IEC 62262
relative humidity
5…95 %
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-40…80 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
684 g
Package 1 Height
8 cm
Package 1 width
11.8 cm
Package 1 Length
15.3 cm
Unit Type of Package 2
S03
Number of Units in Package 2
14
Package 2 Weight
10.072 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Halogen content performance
Halogen free product
Contractual warranty (see above)
Warranty
12 months
