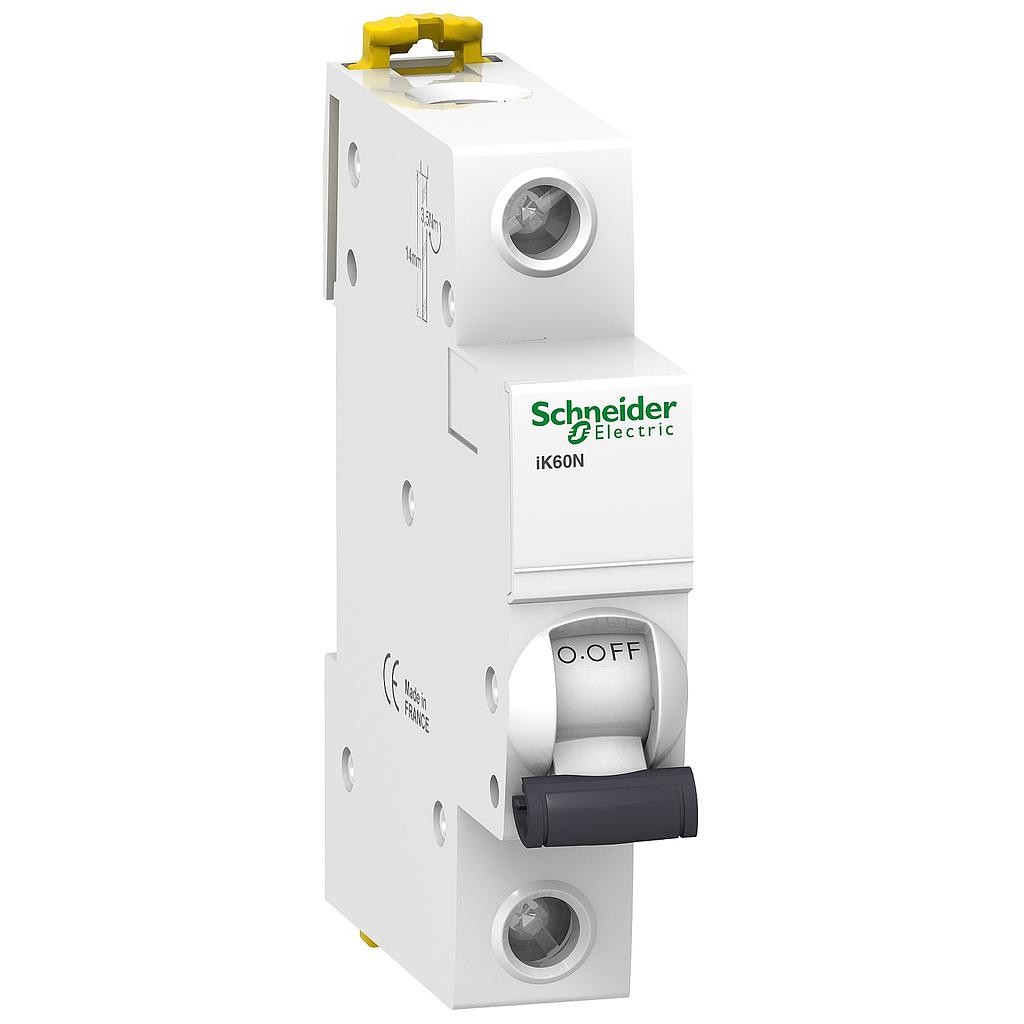

Schneider Electric MCB iK60N - Kurva C - 1P 2A - A9K24102 [Deskripsi] Direkomendasikan untuk spesifikasi kapasitas pemutusan 6 kA. - Kurva C (magnetis trip antara 5 dan 10 In dengan lebar modul per kutub 18mm. - Ketahanan elektrikal (Electrical Trip) 10.000 kali, dan ketahanan mekanikal (Mechanical Trip) 20.000 kali. - Koneksi kabel ke terminal : 2 sampai 25 A -> maksimum 16 mm2 kabel serabut atau 25 mm2 kabel tunggal. 32 sampai 63 A -> maksimum 25 mm2 kabel serabut atau 35 mm2 kabel tunggal. [Spesifikasi] 1. [In] rated current : 2 A at 30 C 2. network type : AC 3. trip unit technology : Thermal-magnetic 4. curve code : C 5. breaking capacity : 6000 A Icn conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz 6. suitability for isolation : Yes conforming to EN/IEC 60898-1 7. standards : EN/IEC 60898-1 8. product certifications : Aenor 9. network frequency : 50/60 Hz 10. magnetic tripping limit : 5...10 x In 11. [Ics] rated service breaking capacity : 6000 A 100 % x Icu conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz 12. limitation class : 3 conforming to EN/IEC 60898-1 13. [Ui] rated insulation voltage : 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 14. [Uimp] rated impulse withstand voltage : 4 kV conforming to EN/IEC 60898-1 15. control type : Toggle 16. local signalling : ON/OFF indication 17. mounting mode : Clip-on 18. mounting support : DIN rail 19. 9 mm pitches : 2 20. height : 85 mm 21. width : 18 mm 22. depth : 78.5 mm 23. product weight : 100 g 24. colour : White 25. mechanical durability : 20000 cycles 26. electrical durability : 10000 cycles 27. locking options description : Padlocking device 28. connections - terminals : Tunnel type terminal, top or bottom rigid wire(s) 1...25 mm max 29. wire stripping length : 14 mm top or bottom 30. tightening torque : 2 N.m top or bottom 31. earth-leakage protection : Without 32. contact position indicator : No
| device application | Distribution | |
|---|---|---|
| range | Acti 9 | |
| product name | Acti 9 iK60 | |
| product or component type | Miniature circuit-breaker | |
| device short name | IK60N | |
| poles description | 1P | |
| number of protected poles | 1 | |
| [In] rated current | 2 A at 30 °C | |
| network type | AC | |
| trip unit technology | Thermal-magnetic | |
| curve code | C | |
| breaking capacity | 6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
| suitability for isolation | Yes conforming to EN/IEC 60898-1 | |
| standards | EN/IEC 60898-1 | |
| product certifications | SNI |
| network frequency | 50/60 Hz | |
|---|---|---|
| magnetic tripping limit | 5...10 x In | |
| [Ics] rated service breaking capacity | 6000 A 100 % conforming to EN/IEC 60898-1 - 230 V AC 50/60 Hz | |
| limitation class | 3 conforming to EN/IEC 60898-1 | |
| [Ui] rated insulation voltage | 440 V AC 50/60 Hz conforming to EN/IEC 60898-1 | |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to EN/IEC 60898-1 | |
| contact position indicator | No | |
| control type | Toggle | |
| local signalling | ON/OFF indication | |
| mounting mode | Clip-on | |
| mounting support | DIN rail | |
| 9 mm pitches | 2 | |
| height | 85 mm | |
| width | 18 mm | |
| depth | 78.5 mm | |
| net weight | 100 g | |
| colour | White | |
| mechanical durability | 20000 cycles | |
| electrical durability | 10000 cycles | |
| locking options description | Padlocking device | |
| connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible | |
| wire stripping length | 14 mm for top or bottom connection | |
| tightening torque | 2 N.m top or bottom | |
| earth-leakage protection | Without |
| IP degree of protection | IP20 conforming to IEC 60529 | |
|---|---|---|
| pollution degree | 2 conforming to EN/IEC 60898-1 | |
| overvoltage category | II | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 111 g | |
| Package 1 Height | 1.8 cm | |
| Package 1 width | 7.5 cm | |
| Package 1 Length | 9.4 cm | |
| Unit Type of Package 2 | BB1 | |
| Number of Units in Package 2 | 12 | |
| Package 2 Weight | 1.391 kg | |
| Package 2 Height | 10 cm | |
| Package 2 width | 9 cm | |
| Package 2 Length | 22 cm | |
| Unit Type of Package 3 | S03 | |
| Number of Units in Package 3 | 132 | |
| Package 3 Weight | 15.788 kg | |
| Package 3 Height | 30 cm | |
| Package 3 width | 30 cm | |
| Package 3 Length | 40 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins | |
| Halogen content performance | Halogen free product |
| Warranty | 12 months |
|---|
Specifications for Schneider Acti 9 ACTI 9 IK60N 1P 2A 6KA KURVA C
| # of Pole | 1 |
| Arus Nominal (In) | 2A |
