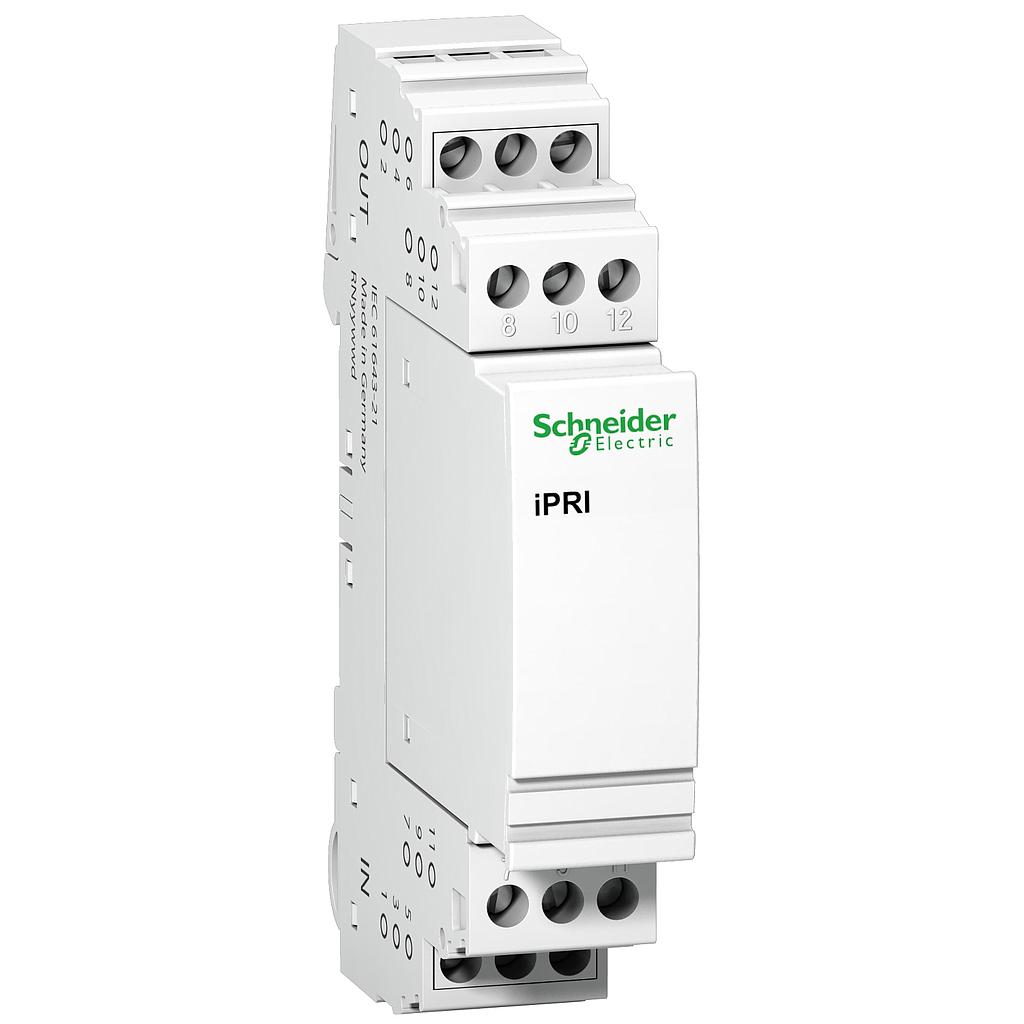

Schneider IPRI signal protection - 4 poles - 0.3A - 48 V
# of Pole : 4
Arus Nominal (In) : 0.3A
Operating Voltage : 48V
Schneider IPRI signal protection - 4 poles - 0.3A - 48 V
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 3,408,562.00
55.00 %
Rp 7,574,584.00
Rp 7,574,584.00
Option not available
Spesifikasi
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 iPRI | |
| device short name | IPRI | |
| product or component type | Surge arrester | |
| number of protected lines | 4 | |
| surge arrester type | Signal protection |
| remote signalling | Without | |
|---|---|---|
| surge arrester technology | GDT | |
| [In] rated current | 0.3 A at 45 °C | |
| [Ue] rated operational voltage | 48 V DC | |
| nominal discharge current | Common mode: 20 kA (L/PE) | |
| [Iimp] impulse current | 70 A | |
| [Uc] maximum continuous operating voltage | Common mode: 37 V AC L/PE Common mode: 53 V DC L/PE Differential mode: 37 V AC L/N Differential mode: 53 V DC L/N | |
| maximum [Up] voltage protection level | Common mode <70 V type 2 L/PE Differential mode <70 V type 2 L/N | |
| output voltage limits | Common mode: < 70 V at 1 kV/µs | |
| [I total] discharge current | 20 kA | |
| local signalling | electrical | |
| mounting mode | Fixed | |
| mounting support | 35 mm symmetrical DIN rail | |
| 9 mm pitches | 2 | |
| height | 90 mm | |
| width | 18 mm | |
| depth | 66 mm | |
| net weight | 65 g | |
| colour | White | |
| material | PA6 | |
| response time | < 1 ns | |
| connections - terminals | Screw clamp terminal0.2…4 mm² rigid Screw clamp terminal0.2…2.5 mm² flexible Screw clamp terminal0.2…2.5 mm² flexible with ferrule | |
| wire stripping length | 8 mm | |
| tightening torque | 0.8 N.m |
| standards | IEC 61643-21 EN 61643-21 | |
|---|---|---|
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529 IP20 conforming to IEC 60529 | |
| IK degree of protection | IK05 conforming to IEC 62262 | |
| relative humidity | 5…90 % | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 81 g | |
| Package 1 Height | 2 cm | |
| Package 1 width | 6.7 cm | |
| Package 1 Length | 9.5 cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 108 | |
| Package 2 Weight | 9.235 kg | |
| Package 2 Height | 30 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
Specifications for Schneider IPRI signal protection - 4 poles - 0.3A - 48 V
| General Information | |
|---|---|
| # of Pole | 4 |
| Arus Nominal (In) | 0.3A |
| Uncategorized | |
| Operating Voltage | 48V |
HOT PROMO
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 iPRI | |
| device short name | IPRI | |
| product or component type | Surge arrester | |
| number of protected lines | 4 | |
| surge arrester type | Signal protection |
| remote signalling | Without | |
|---|---|---|
| surge arrester technology | GDT | |
| [In] rated current | 0.3 A at 45 °C | |
| [Ue] rated operational voltage | 48 V DC | |
| nominal discharge current | Common mode: 20 kA (L/PE) | |
| [Iimp] impulse current | 70 A | |
| [Uc] maximum continuous operating voltage | Common mode: 37 V AC L/PE Common mode: 53 V DC L/PE Differential mode: 37 V AC L/N Differential mode: 53 V DC L/N | |
| maximum [Up] voltage protection level | Common mode <70 V type 2 L/PE Differential mode <70 V type 2 L/N | |
| output voltage limits | Common mode: < 70 V at 1 kV/µs | |
| [I total] discharge current | 20 kA | |
| local signalling | electrical | |
| mounting mode | Fixed | |
| mounting support | 35 mm symmetrical DIN rail | |
| 9 mm pitches | 2 | |
| height | 90 mm | |
| width | 18 mm | |
| depth | 66 mm | |
| net weight | 65 g | |
| colour | White | |
| material | PA6 | |
| response time | < 1 ns | |
| connections - terminals | Screw clamp terminal0.2…4 mm² rigid Screw clamp terminal0.2…2.5 mm² flexible Screw clamp terminal0.2…2.5 mm² flexible with ferrule | |
| wire stripping length | 8 mm | |
| tightening torque | 0.8 N.m |
| standards | IEC 61643-21 EN 61643-21 | |
|---|---|---|
| IP degree of protection | IP40 (modular enclosure) conforming to IEC 60529 IP20 conforming to IEC 60529 | |
| IK degree of protection | IK05 conforming to IEC 62262 | |
| relative humidity | 5…90 % | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 81 g | |
| Package 1 Height | 2 cm | |
| Package 1 width | 6.7 cm | |
| Package 1 Length | 9.5 cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 108 | |
| Package 2 Weight | 9.235 kg | |
| Package 2 Height | 30 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm |
| REACh Regulation | ||
|---|---|---|
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
