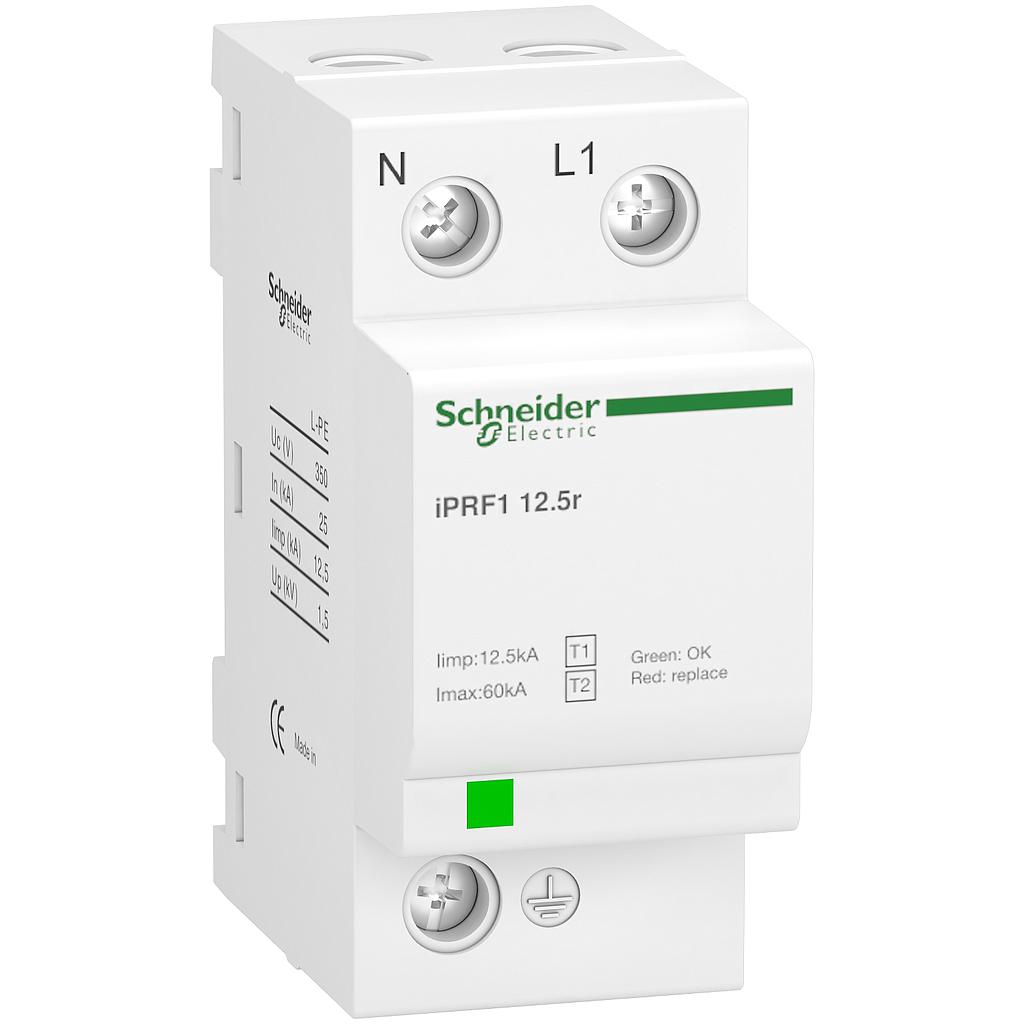

Schneider IPRF1 12.5r modular surge arrester - 1P + N - 350V - with remote transfert
# of Pole : 1 Pole + N
Operating Voltage : 350V
Schneider IPRF1 12.5r modular surge arrester - 1P + N - 350V - with remote transfert
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 0.00
0.00 %
Rp 0.00
Rp 0.00
Option not available
Spesifikasi
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 iPRF1 | |
| product or component type | Surge arrester | |
| device short name | IPRF1 12.5r | |
| device application | Distribution | |
| poles description | 1P + N | |
| remote signalling | With | |
| signal contacts composition | 1 SD (1 C/O) | |
| surge arrester type | Electrical distribution network | |
| earthing system | TN-S TT |
| surge arrester class type | Type 1 + 2 | |
|---|---|---|
| surge arrester technology | MOV + GDT | |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50 Hz | |
| [In] nominal discharge current | Differential mode: 25 kA (L/N) Common mode: 25 kA (N/PE) | |
| [Imax] maximum discharge current | 50 kA | |
| [Iimp] impulse current | Common mode: 50 kA N/PE 25 A.s Differential mode: 12.5 kA L/N 6.25 A.s | |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 350 V N/PE | |
| maximum [Up] voltage protection level | Common mode <1.5 kV type 1 N/PE Differential mode <1.5 kV type 1 L/N | |
| [If] follow current | 0.1 kA common mode N/PE | |
| disconnector device type | Associated circuit breaker NG125N 80 A curve C - Icu 15 kA Associated circuit breaker NG125N 80 A curve C - Icu 25 kA Associated circuit breaker NG125H 80 A curve C - Icu 36 kA Associated circuit breaker NG125L 80 A curve C - Icu 50 kA Associated fuse gG 160 A standard Associated circuit breaker C120N 80 A curve C - Icu 10 kA | |
| [Isccr] short-circuit current rating : double fault | 50 kA | |
| signalling circuit voltage | 1.5 A/250 V AC 50/60 Hz | |
| mounting mode | Clip-on | |
| mounting support | DIN rail | |
| 9 mm pitches | 4 | |
| height | 81.4 mm | |
| width | 36 mm | |
| depth | 71 mm | |
| net weight | 0.29 kg | |
| colour | White (RAL 9003) | |
| material | PA6 | |
| response time | <= 25 ns | |
| connections - terminals | Tunnel type terminal10…25 mm² flexible Tunnel type terminal10…35 mm² rigid | |
| tightening torque | 2.5 N.m |
| standards | EN 61643-11:2012 IEC 61643-11:2011 | |
|---|---|---|
| product certifications | CE | |
| IP degree of protection | IP40 on front face: conforming to IEC 60529 IP20 built-in: conforming to IEC 60529 | |
| IK degree of protection | IK05 conforming to IEC 62262 | |
| relative humidity | 5…95 % | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 314 g | |
| Package 1 Height | 4.6 cm | |
| Package 1 width | 9.5 cm | |
| Package 1 Length | 8.5 cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 48 | |
| Package 2 Weight | 15.681 kg | |
| Package 2 Height | 30 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
Specifications for Schneider IPRF1 12.5r modular surge arrester - 1P + N - 350V - with remote transfert
| General Information | |
|---|---|
| # of Pole | 1 Pole + N |
| Uncategorized | |
| Operating Voltage | 350V |
HOT PROMO
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 iPRF1 | |
| product or component type | Surge arrester | |
| device short name | IPRF1 12.5r | |
| device application | Distribution | |
| poles description | 1P + N | |
| remote signalling | With | |
| signal contacts composition | 1 SD (1 C/O) | |
| surge arrester type | Electrical distribution network | |
| earthing system | TN-S TT |
| surge arrester class type | Type 1 + 2 | |
|---|---|---|
| surge arrester technology | MOV + GDT | |
| [Ue] rated operational voltage | 230 V AC (+/- 10 %) at 50 Hz | |
| [In] nominal discharge current | Differential mode: 25 kA (L/N) Common mode: 25 kA (N/PE) | |
| [Imax] maximum discharge current | 50 kA | |
| [Iimp] impulse current | Common mode: 50 kA N/PE 25 A.s Differential mode: 12.5 kA L/N 6.25 A.s | |
| [Uc] maximum continuous operating voltage | Differential mode: 350 V L/N Common mode: 350 V N/PE | |
| maximum [Up] voltage protection level | Common mode <1.5 kV type 1 N/PE Differential mode <1.5 kV type 1 L/N | |
| [If] follow current | 0.1 kA common mode N/PE | |
| disconnector device type | Associated circuit breaker NG125N 80 A curve C - Icu 15 kA Associated circuit breaker NG125N 80 A curve C - Icu 25 kA Associated circuit breaker NG125H 80 A curve C - Icu 36 kA Associated circuit breaker NG125L 80 A curve C - Icu 50 kA Associated fuse gG 160 A standard Associated circuit breaker C120N 80 A curve C - Icu 10 kA | |
| [Isccr] short-circuit current rating : double fault | 50 kA | |
| signalling circuit voltage | 1.5 A/250 V AC 50/60 Hz | |
| mounting mode | Clip-on | |
| mounting support | DIN rail | |
| 9 mm pitches | 4 | |
| height | 81.4 mm | |
| width | 36 mm | |
| depth | 71 mm | |
| net weight | 0.29 kg | |
| colour | White (RAL 9003) | |
| material | PA6 | |
| response time | <= 25 ns | |
| connections - terminals | Tunnel type terminal10…25 mm² flexible Tunnel type terminal10…35 mm² rigid | |
| tightening torque | 2.5 N.m |
| standards | EN 61643-11:2012 IEC 61643-11:2011 | |
|---|---|---|
| product certifications | CE | |
| IP degree of protection | IP40 on front face: conforming to IEC 60529 IP20 built-in: conforming to IEC 60529 | |
| IK degree of protection | IK05 conforming to IEC 62262 | |
| relative humidity | 5…95 % | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…80 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 314 g | |
| Package 1 Height | 4.6 cm | |
| Package 1 width | 9.5 cm | |
| Package 1 Length | 8.5 cm | |
| Unit Type of Package 2 | S03 | |
| Number of Units in Package 2 | 48 | |
| Package 2 Weight | 15.681 kg | |
| Package 2 Height | 30 cm | |
| Package 2 width | 30 cm | |
| Package 2 Length | 40 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
