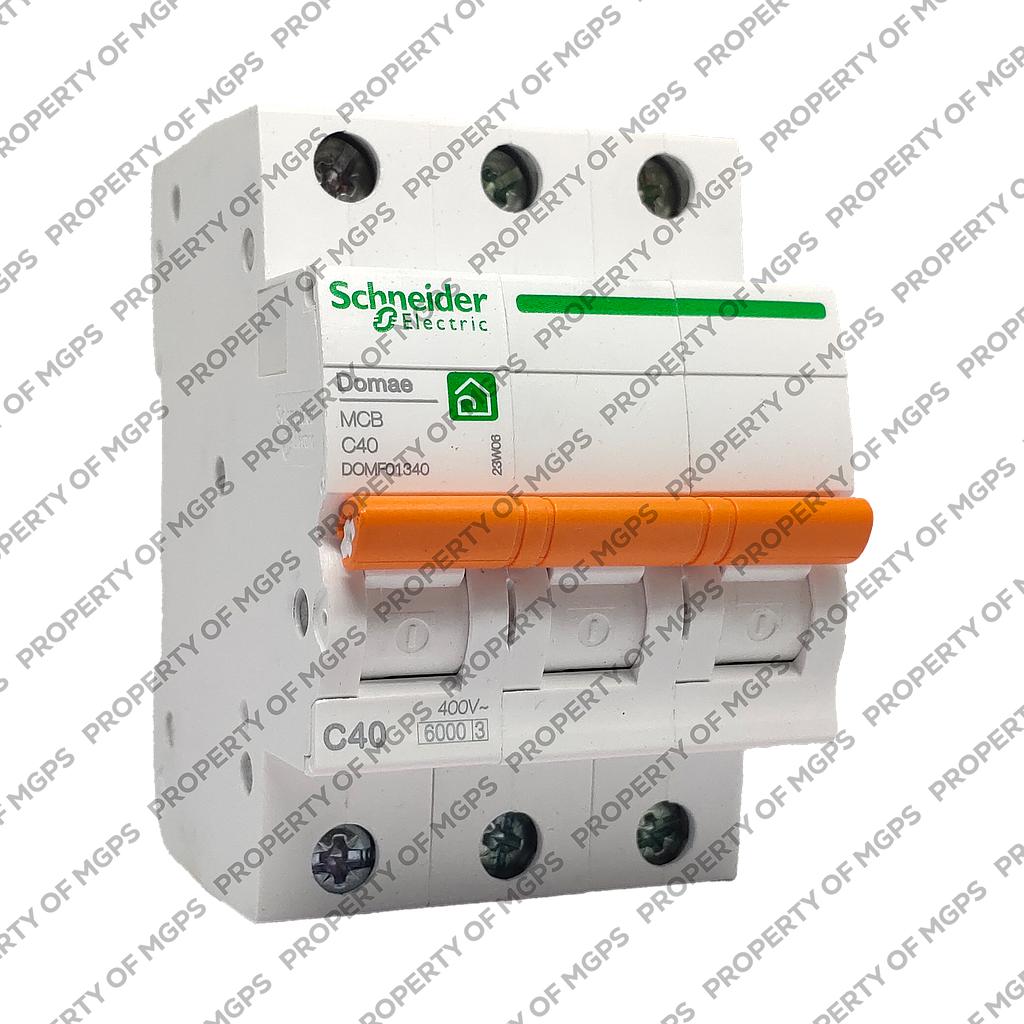

Schneider MCB DOMAE 3P 40A 6KA

# of Pole : 3

Arus Nominal (In) : 40A

Rp 629.925,00 Rp 459.845,00 459845 IDR

Rp 629.925,00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider MCB DOMAE 3P 40A 6KA
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 459.845,00
27.00 % Rp 629.925,00 459845 IDR

Rp 629.925,00

Option not available

Atur Jumlah & Catatan
Stock Total: 371

# of Pole : 3

Arus Nominal (In) : 40A

Spesifikasi
Main (see above)
range
Domae
product or component type
Miniature circuit-breaker
device short name
Domae MCB
device application
Protection
poles description
3P
number of protected poles
3
[In] rated current
40 A
network type
AC
trip unit technology
Thermal-magnetic
curve code
C
breaking capacity
Icn 6000 A
quality labels
CE
Complementary (see above)
network frequency
50/60 Hz
[Ue] rated operational voltage
400 V AC 50/60 Hz
magnetic tripping limit
5...10 x In
control type
Toggle
mounting mode
Clip-on
mounting support
DIN rail
comb busbar and distribution block compatibility
YES
9 mm pitches
6
height
81 mm
width
54 mm
depth
71.5 mm
net weight
0.285 kg
colour
White
mechanical durability
20000 cycles
electrical durability
10000 cycles
connections - terminals
Tunnel type terminals (top or bottom) - 1...35 mm² - rigid
Tunnel type terminals (top or bottom) - 1...25 mm² - flexible
wire stripping length
14 mm for top or bottom connection
tightening torque
3.5 N.m top or bottom
earth-leakage protection
Without
Environment (see above)
standards
IEC 60898-1
product certifications
SNI
IP degree of protection
IP20 conforming to IEC 60529
IP40 (modular enclosure) conforming to IEC 60529
overvoltage category
III
tropicalisation
2 conforming to IEC 60068-1
relative humidity
95 % at 55 °C
ambient air temperature for operation
-5…60 °C
ambient air temperature for storage
-40…85 °C
Offer Sustainability (see above)
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Specifications for Schneider MCB DOMAE 3P 40A 6KA

# of Pole 3
Arus Nominal (In) 40A
