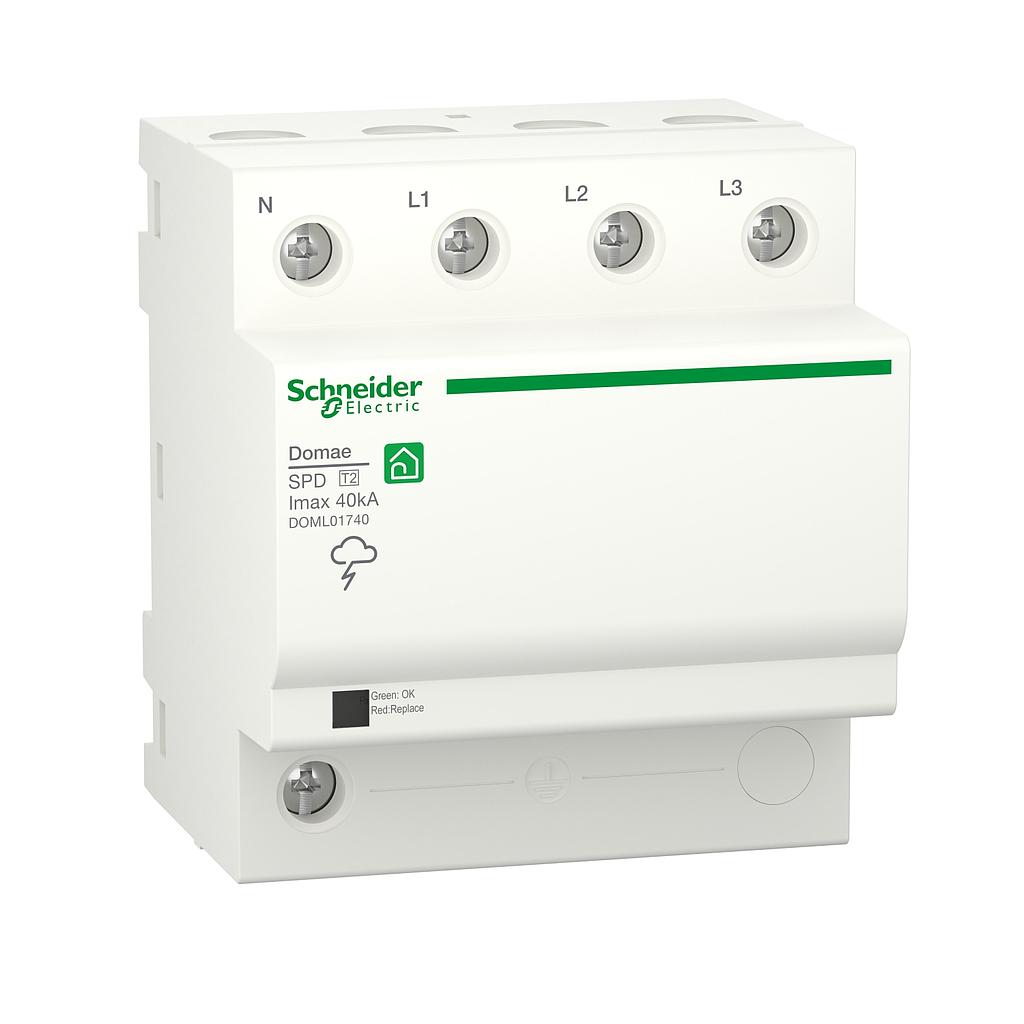

Schneider NEW DOMAE QUICK PF 40 KA 3P+N

Rp 1,668,646.00 Rp 1,184,738.00 1184738 IDR

Rp 1,668,646.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider NEW DOMAE QUICK PF 40 KA 3P+N
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 1,184,738.00
    29.00 % Rp 1,668,646.00 1184738 IDR

    Rp 1,668,646.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 33
    Spesifikasi
    Main (see above)
    range of product
    Domae
    product or component type
    Surge arrester
    poles description
    3P + N
    earthing system
    TT
    TN-S
    TN-C
    device application
    Residential
    product destination
    Surge protection device
    Complementary (see above)
    surge arrester class type
    Type 2
    surge arrester technology
    MOV + GDT
    [Ue] rated operational voltage
    230/400 V +/- 10 % AC 50/60 Hz
    [In] nominal discharge current
    15 kA
    [Imax] maximum discharge current
    40 kA
    [Uc] maximum continuous operating voltage
    Common mode: 340 V L/PE
    Common mode: 260 V N/PE
    Differential mode: 340 V L/N
    maximum [Up] voltage protection level
    <1.5 kV type 2
    [Ut] temporary overvoltage
    337 V L/N 5 s withstand
    442 V L/PE 5 s withstand
    1200 V N/PE 200 ms withstand
    1453 V L/PE 200 ms withstand
    disconnector device type
    Circuit breaker Domae MCB 20 A curve C
    [Isccr] short-circuit current rating
    6 kA
    local signalling
    Operating state: flag (green)
    Fault indication: flag (red)
    mounting mode
    Clip-on
    mounting support
    DIN rail
    9 mm pitches
    8
    height
    81 mm
    width
    72 mm
    depth
    63 mm
    net weight
    420 kg
    colour
    White
    response time
    < 25 ns
    maximum residual current
    0.003 mA N/PE
    connections - terminals
    Tunnel type terminals (phase and neutral) 1…25 mm²
    Tunnel type terminals (ground) 1…50 mm²
    wire stripping length
    11 mm
    tightening torque
    2 N.m phase and neutral
    3.5 N.m earth
    Environment (see above)
    standards
    EN 61643-11:2011
    product certifications
    SNI
    IP degree of protection
    IP20
    IP40 on enclosure
    ambient air temperature for operation
    -25…60 °C
    ambient air temperature for storage
    -40…70 °C
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
