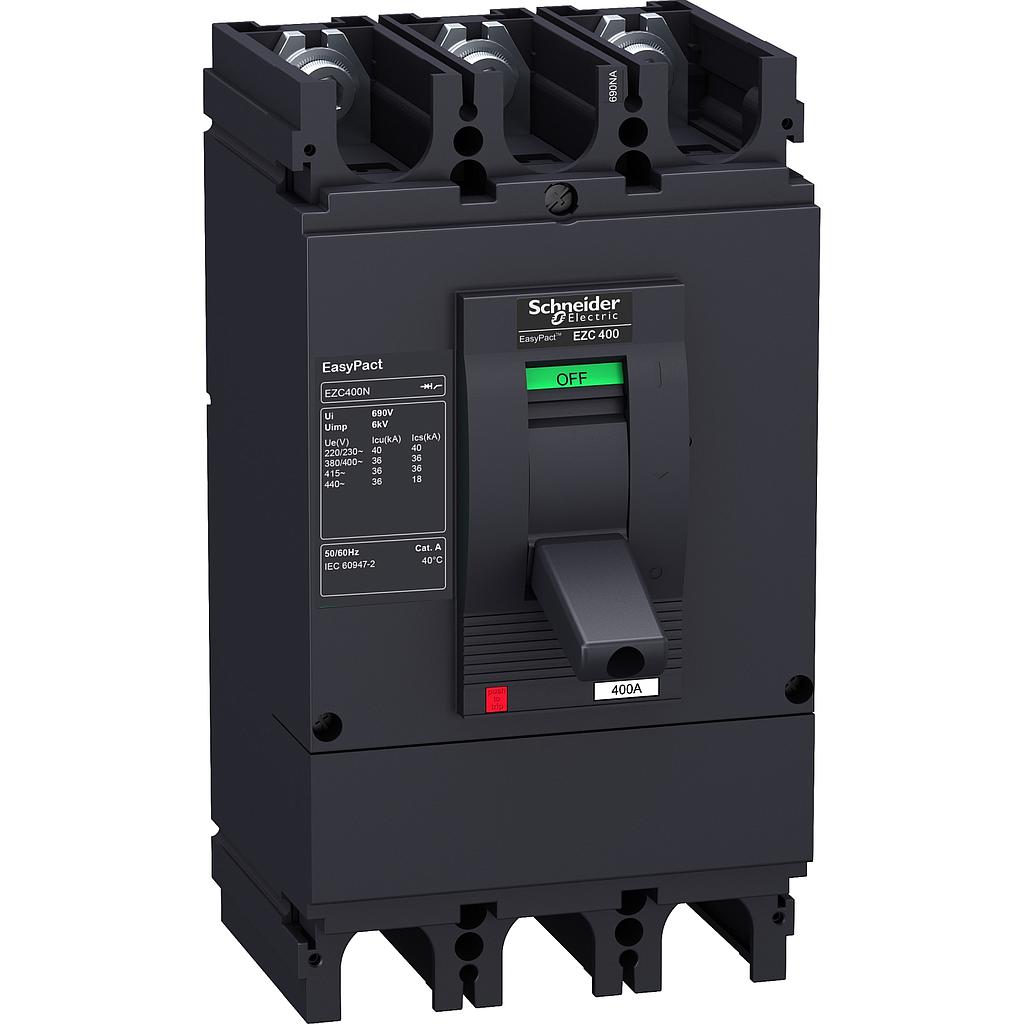

  4. Schneider Circuit breaker Easypact EZC400H - TMD - 400 A - 3 poles 3d

Schneider Circuit breaker Easypact EZC400H - TMD - 400 A - 3 poles 3d

# of Pole : 3

Arus Nominal (In) : 400A

Rp 7,235,945.00 Rp 3,762,691.00 3762691 IDR

Rp 7,235,945.00

Option not available

  • # of Pole
  • Arus Nominal (In)

This combination does not exist.

Add to Cart

Schneider Circuit breaker Easypact EZC400H - TMD - 400 A - 3 poles 3d
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 3,762,691.00
48.00 % Rp 7,235,945.00 3762691 IDR

Rp 7,235,945.00

Option not available

Atur Jumlah & Catatan
Stock Total: 7

# of Pole : 3

Arus Nominal (In) : 400A

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range of product
EasyPact
product or component type
Circuit breaker
device short name
Easypact EZC400H
circuit breaker name
Easypact EZC400H
device application
Distribution
poles description
3P
protected poles description
3t
network type
DC
AC
network frequency
50/60 Hz
[In] rated current
400 A at 40 °C
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947-2
[Ue] rated operational voltage
250 V DC conforming to IEC 60947-2
440 V AC 50/60 Hz conforming to IEC 60947-2
breaking capacity code
H
breaking capacity
50 kA Icu at 380 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 400...415 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service breaking capacity
25 kA at 380 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
25 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
35 kA at 220/230 V AC 50/60 Hz conforming to IEC 60947-2
suitability for isolation
Yes conforming to IEC 60947-2
utilisation category
Category A
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit rating
400 A at 50 °C
protection type
Short-circuit protection
Overload protection
pollution degree
3 conforming to IEC 60947
Complementary (see above)
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
mechanical durability
10000 cycles
electrical durability
Category A: 3000 cycles 415 V AC 50/60 Hz conforming to IEC 60947-2
connection pitch
45 mm
local signalling
Positive contact indication
contact position indicator
Yes
magnetic tripping current
4000 A
neutral protection setting
Without protection
long time pick-up adjustment type Ir
Fixed
long time delay adjustment type
Fixed
earth-leakage protection
Without
height
255 mm
width
185 mm
depth
140 mm
net weight
6.4 kg
quantity per set
1 piece
colour
Black
Environment (see above)
standards
JIS C8201-2-2
EN/IEC 60947-2
GB/T 14048.2
EN/IEC 60947-1
IP degree of protection
IP20 conforming to IEC 60529
IK degree of protection
IK07 conforming to EN 50102
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-35…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
5.319 kg
Package 1 Height
15 cm
Package 1 width
16 cm
Package 1 Length
29 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
PVC free
Yes
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider Circuit breaker Easypact EZC400H - TMD - 400 A - 3 poles 3d

# of Pole 3
Arus Nominal (In) 400A
