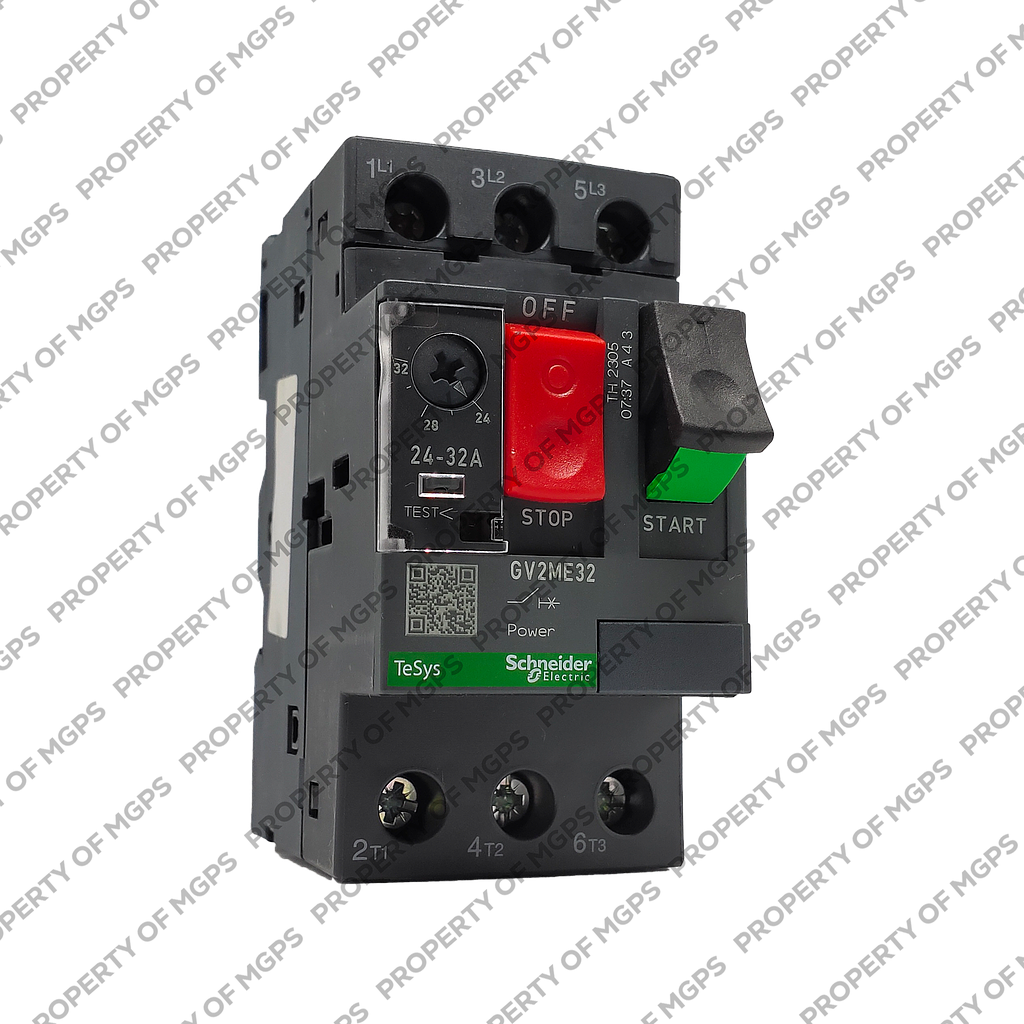

Schneider Tesys GV2 Motor circuit breaker, TeSys GV2, 3P, 24-32 A, thermal magnetic, screw clamp terminals

# of Pole : 3

Arus Pengenal (A) : 32A

Rp 2.193.360,00 Rp 1.228.281,00 1228281 IDR

Rp 2.193.360,00

Option not available

  • # of Pole
  • Arus Pengenal (A)

This combination does not exist.

Add to Cart

Schneider Tesys GV2 Motor circuit breaker, TeSys GV2, 3P, 24-32 A, thermal magnetic, screw clamp terminals
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1.228.281,00
44.00 % Rp 2.193.360,00 1228281 IDR

Rp 2.193.360,00

Option not available

Atur Jumlah & Catatan
Stock Total: 66

# of Pole : 3

Arus Pengenal (A) : 32A

Spesifikasi

Schneider Electric Tesys GV2M Motor Protection Circuit Breaker 690 V, 3P Channels, 24 → 32 A - GV2ME32 Thermal Magnetic Motor Circuit Breaker sudah dilengkapi dengan fungsi proteksi Relay thermal kelas 10 yang memungkinkan untuk melindungi motor dari gangguan beban lebih tanpa memerlukan tambahan komponen Relay thermal (cukup asosiasi 2 komponen saja) sehingga memberikan keuntungan berupa: - LEBIH HEMAT BIAYA - LEBIH SEDIKIT PRODUK yang perlu di-maintenance, serta - LEBIH HEMAT TEMPAT sehingga memerlukan dimensi panel yang lebih kecil Spesifikasi: Current Range: 24 → 32A Number of Poles: 3P Terminal Type: Screw Voltage Rating: 690 V Length: 89mm Width: 44.5mm Depth: 78.2mm Weight: 260gram


Main (see above)
range
TeSys
product name
TeSys GV2
product or component type
Circuit breaker
device short name
GV2ME
device application
Motor
trip unit technology
Thermal-magnetic
Complementary (see above)
poles description
3P
network type
AC
utilisation category
AC-3 conforming to IEC 60947-4-1
Category A conforming to IEC 60947-2
network frequency
50/60 Hz conforming to IEC 60947-4-1
fixing mode
35 mm symmetrical DIN rail: clipped
Panel: screwed (with adaptor plate)
operating position
Any position
motor power kW
15 kW at 400/415 V AC 50/60 Hz
18.5 kW at 500 V AC 50/60 Hz
22 kW at 690 V AC 50/60 Hz
breaking capacity
3 kA Icu at 690 V AC 50/60 Hz conforming to IEC 60947-2
50 kA Icu at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
6 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
4 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
10 kA Icu at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
[Ics] rated service short-circuit breaking capacity
100 % at 230/240 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 690 V AC 50/60 Hz conforming to IEC 60947-2
75 % at 500 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 400/415 V AC 50/60 Hz conforming to IEC 60947-2
50 % at 440 V AC 50/60 Hz conforming to IEC 60947-2
control type
Push-button
[In] rated current
32 A
thermal protection adjustment range
24…32 A
magnetic tripping current
416 A
[Ue] rated operational voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ui] rated insulation voltage
690 V AC 50/60 Hz conforming to IEC 60947-2
[Ith] conventional free air thermal current
32 A conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage
IEC 60947-2 6 kV
power dissipation per pole
2.5 W
mechanical durability
100000 cycles
electrical durability
100000 cycles for AC-3 at 440 V
maximum operating rate
25 cyc/h
rated duty
Continuous conforming to IEC 60947-4-1
tightening torque
1.7 N.m on screw clamp terminals
suitability for isolation
Yes conforming to IEC 60947-1
phase failure sensitivity
Yes conforming to IEC 60947-4-1
height
89 mm
width
45 mm
depth
78.5 mm
net weight
0.26 kg
Environment (see above)
standards
EN/IEC 60947-2
EN/IEC 60947-4-1
CSA C22.2 No 60947-4-1
UL 60947-4-1
product certifications
IECEE CB Scheme
UL
CSA
CCC
EAC
ATEX
BV
LROS (Lloyds register of shipping)
DNV-GL
RINA
protective treatment
TH
IP degree of protection
IP20 conforming to IEC 60529
IK degree of protection
IK04
ambient air temperature for operation
-20…60 °C
ambient air temperature for storage
-40…80 °C
fire resistance
960 °C conforming to IEC 60695-2-1
operating altitude
2000 m
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
281.25 g
Package 1 Height
4.5 cm
Package 1 width
8.5 cm
Package 1 Length
9 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months
