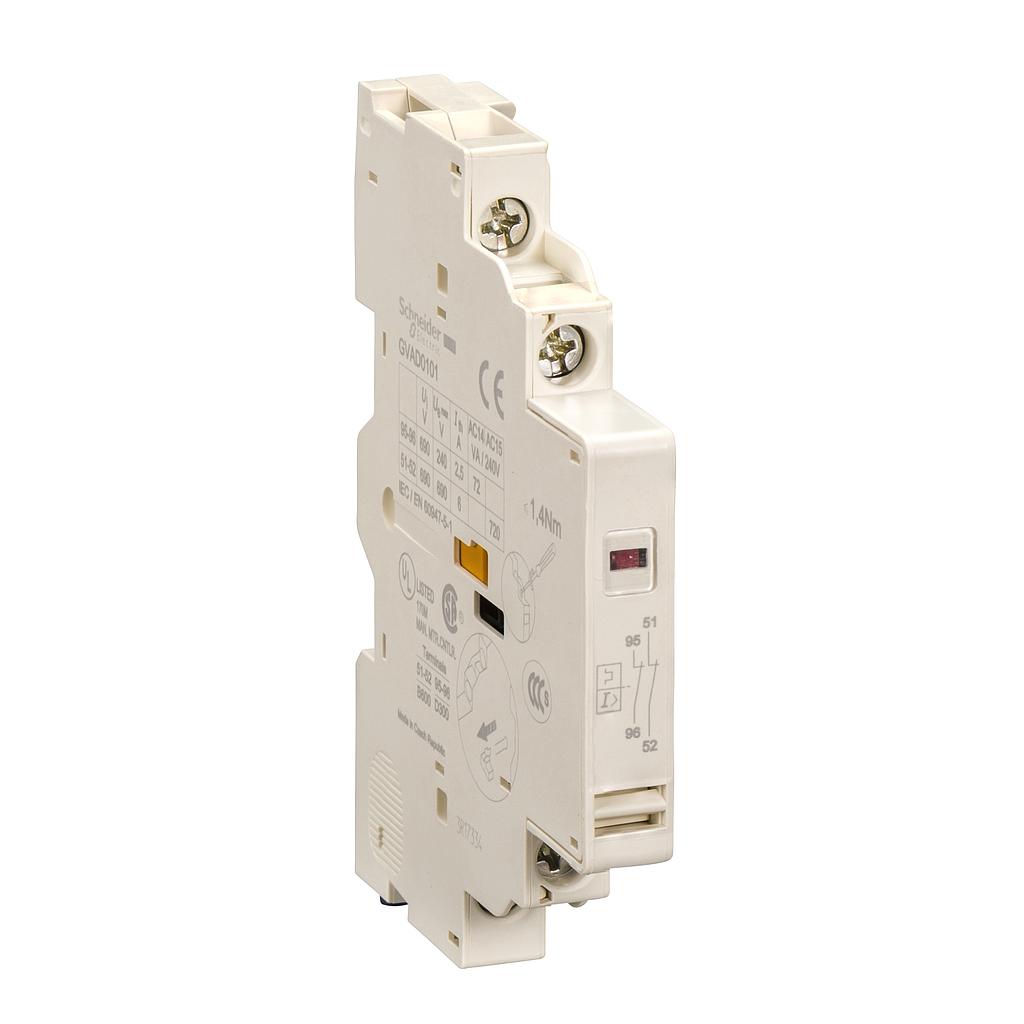

  4. Schneider TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault)

Schneider TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault)

Rp 399.600,00 Rp 223.776,00 223776 IDR

Rp 399.600,00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys GV2 & GV3 - auxiliary contact - 1 NC + 1 NC (fault)
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 223.776,00
    44.00 % Rp 399.600,00 223776 IDR

    Rp 399.600,00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    TeSys
    device short name
    GVAD
    product or component type
    Auxiliary contact block
    product compatibility
    GV3L
    GV2P
    GV2LE
    GV2RT
    GV2L
    GV2ME
    GV3P
    mounting location
    Left side
    auxiliary contacts operation
    Fault signal 1 NC
    pole contact composition
    2 NC
    Complementary (see above)
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-1
    300 V conforming to UL 508
    300 V conforming to CSA C22.2 No 14
    [Ue] rated operational voltage
    48...690 V AC
    24...240 V DC
    [Ith] conventional free air thermal current
    6 A
    2.5 A for fault signalling
    protection type
    GB2CB... circuit breaker
    GG fuse 10 A
    mechanical durability
    100000 cycles
    minimum switching current
    5 mA
    minimum switching voltage
    17 V
    rated operational power in VA
    300 VA at 48 V AC-15 - electrical durability: 100000 cycles
    414 VA at 690 V AC-15 - electrical durability: 100000 cycles
    500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles
    500 VA at 500 V AC-15 - electrical durability: 100000 cycles
    650 VA at 440 V AC-15 - electrical durability: 100000 cycles
    720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles
    850 VA at 380…415 V AC-15 - electrical durability: 100000 cycles
    36 VA at 24 V AC-14 - electrical durability: 1000 cycles
    48 VA at 48 V AC-14 - electrical durability: 1000 cycles
    72 VA at 110…127 V AC-14 - electrical durability: 1000 cycles
    rated operational power in W
    120 W at 240 V DC-13 - electrical durability: 100000 cycles
    140 W at 110 V DC-13 - electrical durability: 100000 cycles
    140 W at 24 V DC-13 - electrical durability: 100000 cycles
    180 W at 60 V DC-13 - electrical durability: 100000 cycles
    240 W at 48 V DC-13 - electrical durability: 100000 cycles
    15 W at 48 V DC-13 - electrical durability: 1000 cycles
    24 W at 24 V DC-13 - electrical durability: 1000 cycles
    9 W at 60 V DC-13 - electrical durability: 1000 cycles
    tightening torque
    1.4 N.m - on screw clamp terminals
    height
    89 mm
    width
    9.3 mm
    depth
    66 mm
    net weight
    0.055 kg
    Environment (see above)
    environmental characteristic
    Normal environment
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    46 g
    Package 1 Height
    8.8 cm
    Package 1 width
    1.5 cm
    Package 1 Length
    6.6 cm
    Unit Type of Package 2
    BB1
    Number of Units in Package 2
    10
    Package 2 Weight
    500 g
    Package 2 Height
    9.5 cm
    Package 2 width
    10 cm
    Package 2 Length
    15.2 cm
    Unit Type of Package 3
    S02
    Number of Units in Package 3
    60
    Package 3 Weight
    3.425 kg
    Package 3 Height
    15 cm
    Package 3 width
    30 cm
    Package 3 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    California proposition 65
    WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    Contractual warranty (see above)
    Warranty
    12 months
