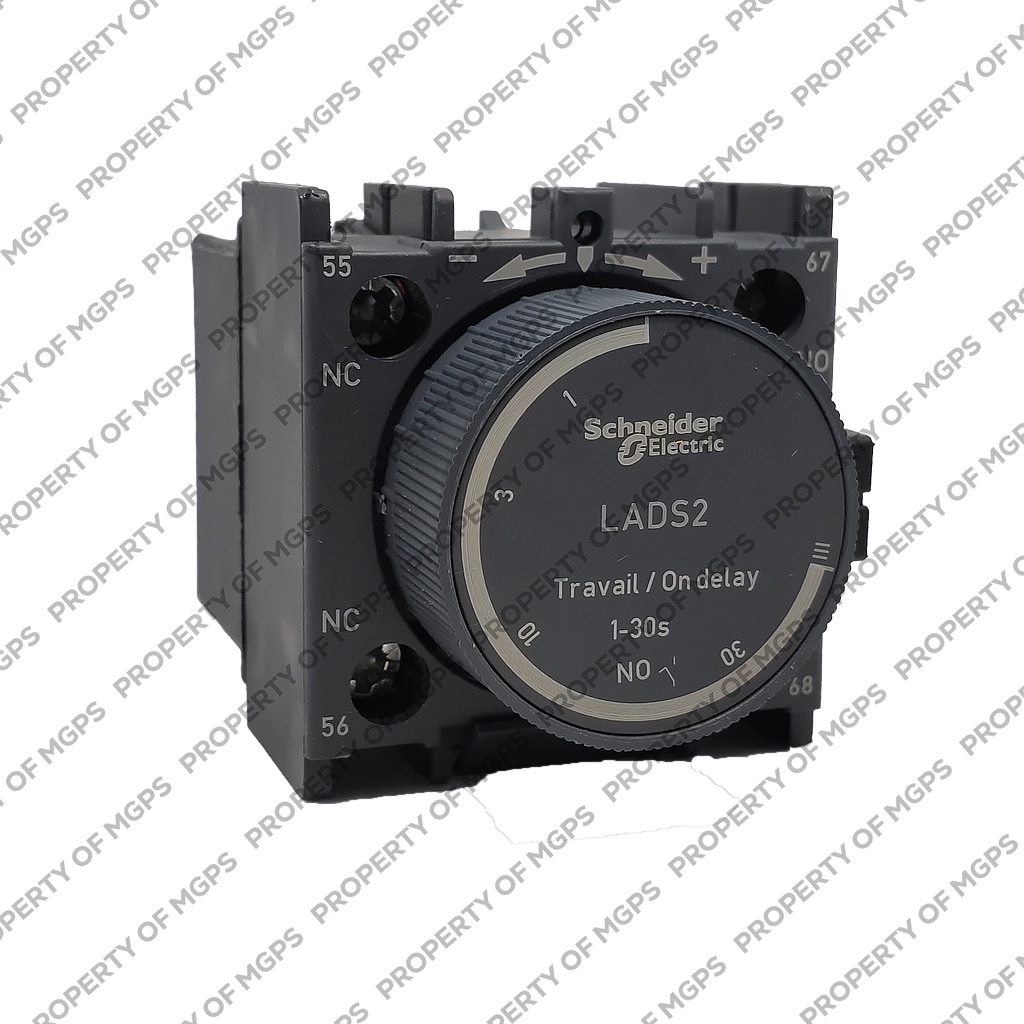

Schneider TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals

Rp 1,490,863.00 Rp 834,883.00 834883 IDR

Rp 1,490,863.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys D - time delay auxiliary contact block - 1 NO + 1 NC screw clamp terminals
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 834,883.00
    44.00 % Rp 1,490,863.00 834883 IDR

    Rp 1,490,863.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 79
    Spesifikasi

    [Deskripsi] 1. product or component type : Time delay auxiliary contact block 2. pole contact composition : 1 NO + 1 NC 3. connections - terminals : -Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end -Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end -Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end -Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end -Screw clamp terminals 1 cable(s) 1…2.5 mm²solid with cable end -Screw clamp terminals 1 cable(s) 1…2.5 mm²solid without cable end -Screw clamp terminals 2 cable(s) 1…2.5 mm²solid with cable end -Screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end 4. mounting location : Front 5. [Ui] rated insulation voltage : -600 V - certifications UL -690 V conforming to IEC 60947-5-1 -600 V - certifications CSA 6. [Ue] rated operational voltage : 690 V AC 25...400 Hz 7. [Ith] conventional free air thermal current : 10 A (at 60 °C) 8. Irms rated making capacity : -140 A AC conforming to IEC 60947-5-1 -250 A DC conforming to IEC 60947-5-1 9. permissible short-time rating : -100 A 60 °C 1 s -120 A 60 °C 500 ms -140 A 60 °C 100 ms 10. protection type : GG fuse 10 A rating according to operational current for Ue <= 690 V 11. associated fuse rating : 10 A gG conforming to IEC 60947-5-1 12. mechanical durability : 5 Mcycles 13. minimum switching current : 5 mA 14. minimum switching voltage : 17 V 15. non-overlap time : -1.5 ms on de-energisation no overlap between NC and NO contact -1.5 ms on energisation no overlap between NC and NO contact 16. timer type : On delay 17. time delay range : 1...30 s 18. insulation resistance : > 10 MOhm


    Main (see above)
    range
    TeSys
    product name
    TeSys D
    product or component type
    Time delay auxiliary contact block
    range compatibility
    TeSys D CAD
    TeSys D LC1D
    TeSys F LC1F
    TeSys F CR1F
    device application
    Star delta starter
    mounting location
    Front
    pole contact composition
    1 NO + 1 NC
    Contacts operation
    Time delay
    timer type
    On delay
    time delay range
    1...30 s
    [Ue] rated operational voltage
    690 V AC 25...400 Hz
    [Ie] rated operational current
    6 A at 120 V AC-15
    1.04 A at 690 V AC-15
    0.55 A at 125 V DC-13
    0.1 A at 600 V DC-13
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-5-1
    600 V conforming to UL 60947-5-1
    600 V conforming to CSA C22.2 No 60947-5-1
    [Ith] conventional free air thermal current
    10 A (at 60 °C)
    standards
    EN/IEC 60947-5-1
    UL 60947-5-1
    CSA C22.2 No 60947-5-1
    GB/T 14048.5
    product certifications
    IECEE CB Scheme
    UL
    CSA
    CCC
    EAC
    Complementary (see above)
    Irms rated making capacity
    140 A at <= 690 V AC conforming to IEC 60947-5-1
    250 A at <= 690 V DC conforming to IEC 60947-5-1
    permissible short-time rating
    100 A 60 °C 1 s
    120 A 60 °C 500 ms
    140 A 60 °C 100 ms
    protection type
    GG fuse 10 A
    mechanical durability
    5 Mcycles
    minimum switching current
    5 mA
    minimum switching voltage
    17 V
    non-overlap time
    1.5 ms on de-energisation no overlap between NC and NO contact
    1.5 ms on energisation no overlap between NC and NO contact
    insulation resistance
    > 10 MOhm
    connections - terminals
    Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible with cable end
    Screw clamp terminals 1 cable(s) 1…2.5 mm²flexible without cable end
    Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
    Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible without cable end
    Screw clamp terminals 1 cable(s) 1…2.5 mm²rigid
    Screw clamp terminals 2 cable(s) 1…2.5 mm²rigid
    Screw clamp terminals
    tightening torque
    1.7 N.m - with screwdriver flat Ø 6 mm
    1.7 N.m - with screwdriver Philips No 2
    height
    48 mm
    width
    44 mm
    depth
    61 mm
    Environment (see above)
    environmental characteristic
    Normal environment
    IP degree of protection
    IP20 conforming to IEC 60529
    protective treatment
    TH conforming to IEC 60068
    ambient air temperature for storage
    -60…80 °C
    ambient air temperature for operation
    -40…70 °C
    operating altitude
    3000 m
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    82 g
    Package 1 Height
    4.8 cm
    Package 1 width
    5.2 cm
    Package 1 Length
    6.5 cm
    Unit Type of Package 2
    BB1
    Number of Units in Package 2
    10
    Package 2 Weight
    838 g
    Package 2 Height
    5.6 cm
    Package 2 width
    13.2 cm
    Package 2 Length
    23.8 cm
    Unit Type of Package 3
    S03
    Number of Units in Package 3
    140
    Package 3 Weight
    12.219 kg
    Package 3 Height
    30 cm
    Package 3 width
    30 cm
    Package 3 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    PVC free
    Yes
    Contractual warranty (see above)
    Warranty
    12 months
