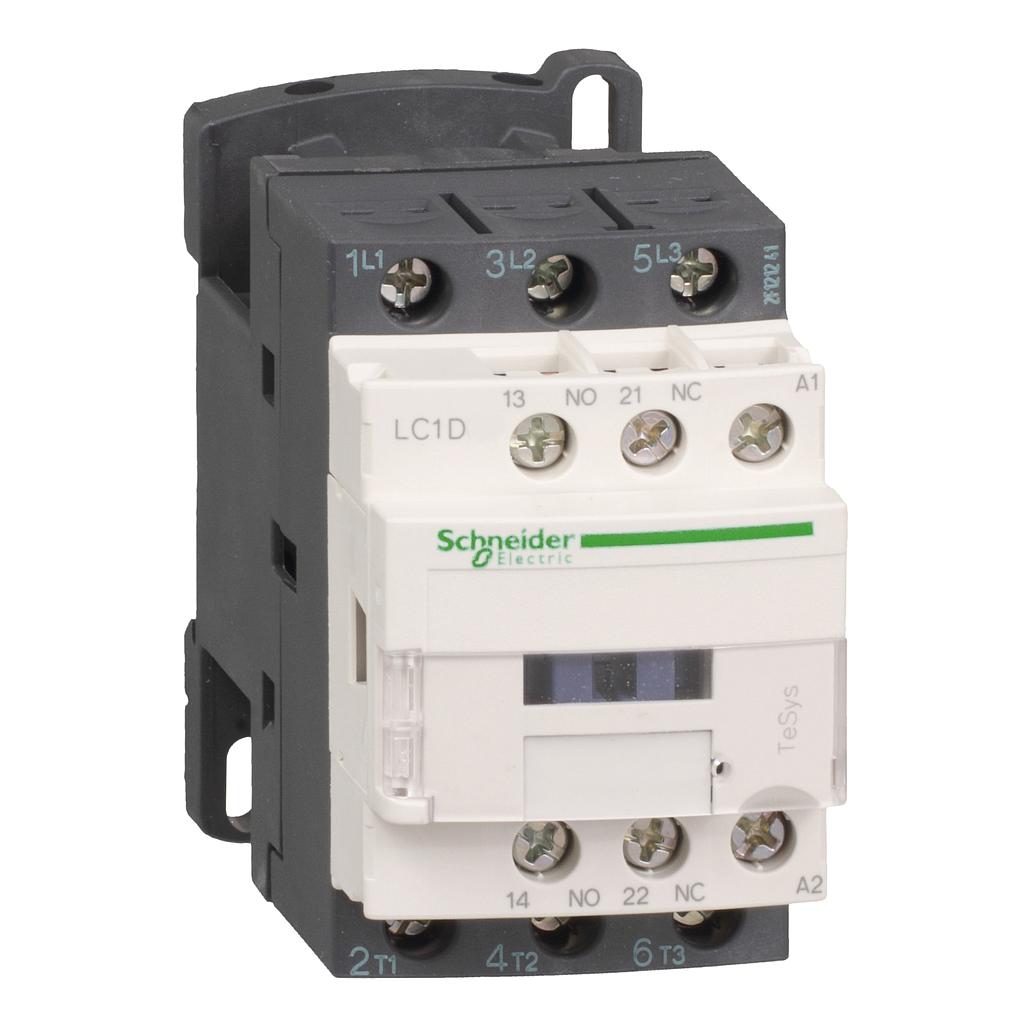

Schneider TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 440 V AC coil

# of Pole : 3

Arus Pengenal (A) : 18A

Coil AC : 400V (R7)

Rp 608,235.00 Rp 340,611.00 340611 IDR

Rp 608,235.00

Option not available

  • # of Pole
  • Arus Pengenal (A)
  • Coil AC

This combination does not exist.

Add to Cart

Schneider TeSys D contactor - 3P(3 NO) - AC-3 - <= 440 V 18 A - 440 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 340,611.00
44.00 % Rp 608,235.00 340611 IDR

Rp 608,235.00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 3

Arus Pengenal (A) : 18A

Coil AC : 400V (R7)

Spesifikasi
Main (see above)
range
TeSys

product name
TeSys D

product or component type
Contactor

device short name
LC1D

contactor application
Resistive load
Motor control

utilisation category
AC-1
AC-4
AC-3

poles description
3P

power pole contact composition
3 NO

[Ue] rated operational voltage
Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC

[Ie] rated operational current
18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit

motor power kW
4 kW at 220...230 V AC 50/60 Hz (AC-3)
7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
10 kW at 500 V AC 50/60 Hz (AC-3)
10 kW at 660...690 V AC 50/60 Hz (AC-3)
4 kW at 400 V AC 50/60 Hz (AC-4)

motor power HP (UL / CSA)
1 hp at 115 V AC 50/60 Hz for 1 phase motors
3 hp at 230/240 V AC 50/60 Hz for 1 phase motors
5 hp at 200/208 V AC 50/60 Hz for 3 phases motors
5 hp at 230/240 V AC 50/60 Hz for 3 phases motors
10 hp at 460/480 V AC 50/60 Hz for 3 phases motors
15 hp at 575/600 V AC 50/60 Hz for 3 phases motors

control circuit type
AC at 50/60 Hz

[Uc] control circuit voltage
440 V AC 50/60 Hz

auxiliary contact composition
1 NO + 1 NC

[Uimp] rated impulse withstand voltage
6 kV conforming to IEC 60947

overvoltage category
III

[Ith] conventional free air thermal current
10 A (at 60 °C) for signalling circuit
32 A (at 60 °C) for power circuit

Irms rated making capacity
140 A AC for signalling circuit conforming to IEC 60947-5-1
250 A DC for signalling circuit conforming to IEC 60947-5-1
300 A at 440 V for power circuit conforming to IEC 60947

rated breaking capacity
300 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current
145 A 40 °C - 10 s for power circuit
240 A 40 °C - 1 s for power circuit
40 A 40 °C - 10 min for power circuit
84 A 40 °C - 1 min for power circuit
100 A - 1 s for signalling circuit
120 A - 500 ms for signalling circuit
140 A - 100 ms for signalling circuit

associated fuse rating
10 A gG for signalling circuit conforming to IEC 60947-5-1
50 A gG at <= 690 V coordination type 1 for power circuit
35 A gG at <= 690 V coordination type 2 for power circuit

average impedance
2.5 mOhm - Ith 32 A 50 Hz for power circuit

[Ui] rated insulation voltage
Power circuit: 690 V conforming to IEC 60947-4-1
Power circuit: 600 V CSA certified
Power circuit: 600 V UL certified
Signalling circuit: 690 V conforming to IEC 60947-1
Signalling circuit: 600 V CSA certified
Signalling circuit: 600 V UL certified

electrical durability
1.65 Mcycles 18 A AC-3 at Ue <= 440 V
1 Mcycles 32 A AC-1 at Ue <= 440 V

power dissipation per pole
2.5 W AC-1
0.8 W AC-3

Front cover
With

mounting support
Plate
Rail

standards
CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508

product certifications
LROS (Lloyds register of shipping)
CSA
BV
RINA
UL
CCC
GL
GOST
DNV

connections - terminals
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²flexible without cable end
Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…6 mm²flexible with cable end
Power circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…6 mm²solid without cable end
Power circuit: screw clamp terminals 2 cable(s) 1.5…6 mm²solid without cable end

tightening torque
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Power circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm
Control circuit: 1.7 N.m - on screw clamp terminals - with screwdriver Philips No 2

operating time
12...22 ms closing
4...19 ms opening

safety reliability level
B10d = 1369863 cycles contactor with nominal load conforming to EN/ISO 13849-1
B10d = 20000000 cycles contactor with mechanical load conforming to EN/ISO 13849-1

mechanical durability
15 Mcycles

maximum operating rate
3600 cyc/h 60 °C

Complementary (see above)
coil technology
Without built-in suppressor module

control circuit voltage limits
0.3...0.6 Uc (-40…70 °C):drop-out AC 50/60 Hz
0.8...1.1 Uc (-40…60 °C):operational AC 50 Hz
0.85...1.1 Uc (-40…60 °C):operational AC 60 Hz
1...1.1 Uc (60…70 °C):operational AC 50/60 Hz

inrush power in VA
70 VA 60 Hz cos phi 0.75 (at 20 °C)
70 VA 50 Hz cos phi 0.75 (at 20 °C)

hold-in power consumption in VA
7.5 VA 60 Hz cos phi 0.3 (at 20 °C)
7 VA 50 Hz cos phi 0.3 (at 20 °C)

heat dissipation
2…3 W at 50/60 Hz

auxiliary contacts type
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1
type mirror contact 1 NC conforming to IEC 60947-4-1

signalling circuit frequency
25...400 Hz

minimum switching current
5 mA for signalling circuit

minimum switching voltage
17 V for signalling circuit

non-overlap time
1.5 ms on de-energisation between NC and NO contact
1.5 ms on energisation between NC and NO contact

insulation resistance
> 10 MOhm for signalling circuit

Environment (see above)
IP degree of protection
IP20 front face conforming to IEC 60529

protective treatment
TH conforming to IEC 60068-2-30

pollution degree
3

ambient air temperature for operation
-40…60 °C
60…70 °C with derating

ambient air temperature for storage
-60…80 °C

operating altitude
0...3000 m

fire resistance
850 °C conforming to IEC 60695-2-1

flame retardance
V1 conforming to UL 94

mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 10 Gn for 11 ms
Shocks contactor closed: 15 Gn for 11 ms

height
77 mm

width
45 mm

depth
86 mm

net weight
0.33 kg

Packing Units (see above)
Unit Type of Package 1
PCE

Number of Units in Package 1
1

Package 1 Weight
354 g

Package 1 Height
10.6 cm

Package 1 width
8.7 cm

Package 1 Length
5.1 cm

Unit Type of Package 2
S02

Number of Units in Package 2
20

Package 2 Weight
7.46 kg

Package 2 Height
15 cm

Package 2 width
30 cm

Package 2 Length
40 cm

Unit Type of Package 3
P06

Number of Units in Package 3
160

Package 3 Weight
69.42 kg

Package 3 Height
77 cm

Package 3 width
80 cm

Package 3 Length
60 cm

Offer Sustainability (see above)
Sustainable offer status
Green Premium product

REACh Regulation
REACh free of SVHC
Yes

EU RoHS Directive
Toxic heavy metal free
Yes

Mercury free
Yes

RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

PVC free
Yes

California proposition 65
WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Contractual warranty (see above)
Warranty
12 months
