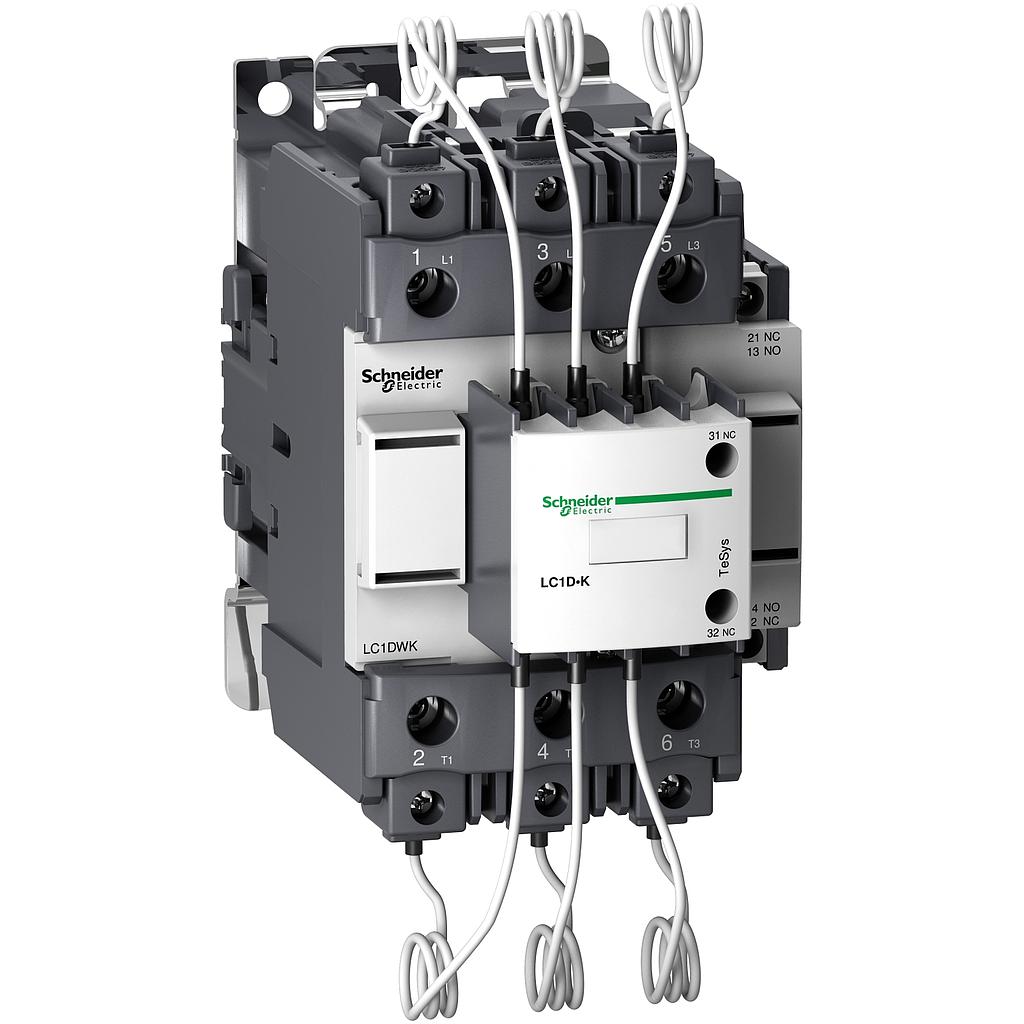

Schneider TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 220 V AC coil
# of Pole : 3
Schneider TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 220 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 3.025.948,00
44.00 %
Rp 5.403.480,00
Rp 5.403.480,00
Option not available
Spesifikasi
[Deskripsi] 1. poles description : 3P 2. power pole contact composition : 3 NO 3. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 4. reactive power rating : -35 kvar at 230 V AC 50/60 Hz 60 °C -63 kvar at 400…415 V AC 50/60 Hz 60 °C -67 kvar at 440 V AC 50/60 Hz 60 °C -104 kvar at 660…690 V AC 50/60 Hz 60 °C 5. control circuit type : AC at 50/60 Hz 6. [Uc] control circuit voltage : 220 V AC 50/60 Hz 7. auxiliary contact composition : 1 NO + 2 NC instantaneous for control circuit 8. height : 180 mm 9. width : 85 mm 10. depth : 154 mm 11. net weight : 1.65 kg
| range | TeSys | |
|---|---|---|
| product name | TeSys LC1D.K | |
| product or component type | Capacitor duty contactor | |
| device short name | LC1DWK | |
| device application | Control | |
| contactor application | Power factor correction | |
| utilisation category | AC-6b | |
| poles description | 3P | |
| power pole contact composition | 3 NO | |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz | |
| reactive power rating | 35 kvar at 230 V AC 50 Hz 60 °C 63 kvar at 400 V AC 50 Hz 60 °C 67 kvar at 440 V AC 50 Hz 60 °C 104 kvar at 690 V AC 50 Hz 60 °C 30 kvar at 230 V AC 60 Hz 60 °C 60 kvar at 460 V AC 60 Hz 60 °C 80 kvar at 575 V AC 60 Hz 60 °C | |
| control circuit type | AC at 50/60 Hz | |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz | |
| auxiliary contact composition | 1 NO + 2 NC instantaneous | |
| electrical durability | 300000 cycles at Ue 400 V 200000 cycles at Ue 690 V | |
| mounting support | DIN rail Plate | |
| standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 | |
| product certifications | IECEE CB Scheme UL CSA | |
| connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: connector 1 4…50 mm² - cable stiffness: solid Power circuit: connector 2 4…25 mm² - cable stiffness: solid Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end | |
| tightening torque | Power circuit: 9 N.m - on connector Control circuit: 1.7 N.m - on screw clamp terminals | |
| maximum operating rate | 240 cyc/h |
| auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 | |
|---|---|---|
| ambient air temperature for operation | -5…60 °C | |
| ambient air temperature for storage | -60…80 °C | |
| operating altitude | 0...3000 m | |
| height | 180 mm | |
| width | 85 mm | |
| depth | 154 mm | |
| net weight | 1.65 kg |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 1.721 kg | |
| Package 1 Height | 13 cm | |
| Package 1 width | 17 cm | |
| Package 1 Length | 19 cm | |
| Unit Type of Package 2 | P06 | |
| Number of Units in Package 2 | 48 | |
| Package 2 Weight | 95.37 kg | |
| Package 2 Height | 75 cm | |
| Package 2 width | 80 cm | |
| Package 2 Length | 60 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
Specifications for Schneider TeSys LC1D.K capacitor duty contactor - 3P - 60 kVAR - 415 V - 220 V AC coil
| # of Pole | 3 |
HOT PROMO
[Deskripsi] 1. poles description : 3P 2. power pole contact composition : 3 NO 3. [Ue] rated operational voltage : Power circuit: <= 690 V AC 50/60 Hz 4. reactive power rating : -35 kvar at 230 V AC 50/60 Hz 60 °C -63 kvar at 400…415 V AC 50/60 Hz 60 °C -67 kvar at 440 V AC 50/60 Hz 60 °C -104 kvar at 660…690 V AC 50/60 Hz 60 °C 5. control circuit type : AC at 50/60 Hz 6. [Uc] control circuit voltage : 220 V AC 50/60 Hz 7. auxiliary contact composition : 1 NO + 2 NC instantaneous for control circuit 8. height : 180 mm 9. width : 85 mm 10. depth : 154 mm 11. net weight : 1.65 kg
| range | TeSys | |
|---|---|---|
| product name | TeSys LC1D.K | |
| product or component type | Capacitor duty contactor | |
| device short name | LC1DWK | |
| device application | Control | |
| contactor application | Power factor correction | |
| utilisation category | AC-6b | |
| poles description | 3P | |
| power pole contact composition | 3 NO | |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz | |
| reactive power rating | 35 kvar at 230 V AC 50 Hz 60 °C 63 kvar at 400 V AC 50 Hz 60 °C 67 kvar at 440 V AC 50 Hz 60 °C 104 kvar at 690 V AC 50 Hz 60 °C 30 kvar at 230 V AC 60 Hz 60 °C 60 kvar at 460 V AC 60 Hz 60 °C 80 kvar at 575 V AC 60 Hz 60 °C | |
| control circuit type | AC at 50/60 Hz | |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz | |
| auxiliary contact composition | 1 NO + 2 NC instantaneous | |
| electrical durability | 300000 cycles at Ue 400 V 200000 cycles at Ue 690 V | |
| mounting support | DIN rail Plate | |
| standards | EN/IEC 60947-1 EN/IEC 60947-4-1 UL 60947-4-1 CSA C22.2 No 60947-4-1 | |
| product certifications | IECEE CB Scheme UL CSA | |
| connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: connector 1 4…50 mm² - cable stiffness: solid Power circuit: connector 2 4…25 mm² - cable stiffness: solid Power circuit: connector 1 4…50 mm² - cable stiffness: flexible without cable end Power circuit: connector 2 4…25 mm² - cable stiffness: flexible without cable end Power circuit: connector 1 4…50 mm² - cable stiffness: flexible with cable end Power circuit: connector 2 4…16 mm² - cable stiffness: flexible with cable end | |
| tightening torque | Power circuit: 9 N.m - on connector Control circuit: 1.7 N.m - on screw clamp terminals | |
| maximum operating rate | 240 cyc/h |
| auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
|---|
| IP degree of protection | IP20 front face conforming to IEC 60529 | |
|---|---|---|
| ambient air temperature for operation | -5…60 °C | |
| ambient air temperature for storage | -60…80 °C | |
| operating altitude | 0...3000 m | |
| height | 180 mm | |
| width | 85 mm | |
| depth | 154 mm | |
| net weight | 1.65 kg |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 1.721 kg | |
| Package 1 Height | 13 cm | |
| Package 1 width | 17 cm | |
| Package 1 Length | 19 cm | |
| Unit Type of Package 2 | P06 | |
| Number of Units in Package 2 | 48 | |
| Package 2 Weight | 95.37 kg | |
| Package 2 Height | 75 cm | |
| Package 2 width | 80 cm | |
| Package 2 Length | 60 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
