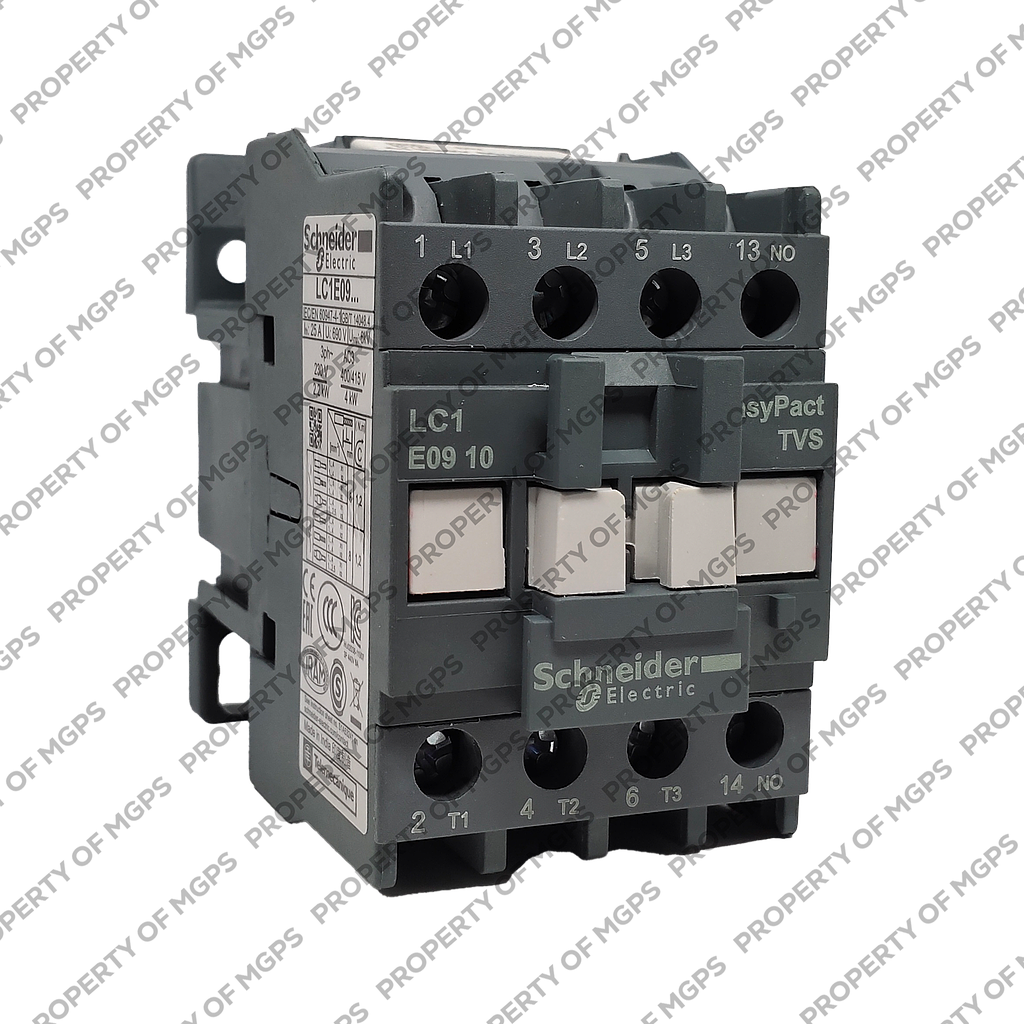

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 48 V AC coil
# of Pole : 3
Arus Pengenal (A) : 9A
Coil AC : 48V (E7)
Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 48 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 176,067.00
44.00 %
Rp 314,407.00
Rp 314,407.00
Option not available
Spesifikasi
| range | EasyPact | |
|---|---|---|
| product name | EasyPact TVS | |
| product or component type | Contactor | |
| device short name | LC1E | |
| contactor application | Motor control Resistive load | |
| utilisation category | AC-1 AC-3 | |
| poles description | 3P | |
| power pole contact composition | 3 NO | |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz | |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit | |
| motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz 4 kW at 380...400 V 4 kW at 415 V 4 kW at 440 V 5.5 kW at 500 V 5.5 kW at 660...690 V | |
| control circuit type | AC at 50/60 Hz | |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz | |
| height | 74 mm | |
| width | 45 mm | |
| depth | 80 mm | |
| net weight | 0.3 kg | |
| colour | Grey (RAL 7011) |
| auxiliary contact composition | 1 NO | |
|---|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 | |
| overvoltage category | III | |
| Irms rated making capacity | 90 A at 440 V AC for power circuit conforming to IEC 60947-4-1 | |
| rated breaking capacity | 72 A at 440 V for power circuit conforming to IEC 60947 | |
| [Icw] rated short-time withstand current | 105 A 40 °C - 10 s for power circuit 61 A 40 °C - 60 s for power circuit 30 A 40 °C - 600 s for power circuit | |
| associated fuse rating | 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 20 A gG at <= 690 V coordination type 1 for power circuit | |
| average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit | |
| power dissipation per pole | 0.2 W AC-3 1.6 W AC-1 | |
| control circuit voltage limits | Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C) Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) | |
| operating time | 12...22 ms on closing 4...19 ms on opening | |
| mechanical durability | 10000000 cycles | |
| maximum operating rate | 1800 cyc/h 60 °C | |
| inrush power in VA | 95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) | |
| hold-in power consumption in VA | 8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) | |
| heat dissipation | 2…3 W for control circuit | |
| minimum switching current | 5 mA for control circuit | |
| minimum switching voltage | 17 V for control circuit | |
| non-overlap time | 1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact | |
| insulation resistance | > 10 MOhm for control circuit | |
| electrical durability | 1400000 cycles AC-3 150000 cycles AC-1 | |
| mounting support | Plate DIN rail | |
| connections - terminals | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end | |
| Recommended tightening torque | Power circuit: 1.2 N.m Control circuit: 1.2 N.m | |
| Max tightening torque | Power circuit: 1.4 N.m Control circuit: 1.4 N.m |
| standards | IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 | |
|---|---|---|
| product certifications | CE EAC | |
| IP degree of protection | IP2x conforming to IEC 60529 | |
| protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 | |
| pollution degree | 3 | |
| ambient air temperature for operation | -5…55 °C | |
| ambient air temperature for storage | -60…80 °C | |
| permissible ambient air temperature around the device | -20…70 °C at Uc | |
| operating altitude | 3000 m without derating | |
| fire resistance | 850 °C conforming to IEC 60695-2-1 | |
| mechanical robustness | Vibrations contactor open: 1.5 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz Shocks contactor open: 7 Gn for 11 ms Shocks contactor closed: 10 Gn for 11 ms |
| Package 1 Weight | 290.000 g | |
|---|---|---|
| Package 1 Height | 80.000 mm | |
| Package 1 width | 45.000 mm | |
| Package 1 Length | 74.000 mm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | ||
| Environmental Disclosure | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
