  2. Contactor
  3. TVS
  4. Schneider EasyPact TVS differential thermal overload relay 259...414 A - class 10A

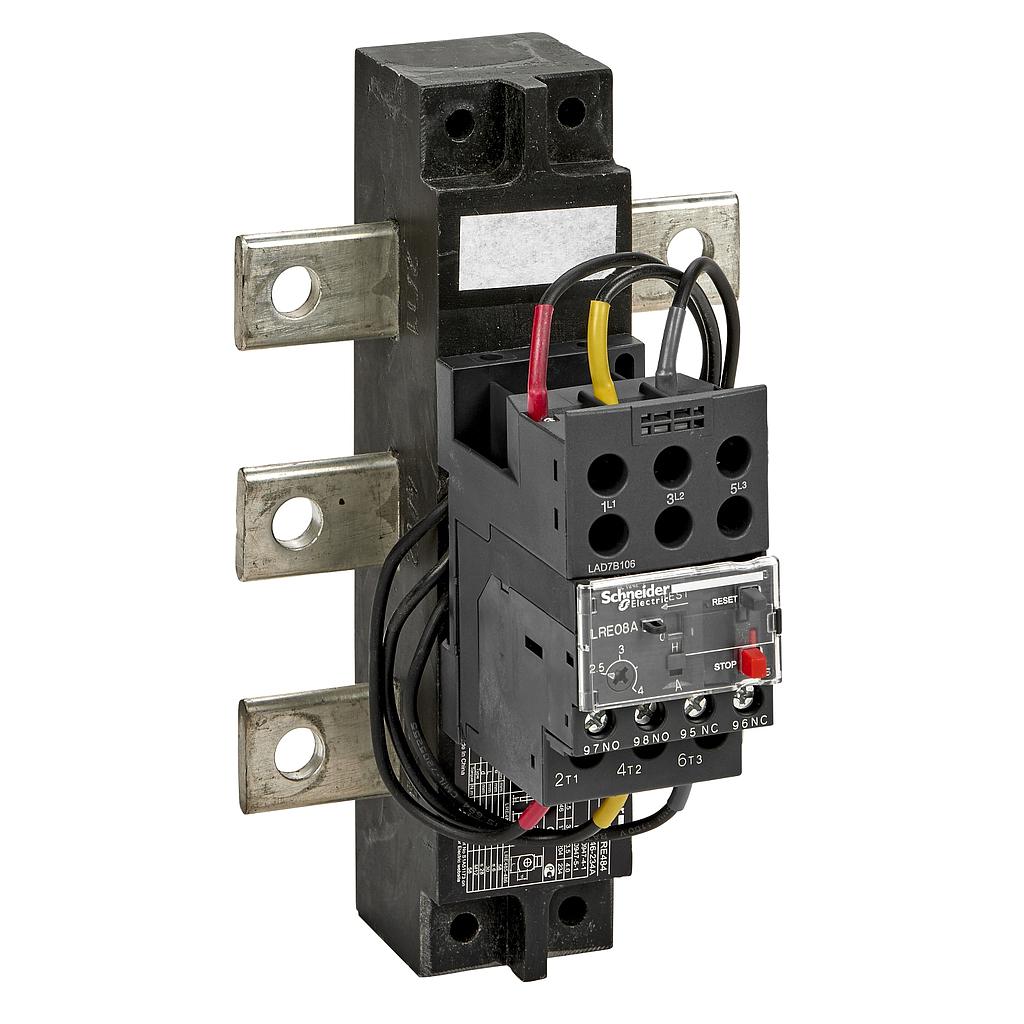

Schneider EasyPact TVS differential thermal overload relay 259...414 A - class 10A

Rp 8,304,931.00 Rp 4,650,761.00 4650761 IDR

Rp 8,304,931.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider EasyPact TVS differential thermal overload relay 259...414 A - class 10A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 4,650,761.00
    44.00 % Rp 8,304,931.00 4650761 IDR

    Rp 8,304,931.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    EasyPact
    product name
    EasyPact TVS
    product or component type
    Differential thermal overload relay
    device short name
    LRE
    relay application
    Motor protection
    phase failure sensitivity
    Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
    Complementary (see above)
    product compatibility
    LC1E300...630
    network type
    AC
    network frequency
    50...60 Hz
    mounting support
    Under contactor
    Plate
    thermal overload class
    Class 10A conforming to IEC 60947-4-1
    signalling function
    Relay trip indicator
    thermal protection adjustment range
    259…414 A
    tripping threshold
    1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
    mechanical robustness
    Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
    Vibrations: 3 Gn conforming to IEC 60068-2-6
    auxiliary contact composition
    1 NO + 1 NC
    [Ith] conventional free air thermal current
    5 A for signalling circuit
    [Ue] rated operational voltage
    <= 690 V AC
    associated fuse rating
    400 A aM for power circuit
    500 A gG for power circuit
    5 A gG for signalling circuit
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-4-1
    [Uimp] rated impulse withstand voltage
    6 kV
    local signalling
    Trip indicator
    control type
    Push-button red stop:
    Push-button green reset:
    temperature compensation
    -20…60 °C
    connection pitch
    48 mm
    connections - terminals
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
    Power circuit: lugs
    Power circuit: bars - busbar cross section: 4 x 25 mm
    Recommended tightening torque
    Power circuit: 35 N.m - on bars M10
    Power circuit: 35 N.m - on lugs M10
    Signalling circuit: 1.7 N.m - on screw clamp terminals
    height
    134 mm
    width
    180 mm
    depth
    134 mm
    net weight
    2.4 kg
    Environment (see above)
    standards
    IEC 60947-5-1
    IEC 60947-4-1
    product certifications
    EAC
    protective treatment
    TH conforming to IEC 60068
    IP degree of protection
    IP00 conforming to IEC 60529
    ambient air temperature for operation
    -20…60 °C without derating conforming to IEC 60947-4-1
    -20…70 °C with derating
    ambient air temperature for storage
    -60…80 °C
    fire resistance
    850 °C conforming to IEC 60068-2-1
    dielectric strength
    6 kV at 50 Hz conforming to IEC 60255-5
    electromagnetic compatibility
    Surge withstand: 6 kV conforming to IEC 60801-5
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    2.9 kg
    Package 1 Height
    16 cm
    Package 1 width
    17.5 cm
    Package 1 Length
    27.2 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
