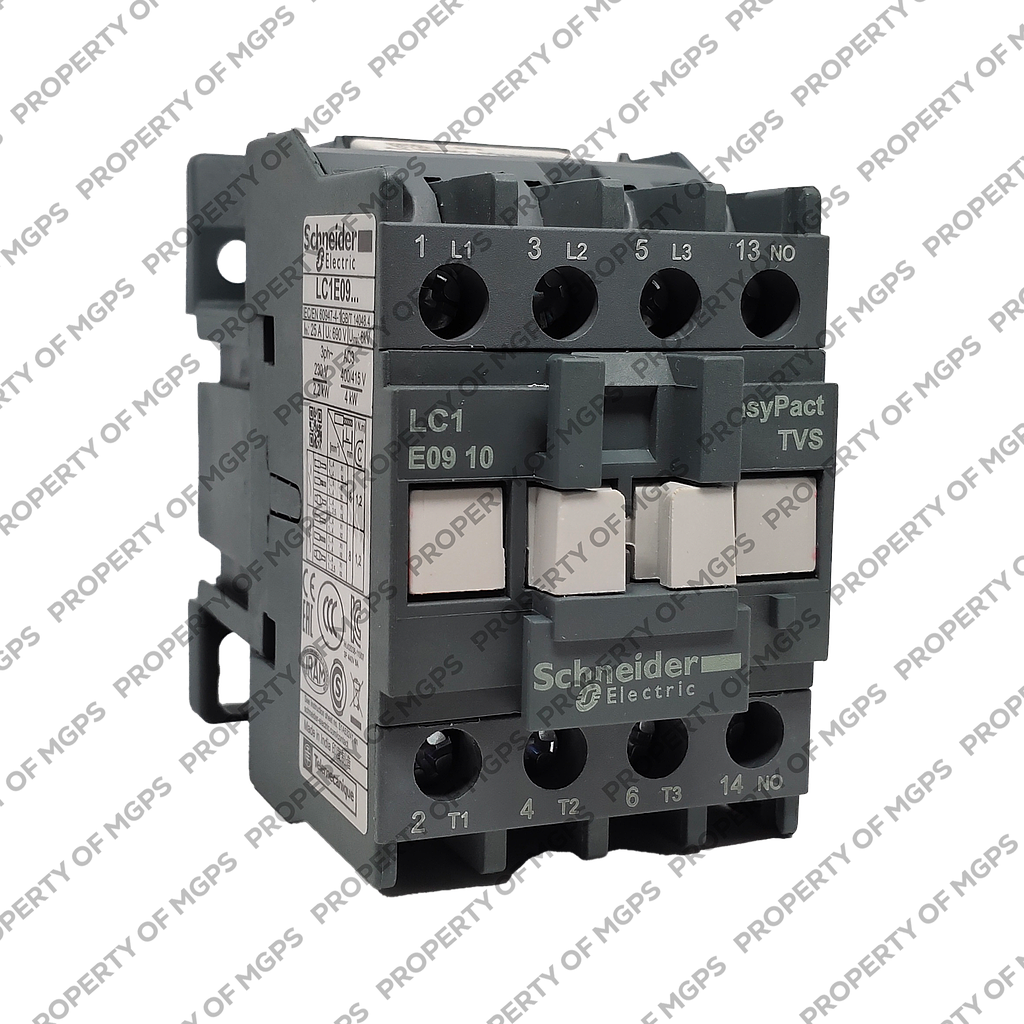

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380 V AC coil

# of Pole : 3

Arus Pengenal (A) : 9A

Coil AC : 380V (Q7)

Rp 292,684.00 Rp 163,903.00 163903 IDR

Rp 292,684.00

Option not available

  • # of Pole
  • Arus Pengenal (A)
  • Coil AC

This combination does not exist.

Add to Cart

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 163,903.00
44.00 % Rp 292,684.00 163903 IDR

Rp 292,684.00

Option not available

Atur Jumlah & Catatan
Stock Total: 20

# of Pole : 3

Arus Pengenal (A) : 9A

Coil AC : 380V (Q7)

Spesifikasi
Main (see above)
range
EasyPact

product name
EasyPact TVS

product or component type
Contactor

device short name
LC1E

contactor application
Motor control
Resistive load

utilisation category
AC-1
AC-3

poles description
3P

power pole contact composition
3 NO

[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz

[Ie] rated operational current
9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit

motor power kW
2.2 kW at 220...230 V AC 50/60 Hz
4 kW at 380...400 V
4 kW at 415 V
4 kW at 440 V
5.5 kW at 500 V
5.5 kW at 660...690 V

control circuit type
AC at 50/60 Hz

[Uc] control circuit voltage
380 V AC 50/60 Hz

height
74 mm

width
45 mm

depth
80 mm

net weight
0.3 kg

colour
Grey (RAL 7011)

Complementary (see above)
auxiliary contact composition
1 NO

[Uimp] rated impulse withstand voltage
6 kV coil not connected to the power circuit conforming to IEC 60947

[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1

overvoltage category
III

Irms rated making capacity
90 A at 440 V AC for power circuit conforming to IEC 60947-4-1

rated breaking capacity
72 A at 440 V for power circuit conforming to IEC 60947

[Icw] rated short-time withstand current
105 A 40 °C - 10 s for power circuit
61 A 40 °C - 60 s for power circuit
30 A 40 °C - 600 s for power circuit

associated fuse rating
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
20 A gG at <= 690 V coordination type 1 for power circuit

average impedance
2.5 mOhm - Ith 25 A 50 Hz for power circuit

power dissipation per pole
0.2 W AC-3
1.6 W AC-1

control circuit voltage limits
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)

operating time
12...22 ms on closing
4...19 ms on opening

mechanical durability
10000000 cycles

maximum operating rate
1800 cyc/h 60 °C

inrush power in VA
95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C)

hold-in power consumption in VA
8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C)

heat dissipation
2…3 W for control circuit

minimum switching current
5 mA for control circuit

minimum switching voltage
17 V for control circuit

non-overlap time
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact

insulation resistance
> 10 MOhm for control circuit

electrical durability
1400000 cycles AC-3
150000 cycles AC-1

mounting support
Plate
DIN rail

connections - terminals
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end

Recommended tightening torque
Power circuit: 1.2 N.m
Control circuit: 1.2 N.m

Max tightening torque
Power circuit: 1.4 N.m
Control circuit: 1.4 N.m

Environment (see above)
standards
IEC 60947-1
IEC 60947-4-1
IEC 60947-5-1

product certifications
CE
EAC

IP degree of protection
IP2x conforming to IEC 60529

protective treatment
TH (pollution degree 3) conforming to IEC 60068-2-30

pollution degree
3

ambient air temperature for operation
-5…55 °C

ambient air temperature for storage
-60…80 °C

permissible ambient air temperature around the device
-20…70 °C at Uc

operating altitude
3000 m without derating

fire resistance
850 °C conforming to IEC 60695-2-1

mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor open: 7 Gn for 11 ms
Shocks contactor closed: 10 Gn for 11 ms

Packing Units (see above)
Package 1 Weight
290.000 g

Package 1 Height
80.000 mm

Package 1 width
45.000 mm

Package 1 Length
74.000 mm

Offer Sustainability (see above)
Sustainable offer status
Green Premium product

REACh Regulation
REACh free of SVHC
Yes

EU RoHS Directive
Toxic heavy metal free
Yes

Mercury free
Yes

RoHS exemption information
China RoHS Regulation
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Specifications for Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 9A - 380 V AC coil

General Information
# of Pole 3
Arus Pengenal (A) 9A
Uncategorized
Coil AC 380V (Q7)
