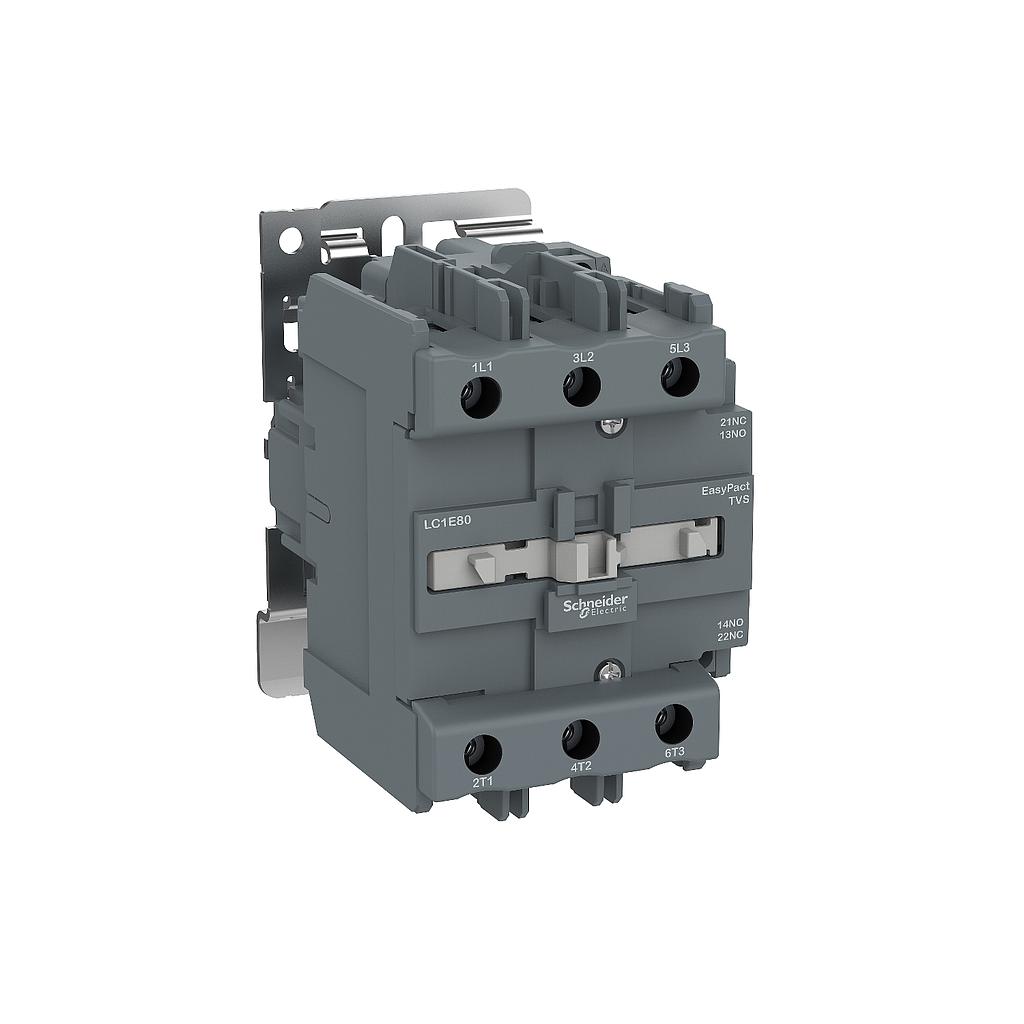

  4. Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 95A - 48 V AC coil

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 95A - 48 V AC coil

# of Pole : 3

Arus Pengenal (A) : 95A

Coil AC : 48V (E7)

Rp 2,701,617.00 Rp 1,512,905.00 1512905 IDR

Rp 2,701,617.00

Option not available

  • # of Pole
  • Arus Pengenal (A)
  • Coil AC

This combination does not exist.

Add to Cart

Schneider EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 95A - 48 V AC coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1,512,905.00
44.00 % Rp 2,701,617.00 1512905 IDR

Rp 2,701,617.00

Option not available

Atur Jumlah & Catatan
Stock Total: 1

# of Pole : 3

Arus Pengenal (A) : 95A

Coil AC : 48V (E7)

Keranjang Beli Sekarang
Spesifikasi
Main (see above)
range
EasyPact
product name
EasyPact TVS
product or component type
Contactor
device short name
LC1E
contactor application
Resistive load
Motor control
utilisation category
AC-3
AC-1
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current
95 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
125 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
motor power kW
45 kW at 415 V
45 kW at 440 V
45 kW at 500 V
25 kW at 220...230 V AC 50/60 Hz
45 kW at 380...400 V
55 kW at 660...690 V
control circuit type
AC at 50/60 Hz
[Uc] control circuit voltage
48 V AC 50/60 Hz
height
127 mm
width
85 mm
depth
121 mm
net weight
1.52 kg
colour
Grey (RAL 7011)
Complementary (see above)
auxiliary contact composition
1 NO + 1 NC
[Uimp] rated impulse withstand voltage
6 kV coil not connected to the power circuit conforming to IEC 60947
[Ui] rated insulation voltage
690 V conforming to IEC 60947-4-1
overvoltage category
III
Irms rated making capacity
950 A at 440 V AC for power circuit conforming to IEC 60947-4-1
rated breaking capacity
760 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
135 A 40 °C - 600 s for power circuit
800 A 40 °C - 10 s for power circuit
400 A 40 °C - 60 s for power circuit
associated fuse rating
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
160 A gG at <= 690 V coordination type 1 for power circuit
average impedance
0.8 mOhm - Ith 120 A 50 Hz for power circuit
power dissipation per pole
7.2 W AC-3
12 W AC-1
control circuit voltage limits
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C)
Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C)
operating time
20...35 ms on closing
6...30 ms on opening
mechanical durability
300000 cycles
maximum operating rate
1200 cyc/h 60 °C
inrush power in VA
200 VA 50 Hz cos phi 0.75 (at 20 °C)
220 VA 60 Hz cos phi 0.75 (at 20 °C)
hold-in power consumption in VA
22 VA 60 Hz cos phi 0.3 (at 20 °C)
20 VA 50 Hz cos phi 0.3 (at 20 °C)
heat dissipation
6…10 W for control circuit
minimum switching current
5 mA for control circuit
minimum switching voltage
17 V for control circuit
non-overlap time
1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
insulation resistance
> 10 MOhm for control circuit
electrical durability
350000 cycles AC-3
900000 cycles AC-1
mounting support
Plate
DIN rail
connections - terminals
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 4…16 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 4…50 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 4…50 mm² - cable stiffness: solid without cable end
Recommended tightening torque
Control circuit: 1.2 N.m
Power circuit: 12 N.m
Max tightening torque
Control circuit: 1.4 N.m
Power circuit: 13.5 N.m
Environment (see above)
standards
IEC 60947-5-1
IEC 60947-1
IEC 60947-4-1
product certifications
CE
EAC
IP degree of protection
IP2x conforming to IEC 60529
protective treatment
TH (pollution degree 3) conforming to IEC 60068-2-30
pollution degree
3
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-20…70 °C at Uc
operating altitude
3000 m without derating
fire resistance
850 °C conforming to IEC 60695-2-1
mechanical robustness
Vibrations contactor open: 1.5 Gn, 5...300 Hz
Vibrations contactor closed: 3 Gn, 5...300 Hz
Shocks contactor open: 6 Gn for 11 ms
Shocks contactor closed: 7 Gn for 11 ms
Packing Units (see above)
Package 1 Weight
1.400 g
Package 1 Height
121.000 mm
Package 1 width
85.000 mm
Package 1 Length
127.000 mm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
