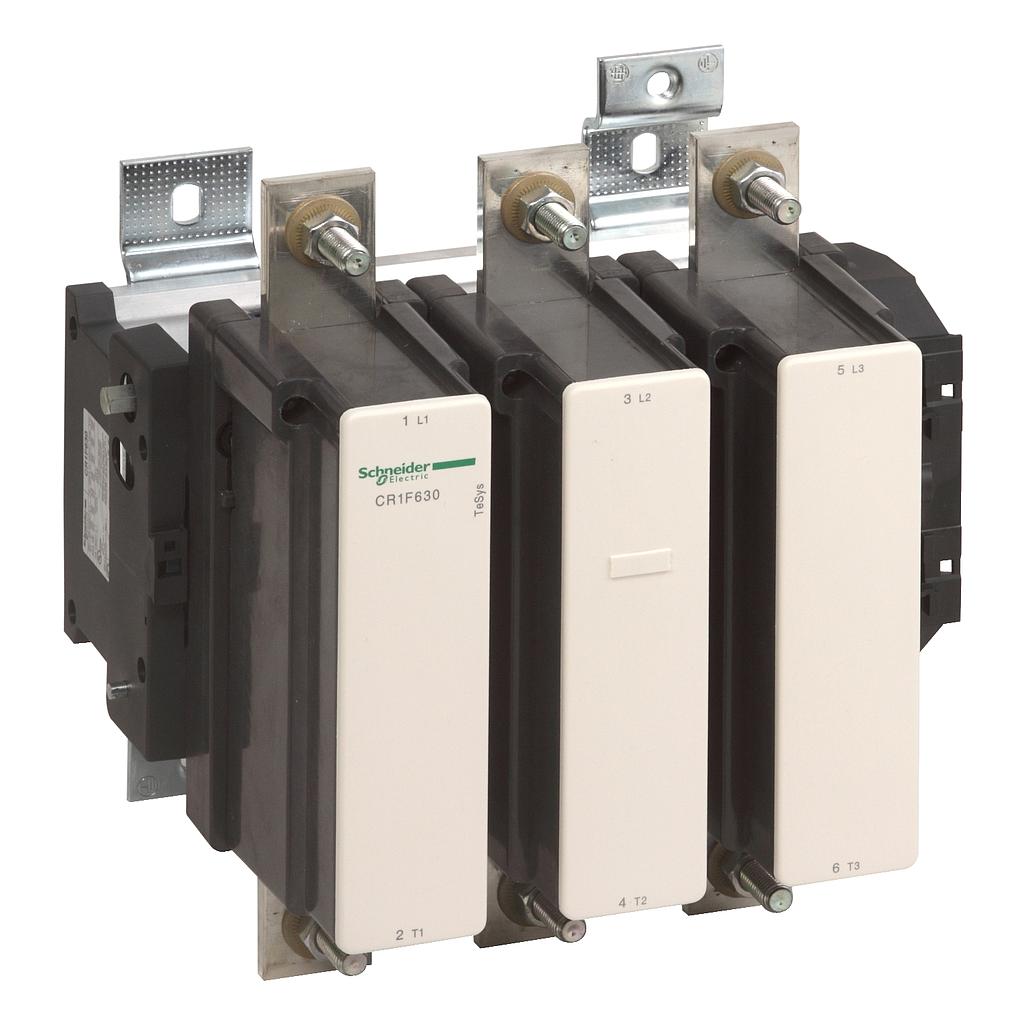

  4. Schneider TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 630 A - without coil

Schneider TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 630 A - without coil

# of Pole : 3

Rp 54.573.150,00 Rp 24.012.186,00 24012186 IDR

Rp 54.573.150,00

Option not available

  • # of Pole

This combination does not exist.

Add to Cart

Schneider TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 630 A - without coil
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 24.012.186,00
56.00 % Rp 54.573.150,00 24012186 IDR

Rp 54.573.150,00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 3

Keranjang Beli Sekarang
Spesifikasi

[Deskripsi] 1. product name : TeSys F 2. product or component type : Contactor 3. device short name : LC1F 4. contactor application : -Resistive load -Motor control 5. utilisation category : -AC-1 -AC-4 -AC-3 6. poles description : 3P 7. power pole contact composition : 3 NO 8. [Ue] rated operational voltage : -<= 1000 V AC 50/60 Hz -<= 460 V DC 9. [Ie] rated operational current : -1000 A (at <40 °C) at <= 440 V AC-1 -630 A (at <55 °C) at <= 440 V AC-3 10. motor power kW : -335 kW at 380...400 V AC 50/60 Hz (AC-3) -375 kW at 415 V AC 50/60 Hz (AC-3) -400 kW at 440 V AC 50/60 Hz (AC-3) -400 kW at 500 V AC 50/60 Hz (AC-3) -450 kW at 1000 V AC 50/60 Hz (AC-3) -200 kW at 220...240 V AC 50/60 Hz (AC-3) -450 kW at 660...690 V AC 50/60 Hz (AC-3) -100 kW at 400 V AC 50/60 Hz (AC-4) 11. [Uimp] rated impulse withstand voltage : 8 kV 12. overvoltage category : III 13. [Ith] conventional free air thermal current : -1000 A (at 40 °C) -1250 A 14. Irms rated making capacity : 6300 A conforming to IEC 60947-4-1 15. rated breaking capacity : 5040 A conforming to IEC 60947-4-1 16. [Icw] rated short-time withstand current : -5050 A 40 °C - 10 s -4400 A 40 °C - 30 s -3400 A 40 °C - 1 min -2200 A 40 °C - 3 min -1600 A 40 °C - 10 min 17. associated fuse rating : -630 A aM at <= 440 V -2000 A gG at <= 440 V 18. average impedance : 0.12 mOhm - Ith 1000 A 50 Hz 19. [Ui] rated insulation voltage : -1000 V conforming to IEC 60947-4-1 -1500 V conforming to VDE 0110 group C 20. power dissipation per pole : -120 W AC-1 -48 W AC-3 21. mounting support : Plate 22. standards : -EN 60947-1 -JIS C8201-4-1 -IEC 60947-4-1 -EN 60947-4-1 -IEC 60947-1 23. product certifications : -RINA -ABS -CSA -DNV -RMRoS -BV -LROS (Lloyds register of shipping) -UL -CB 24. connections - terminals : -Power circuit: lugs-ring terminals 1 cable(s) 95 mm² -Power circuit: connector 1 cable(s) 95 mm² -Power circuit: bar 2 cable(s) - busbar cross section: 20 x 3 mm -Power circuit: bolted connection 25. tightening torque : Power circuit: 18 N.m 26. IP degree of protection : -IP2x front face with shrouds conforming to IEC 60529 -IP2x front face with shrouds conforming to VDE 0106 27. protective treatment : TH 28. ambient air temperature for operation : -5…55 °C 29. ambient air temperature for storage : -60…80 °C 30. permissible ambient air temperature around the device : -40…70 °C 31. operating altitude : 3000 m without 32. mechanical robustness : -Vibrations contactor open: 2 Gn, 5...300 Hz -Vibrations contactor closed: 6 Gn, 5...300 Hz -Shocks contactor open: 9 Gn for 1/2 sine wave (11 ms) -Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms) 33. height : 304 mm 34. width : 309 mm 35. depth : 255 mm 36. net weight : 18.6 kg


Main (see above)
range
TeSys
product name
TeSys F
product or component type
Contactor
device short name
LC1F
contactor application
Resistive load
Motor control
utilisation category
AC-4
AC-1
AC-3
poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz
<= 460 V DC
[Ie] rated operational current
1000 A (at <40 °C) at <= 440 V AC AC-1
630 A (at <55 °C) at <= 440 V AC AC-3
motor power kW
335 kW at 380...400 V AC 50/60 Hz (AC-3)
375 kW at 415 V AC 50/60 Hz (AC-3)
400 kW at 440 V AC 50/60 Hz (AC-3)
400 kW at 500 V AC 50/60 Hz (AC-3)
450 kW at 1000 V AC 50/60 Hz (AC-3)
200 kW at 220...240 V AC 50/60 Hz (AC-3)
450 kW at 660...690 V AC 50/60 Hz (AC-3)
100 kW at 400 V AC 50/60 Hz (AC-4)
Complementary (see above)
[Uc] control circuit voltage
48...1000 V AC 40...400 Hz with LX1/LX9 coil
48...440 V DC with LX4 coil
[Uimp] rated impulse withstand voltage
8 kV
overvoltage category
III
[Ith] conventional free air thermal current
1000 A (at 40 °C)
1250 A
Irms rated making capacity
6300 A AC conforming to IEC 60947-4-1
rated breaking capacity
5040 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
5050 A 40 °C - 10 s
4400 A 40 °C - 30 s
3400 A 40 °C - 1 min
2200 A 40 °C - 3 min
1600 A 40 °C - 10 min
associated fuse rating
630 A aM at <= 440 V
1000 A gG at <= 440 V
average impedance
0.12 mOhm - Ith 1000 A 50 Hz
[Ui] rated insulation voltage
1000 V conforming to IEC 60947-4-1
1500 V conforming to VDE 0110 group C
power dissipation per pole
120 W AC-1
48 W AC-3
control circuit voltage limits
Operational: 0.85...1.1 Uc AC 40...400 Hz with LX1/LX9 coil
Drop-out: 0.25...0.5 Uc AC 40...400 Hz with LX1/LX9 coil
Operational: 0.85...1.1 Uc DC with LX4 coil
Drop-out: 0.2...0.35 Uc DC with LX4 coil
heat dissipation
20 W
operating time
40...80 ms closing for with LX1/LX9 coil
100...200 ms opening for with LX1/LX9 coil
60...70 ms closing for with LX4 coil
40...50 ms opening for with LX4 coil
mounting support
Plate
standards
EN 60947-4-1
IEC 60947-4-1
IEC 60947-1
JIS C8201-4-1
EN 60947-1
product certifications
ABS
UL
RINA
DNV
CSA
CB
LROS (Lloyds register of shipping)
BV
RMRoS
UKCA
connections - terminals
Power circuit: bar 2 cable(s) - busbar cross section: 60 x 5 mm
Power circuit: bolted connection
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm²solid without cable end
Control circuit: screw clamp terminals 1 cable(s) 1…4 mm²
Control circuit: screw clamp terminals 2 cable(s) 1…4 mm²
tightening torque
Power circuit: 58 N.m
Control circuit: 1.2 N.m
mechanical durability
5 Mcycles
inrush power in VA
1500…1730 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
1420…1920 VA (at 20 °C)with LX4 coil
hold-in power consumption in VA
20…25 VA, 40...400 Hz cos phi 0.9 (at 20 °C)with LX1/LX9 coil
6.5…12.5 VA (at 20 °C)with LX4 coil
maximum operating rate
1200 cyc/h 55 °C
compatibility code
LC1F
Environment (see above)
IP degree of protection
IP20 front face with shrouds conforming to IEC 60529
IP20 front face with shrouds conforming to VDE 0106
protective treatment
TH
ambient air temperature for operation
-5…55 °C
ambient air temperature for storage
-60…80 °C
permissible ambient air temperature around the device
-40…70 °C
operating altitude
3000 m without derating
mechanical robustness
Vibrations contactor open: 2 Gn, 5...300 Hz
Vibrations contactor closed: 4 Gn, 5...300 Hz
Shocks contactor open: 6 Gn for 1/2 sine wave (11 ms)
Shocks contactor closed: 15 Gn for 1/2 sine wave (11 ms)
height
304 mm
width
309 mm
depth
255 mm
net weight
18.6 kg
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
17.11 kg
Package 1 Height
34 cm
Package 1 width
34 cm
Package 1 Length
45 cm
Unit Type of Package 2
P06
Number of Units in Package 2
4
Package 2 Weight
76.94 kg
Package 2 Height
80 cm
Package 2 width
80 cm
Package 2 Length
60 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider TeSys F contactor - 3P(3 NO) - AC-3 - <= 440 V 630 A - without coil

# of Pole 3
