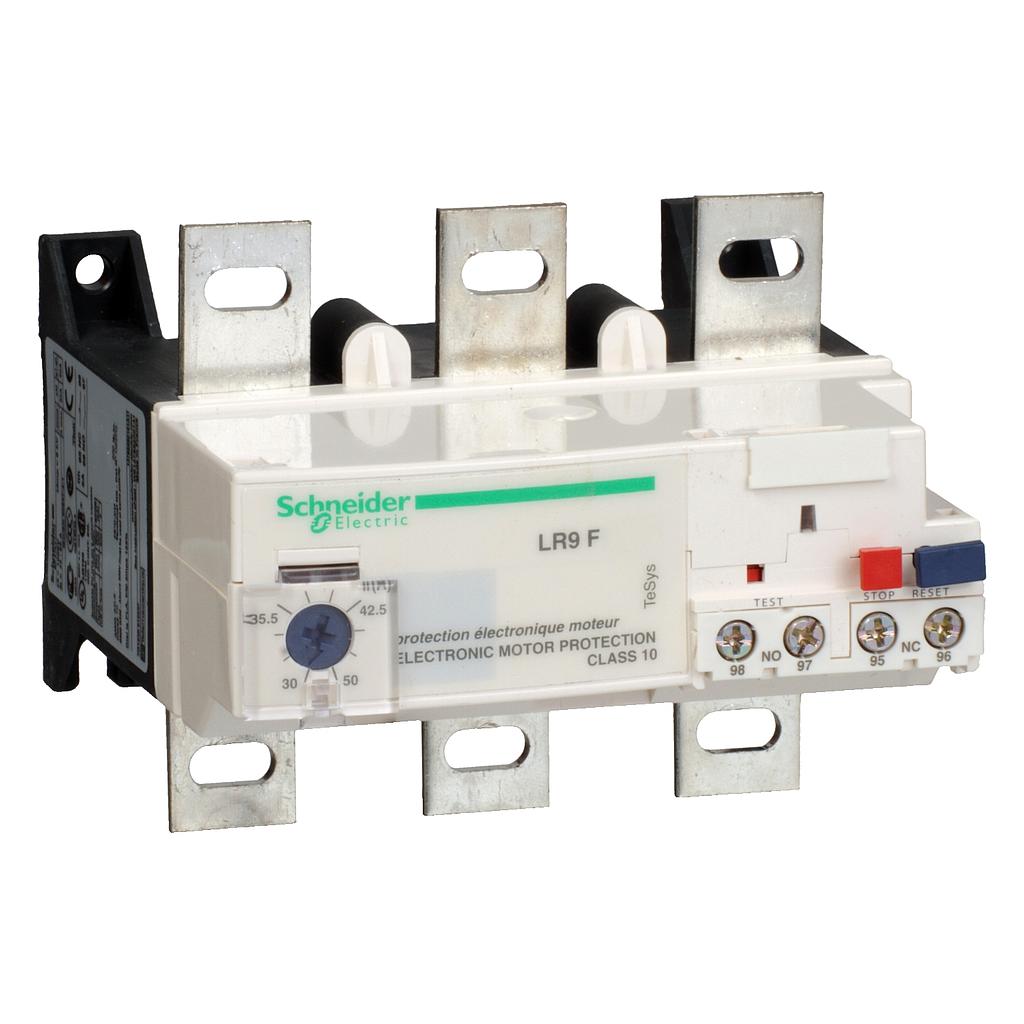

  4. Schneider TeSys LRF - electronic thermal overload relay - 30...50 A - class 10

Schneider TeSys LRF - electronic thermal overload relay - 30...50 A - class 10

Rp 11.060.040,00 Rp 4.866.417,00 4866417 IDR

Rp 11.060.040,00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider TeSys LRF - electronic thermal overload relay - 30...50 A - class 10
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 4.866.417,00
    56.00 % Rp 11.060.040,00 4866417 IDR

    Rp 11.060.040,00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 5
    Keranjang Beli Sekarang
    Spesifikasi

    [Deskripsi] 1. product name : TeSys LRF 2. device short name : LR9F 3. product or component type : Electronic thermal overload relay 4. relay application : Motor protection 5. product compatibility : LC1F115...LC1F185 6. network type : AC 7. thermal overload class : Class 10 conforming to IEC 60947-4 8. thermal protection adjustment range : 30…50 A 9. network frequency : 50/60 Hz 10. supply voltage limits : 17…32 V 11. mounting support : -Direct on contactor -Plate 12. tripping threshold : 1.12 +/- 0.06 In tripping conforming to IEC 60947-4-1 13. surge withstand : 4 kV conforming to IEC 61000-4-5 14. contacts type and composition : 1 NO + 1 NC 15. [Ith] conventional free air thermal current : 5 A for control circuit 16. [Ue] rated operational voltage : 1000 V AC 50/60 Hz for power circuit conforming to VDE 0110 group C 17. [Ui] rated insulation voltage : Power circuit: 1000 V AC conforming to IEC 60947-4 18. [Uimp] rated impulse withstand voltage : 8 kV conforming to IEC 60947-1 19. phase failure sensitivity : Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1 20. reset : Manual reset on front relay 21. control type : -Dial white full-load current adjustment -Test button red -Push-button red reset -Push-button stop 22. local signalling : Trip indicator 23. temperature compensation : -20…70 °C 24. current consumption : <= 5 mA no-load 25. switching capacity for alarm : 0...150 mA 26. maximum voltage drop : <2.5 V closed state 27. connections - terminals : -Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: flexible - with cable end -Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: solid -Control circuit: screw clamp terminals 1 cable 0.75…4 mm² - cable stiffness: flexible - without cable end -Control circuit: screw clamp terminals 2 cable 1…1.5 mm² - cable stiffness: flexible - with cable end -Control circuit: screw clamp terminals 2 cable 1…2.5 mm² - cable stiffness: flexible - without cable end -Control circuit: screw clamp terminals 2 cable 1 mm² - cable stiffness: solid -Power circuit: lugs-ring terminals M6 28. tightening torque : -Control circuit: 1.2 N.m on screw clamp terminals -Power circuit: 10 N.m on screw clamp terminals 29. height : 96 mm 30. width : 115 mm 31. depth : 123.5 mm 32. net weight : 0.885 kg


    Main (see above)
    range
    TeSys
    product name
    TeSys LRF
    device short name
    LR9F
    product or component type
    Electronic thermal overload relay
    relay application
    Motor protection
    product compatibility
    LC1F115...LC1F185
    network type
    AC
    thermal overload class
    Class 10 conforming to IEC 60947-4
    thermal protection adjustment range
    30…50 A
    Complementary (see above)
    network frequency
    50/60 Hz
    mounting support
    Direct on contactor
    Plate
    tripping threshold
    1.12 +/- 0.06 In tripping conforming to IEC 60947-4-1
    surge withstand
    4 kV conforming to IEC 61000-4-5
    contacts type and composition
    1 NO + 1 NC
    [Ith] conventional free air thermal current
    5 A for control circuit
    [Ue] rated operational voltage
    1000 V AC 50/60 Hz for power circuit conforming to VDE 0110 group C
    [Ui] rated insulation voltage
    Power circuit: 1000 V AC conforming to IEC 60947-4
    [Uimp] rated impulse withstand voltage
    IEC 60947-1 8 kV
    phase failure sensitivity
    Tripping in 4 s +/- 20 % conforming to IEC 60947-4-1
    reset
    Manual reset on front relay
    control type
    Dial white full-load current adjustment
    Test button red
    Push-button red reset
    Push-button stop
    local signalling
    Trip indicator
    temperature compensation
    -20…70 °C
    current consumption
    <= 5 mA no-load
    switching capacity for alarm
    0...150 mA
    maximum voltage drop
    <2.5 V closed state
    connections - terminals
    Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: flexible - with cable end
    Control circuit: screw clamp terminals 1 cable 0.75…2.5 mm² - cable stiffness: solid
    Control circuit: screw clamp terminals 1 cable 0.75…4 mm² - cable stiffness: flexible - without cable end
    Control circuit: screw clamp terminals 2 cable 1…1.5 mm² - cable stiffness: flexible - with cable end
    Control circuit: screw clamp terminals 2 cable 1…2.5 mm² - cable stiffness: flexible - without cable end
    Control circuit: screw clamp terminals 2 cable 1 mm² - cable stiffness: solid
    Power circuit: lugs-ring terminals M6
    tightening torque
    Control circuit: 1.2 N.m on screw clamp terminals
    Power circuit: 10 N.m on screw clamp terminals
    height
    96 mm
    width
    115 mm
    depth
    123.5 mm
    net weight
    0.885 kg
    Environment (see above)
    standards
    IEC 60255-8
    IEC 60947-4-1
    VDE 0660
    IEC 60255-17
    EN 60947-4-1
    product certifications
    CSA
    UL
    UKCA
    protective treatment
    TH
    IP degree of protection
    IP20 conforming to IEC 60529
    IP20 conforming to VDE 0106
    ambient air temperature for operation
    -20…55 °C conforming to IEC 60255-8
    ambient air temperature for storage
    -40…85 °C
    operating altitude
    <= 2000 m without derating
    fire resistance
    850 °C conforming to IEC 60695-2-1
    mechanical robustness
    Shocks: 13 Gn for 11 ms conforming to IEC 60068-2-7
    Vibrations 5...300 Hz: 2 Gn conforming to IEC 60068-2-6
    dielectric strength
    6 kV 50 Hz conforming to IEC 255-5
    electromagnetic compatibility
    Resistance to electrostatic discharge: 6 kV in indirect mode conforming to IEC 61000-4-2
    Resistance to electrostatic discharge: 8 kV in air conforming to IEC 61000-4-2
    Radiated radio-frequency electromagnetic field immunity test: 10 V/m conforming to IEC 61000-4-3
    Fast transients immunity test: 2 kV conforming to IEC 61000-4-4
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    779 g
    Package 1 Height
    13.5 cm
    Package 1 width
    15 cm
    Package 1 Length
    16 cm
    Unit Type of Package 2
    S04
    Number of Units in Package 2
    12
    Package 2 Weight
    10.218 kg
    Package 2 Height
    30 cm
    Package 2 width
    40 cm
    Package 2 Length
    60 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    PVC free
    Yes
    California proposition 65
    WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
    Contractual warranty (see above)
    Warranty
    12 months
