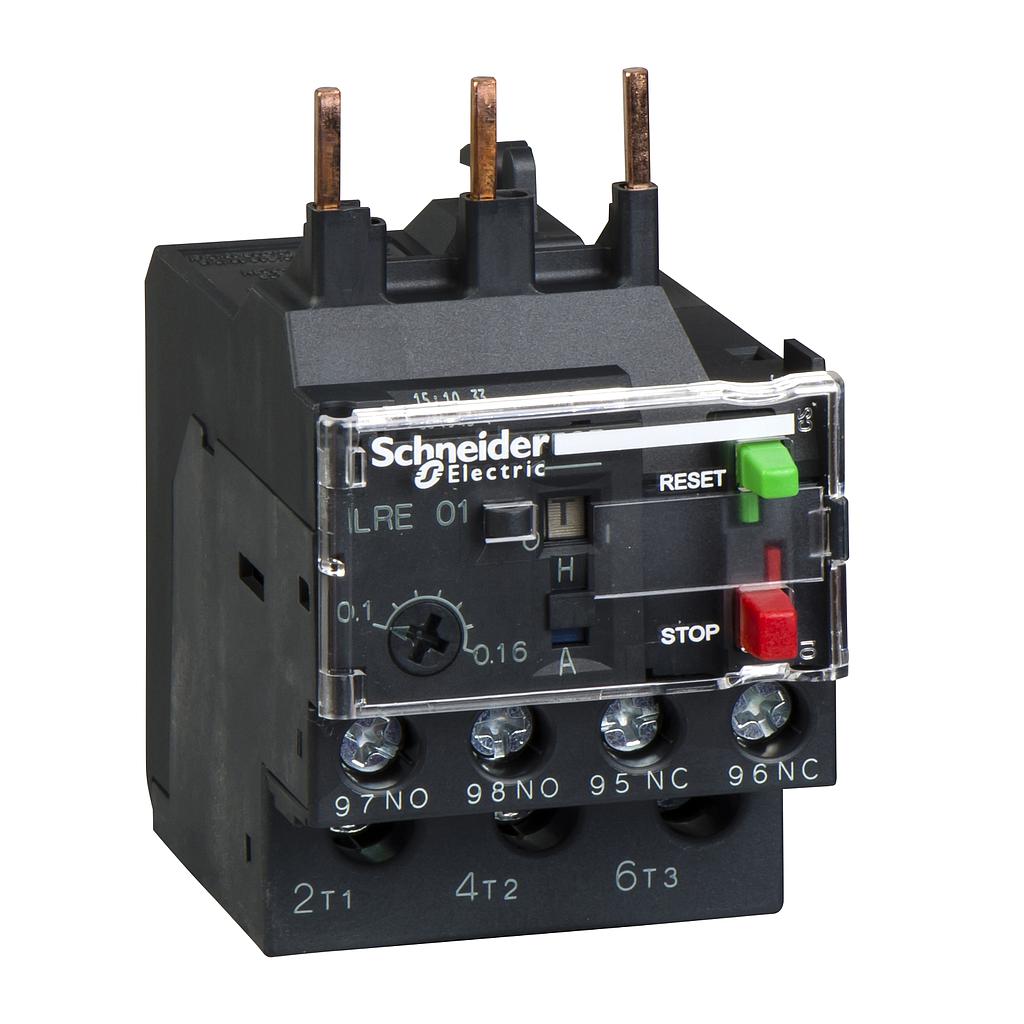

Schneider EasyPact TVS differential thermal overload relay 0.1...0.16 A - class 10A

Rp 517,914.00 Rp 290,031.00 290031 IDR

Rp 517,914.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider EasyPact TVS differential thermal overload relay 0.1...0.16 A - class 10A
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 290,031.00
    44.00 % Rp 517,914.00 290031 IDR

    Rp 517,914.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 20
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range
    EasyPact
    product name
    EasyPact TVS
    product or component type
    Differential thermal overload relay
    device short name
    LRE
    relay application
    Motor protection
    phase failure sensitivity
    Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
    colour
    Grey (RAL 7011)
    Complementary (see above)
    product compatibility
    LC1E06...38
    network type
    AC
    network frequency
    50...60 Hz
    mounting support
    Under contactor
    Plate, with specific accessories
    Rail, with specific accessories
    thermal overload class
    Class 10A conforming to IEC 60947-4-1
    signalling function
    Relay trip indicator
    thermal protection adjustment range
    0.1…0.16 A
    tripping threshold
    1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
    mechanical robustness
    Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
    Vibrations: 3 Gn conforming to IEC 60068-2-6
    auxiliary contact composition
    1 NO + 1 NC
    [Ith] conventional free air thermal current
    5 A for signalling circuit
    [Ue] rated operational voltage
    <= 690 V AC
    associated fuse rating
    2 A gG for power circuit
    0.25 A aM for power circuit
    5 A gG for signalling circuit
    [Ui] rated insulation voltage
    690 V conforming to IEC 60947-4-1
    [Uimp] rated impulse withstand voltage
    6 kV
    local signalling
    Trip indicator
    control type
    Push-button red stop:
    Push-button green reset:
    temperature compensation
    -20…60 °C
    connections - terminals
    Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end
    Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
    Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
    Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
    Recommended tightening torque
    Power circuit: 1.7 N.m - on screw clamp terminals
    Signalling circuit: 1.7 N.m - on screw clamp terminals
    height
    44.5 mm
    width
    45 mm
    depth
    70 mm
    net weight
    0.13 kg
    Environment (see above)
    standards
    IEC 60947-4-1
    IEC 60947-5-1
    product certifications
    EAC
    protective treatment
    TH conforming to IEC 60068
    IP degree of protection
    IP20 conforming to IEC 60529
    ambient air temperature for operation
    -20…60 °C without derating conforming to IEC 60947-4-1
    -20…70 °C with derating
    ambient air temperature for storage
    -60…80 °C
    fire resistance
    850 °C conforming to IEC 60068-2-1
    dielectric strength
    6 kV at 50 Hz conforming to IEC 60255-5
    electromagnetic compatibility
    Surge withstand: 6 kV conforming to IEC 60801-5
    Packing Units (see above)
    Package 1 Weight
    0.154 kg
    Package 1 Height
    0.550 dm
    Package 1 width
    0.800 dm
    Package 1 Length
    0.850 dm
    Offer Sustainability (see above)
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
    Product out of China RoHS scope. Substance declaration for your information
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
