[Deskripsi] 1. product name : EasyPact TVS 2. product or component type : Differential thermal overload relay 3. device short name : LRE 4. relay application : Motor protection 5. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 6. colour : Grey (RAL 7011) 7. product compatibility : LC1E65...95 8. network type : AC 9. network frequency : 50...60 Hz 10. mounting support : -Under contactor -Plate, with specific accessories -Rail, with specific accessories 11. thermal overload class : Class 10A conforming to IEC 60947-4-1 12. signalling function : Relay trip indicator 13. thermal protection adjustment range : 48…65 A 14. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 15. mechanical robustness : -Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 -Vibrations: 3 Gn conforming to IEC 60068-2-6 16. auxiliary contact composition : 1 NO + 1 NC 17. [Ith] conventional free air thermal current : 5 A for signalling circuit 18. [Ue] rated operational voltage : <= 690 V AC 19. associated fuse rating : -100 A gG for power circuit -63 A aM for power circuit -5 A gG for signalling circuit 20. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 21. [Uimp] rated impulse withstand voltage : 6 kV 22. local signalling : Trip indicator 23. control type : -Stop: red push-button -Reset: green push-button 24. temperature compensation : -20…60 °C 25. connections - terminals : -Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end 26. tightening torque : -Power circuit: 1.7 N.m - on screw clamp terminals -Signalling circuit: 1.7 N.m - on screw clamp terminals 27. height : 54 mm 28. width : 70 mm 29. depth : 113 mm 30. net weight : 0.47 kg
| range | EasyPact | |
|---|---|---|

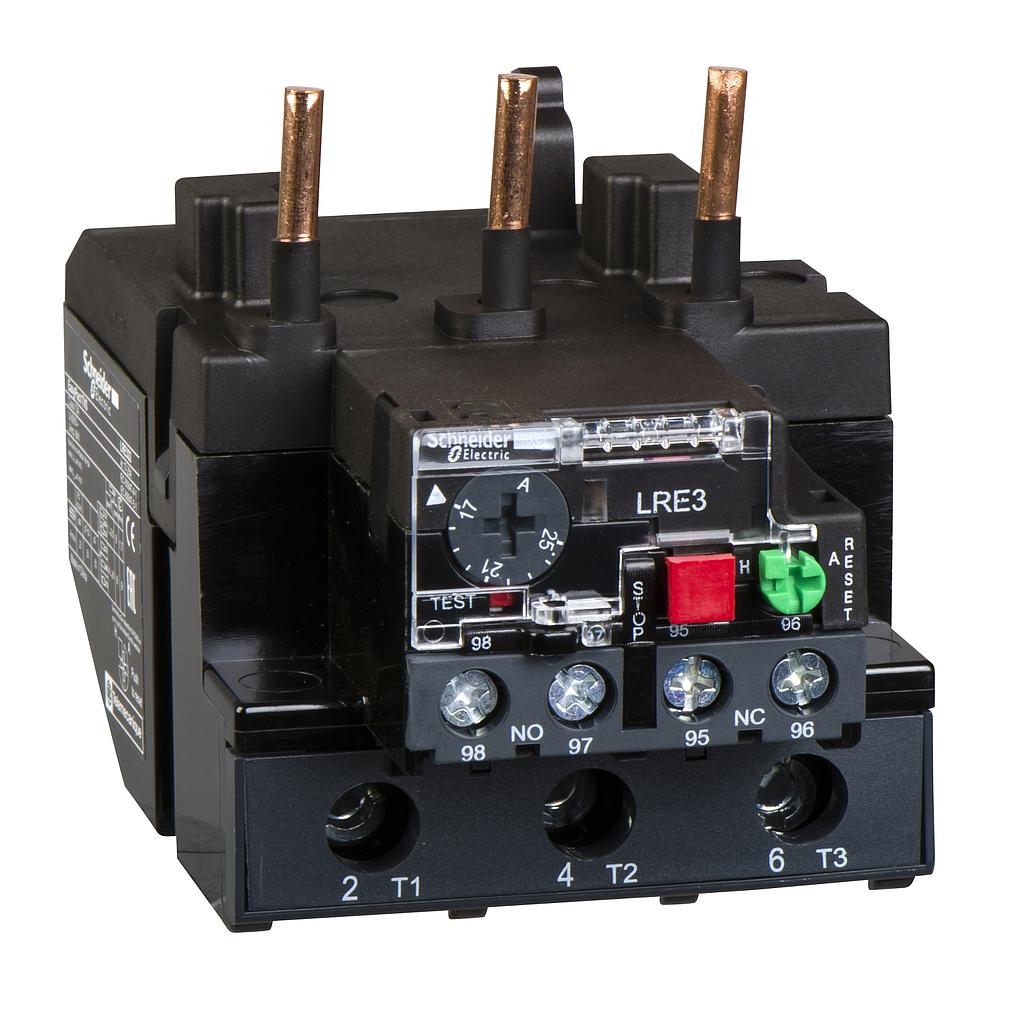

| product name | EasyPact TVS | |
| product or component type | Differential thermal overload relay | |
| device short name | LRE | |
| relay application | Motor protection | |
| phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| product compatibility | LC1E65...95 | |
|---|---|---|
| network type | AC | |
| network frequency | 50...60 Hz | |
| mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories | |
| thermal overload class | Class 10A conforming to IEC 60947-4-1 | |
| signalling function | Relay trip indicator | |
| thermal protection adjustment range | 48…65 A | |
| tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 | |
| mechanical robustness | Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 Gn conforming to IEC 60068-2-6 | |
| auxiliary contact composition | 1 NO + 1 NC | |
| [Ith] conventional free air thermal current | 5 A for signalling circuit | |
| [Ue] rated operational voltage | <= 690 V AC | |
| associated fuse rating | 100 A gG for power circuit 63 A aM for power circuit 5 A gG for signalling circuit | |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 | |
| [Uimp] rated impulse withstand voltage | 6 kV | |
| local signalling | Trip indicator | |
| control type | Push-button red stop: Push-button green reset: | |
| temperature compensation | -20…60 °C | |
| connections - terminals | Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 4…35 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 4…35 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 4…35 mm² - cable stiffness: solid without cable end | |
| Recommended tightening torque | Power circuit: 9 N.m - on screw clamp terminals Signalling circuit: 1.7 N.m - on screw clamp terminals | |
| height | 54 mm | |
| width | 70 mm | |
| depth | 113 mm | |
| net weight | 0.46 kg |
| standards | IEC 60947-4-1 IEC 60947-5-1 | |
|---|---|---|
| product certifications | EAC | |
| protective treatment | TH conforming to IEC 60068 | |
| IP degree of protection | IP20 conforming to IEC 60529 | |
| ambient air temperature for operation | -20…60 °C without derating conforming to IEC 60947-4-1 -20…70 °C with derating | |
| ambient air temperature for storage | -60…80 °C | |
| fire resistance | 850 °C conforming to IEC 60068-2-1 | |
| dielectric strength | 6 kV at 50 Hz conforming to IEC 60255-5 | |
| electromagnetic compatibility | Surge withstand: 6 kV conforming to IEC 60801-5 |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 481 g | |
| Package 1 Height | 8 cm | |
| Package 1 width | 8.8 cm | |
| Package 1 Length | 12.7 cm |
| REACh Regulation | ||
|---|---|---|
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Product out of China RoHS scope. Substance declaration for your information | |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
