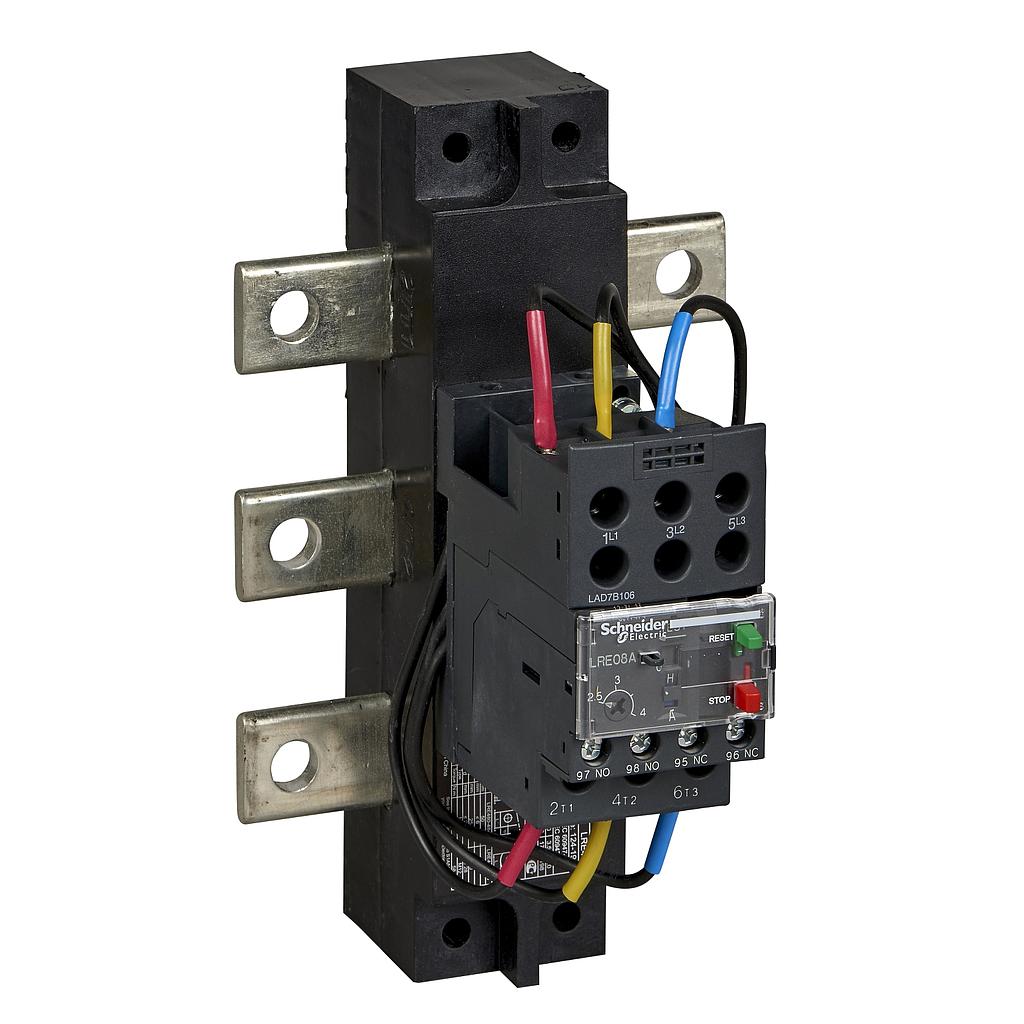

Schneider EasyPact TVS differential thermal overload relay 124...198 A - class 10A

Terjual 0

0 (0 Rating)

Ulasan (0)

Rp 4,632,194.00
44.00 % Rp 8,271,775.00 4632194 IDR

Rp 8,271,775.00

Atur Jumlah & Catatan

Stock Total: 8

Keranjang Beli Sekarang

Spesifikasi

[Deskripsi] 1. product name : EasyPact TVS 2. product or component type : Differential thermal overload relay 3. device short name : LRE 4. relay application : Motor protection 5. phase failure sensitivity : Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 6. colour : Grey (RAL 7011) 7. product compatibility : LC1E160...630 8. network type : AC 9. network frequency : 50...60 Hz 10. mounting support : -Under contactor -Plate, with specific accessories -Rail, with specific accessories 11. thermal overload class : Class 10A conforming to IEC 60947-4-1 12. signalling function : Relay trip indicator 13. thermal protection adjustment range : 124…198 A 14. tripping threshold : 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 15. mechanical robustness : -Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 -Vibrations: 3 Gn conforming to IEC 60068-2-6 16. auxiliary contact composition : 1 NO + 1 NC 17. [Ith] conventional free air thermal current : 5 A for signalling circuit 18. [Ue] rated operational voltage : <= 690 V AC 19. associated fuse rating : -250 A gG for power circuit -200 A aM for power circuit -5 A gG for signalling circuit 20. [Ui] rated insulation voltage : 690 V conforming to IEC 60947-4-1 21. [Uimp] rated impulse withstand voltage : 6 kV 22. local signalling : Trip indicator 23. control type : -Stop: red push-button -Reset: green push-button 24. temperature compensation : -20…60 °C 25. connections - terminals : -Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end -Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end -Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: solid without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end -Signalling circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end 26. tightening torque : -Power circuit: 1.7 N.m - on screw clamp terminals -Signalling circuit: 1.7 N.m - on screw clamp terminals 27. height : 131 mm 28. width : 180 mm 29. depth : 134 mm 30. net weight : 2.1 kg

https://www.se.com/id/en/product/LRE483
