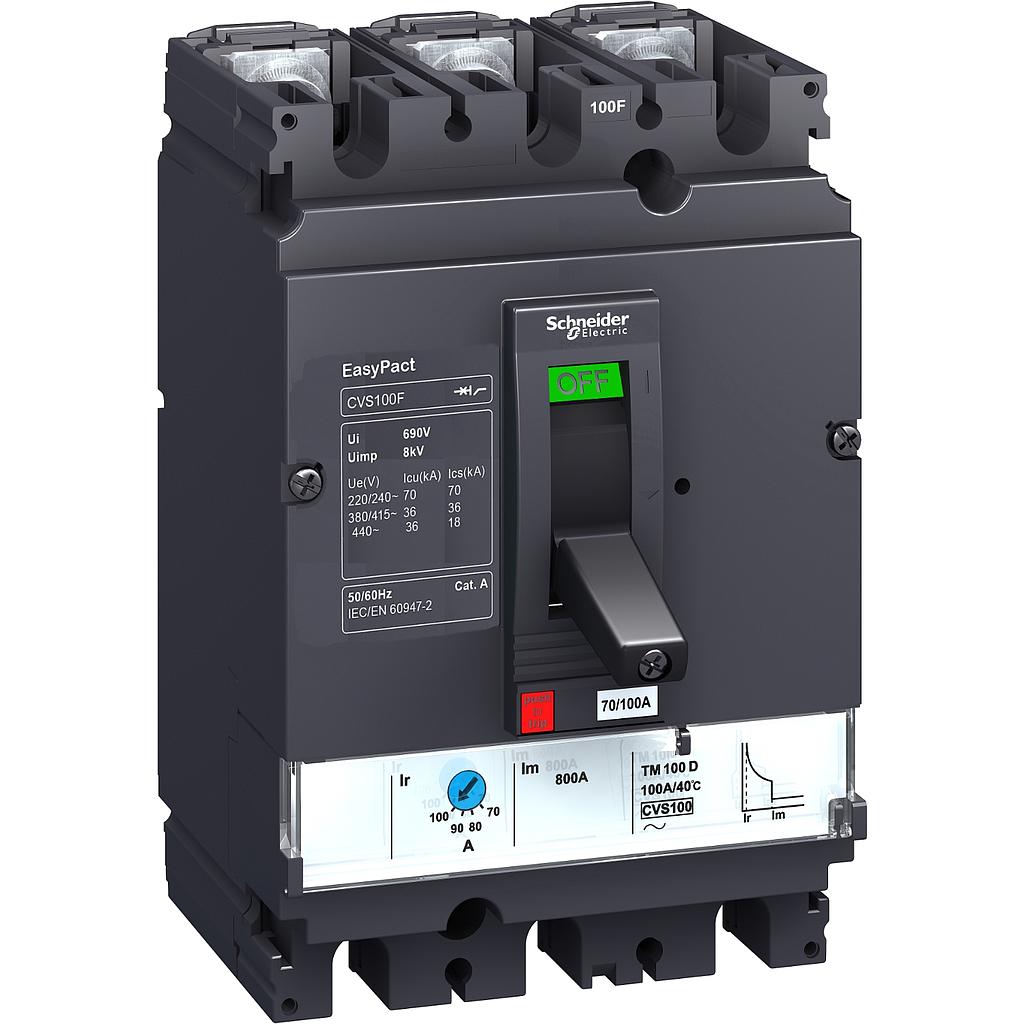

  4. CVS
  5. Schneider EasyPact CVS CVS100F 3P 80A 36KA TMD

Schneider EasyPact CVS CVS100F 3P 80A 36KA TMD

# of Pole : 3

Arus Nominal (In) : 80A

Icu (kA) : 36

Rp 1,975,622.00 Rp 1,027,323.00 1027323 IDR

Rp 1,975,622.00

Option not available

  • # of Pole
  • Arus Nominal (In)
  • Icu (kA)

This combination does not exist.

Add to Cart

Schneider EasyPact CVS CVS100F 3P 80A 36KA TMD
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 1,027,323.00
48.00 % Rp 1,975,622.00 1027323 IDR

Rp 1,975,622.00

Option not available

Atur Jumlah & Catatan
Stock Total: 32

# of Pole : 3

Arus Nominal (In) : 80A

Icu (kA) : 36

Keranjang Beli Sekarang
Spesifikasi

Schneider Electric EasyPact CVS MCCB 100-250 F (36kA) TM80D - 3P/3d - LV510336 [Deskripsi] EasyPact CVS, Molded-Case Circuit Breakers (MCCB) dengan pengaturan yang dapat disesuaikan, untuk nilai 100 hingga 630 A, ideal untuk aplikasi di bangunan kecil hingga menengah. Memenuhi standard IEC 60947-2. [Spesifikasi] 1. network frequency : 50/60 Hz 2. control type : Toggle 3. mounting mode : Fixed 4. mounting support : Backplate 5. upside connection : Front 6. downside connection : Front 7. connections - terminals : Screw connection 8. [Uimp] rated impulse withstand voltage : 8 kV conforming to EN/IEC 60947-2 9. thermal protection adjustment range : 56...80 A 10. [Ics] rated service breaking capacity : -18 kA conforming to IEC 60947-2 440 V AC 50/60 Hz -36 kA conforming to IEC 60947-2 380/415 V AC 50/60 Hz -70 kA conforming to IEC 60947-2 220/240 V AC 50/60 Hz 11. mechanical durability : 30000 cycles 12. electrical durability : 12000 cycles conforming to IEC 60947-2 415 V In 13. connection pitch : 35 mm 14. contact position indicator :Yes 15. long time pick-up adjustment type Ir : Adjustable 16. long time pick-up adjustment range : 0.7...1 x In 17. long time delay adjustment type : Fixed 18. instantaneous pick-up adjustment type Ii : Fixed 19. instantaneous pick-up adjustment range : 640 A 20. height : 161 mm 21. width : 105 mm 22. depth : 86 mm 23. product weight : 1.8 kg


Main (see above)
range of product
Easypact CVS100...250
product or component type
Circuit breaker
device short name
CVS100F
device application
Distribution
poles description
3P
protected poles description
3d
Earth leakage protection (Vigi add on)
Without
[In] rated current
100 A at 40 °C
breaking capacity code
F
network type
AC
[Icu] Breaking capacity
36 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
utilisation category
Category A
trip unit name
TM-D
trip unit technology
Thermal-magnetic
trip unit rating
80 A at 40 °C
protection type
Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary (see above)
network frequency
50/60 Hz
control type
Toggle
mounting mode
Fixed
mounting support
Backplate
upside connection
Front
downside connection
Front
connections - terminals
Screw connection
[Uimp] rated impulse withstand voltage
8 kV conforming to EN/IEC 60947-2
thermal protection adjustment range
56…80 A
[Ics] rated service breaking capacity
18 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
70 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
mechanical durability
30000 cycles
electrical durability
12000 cycles 415 V In conforming to IEC 60947-2
connection pitch
35 mm
contact position indicator
Yes
long time pick-up adjustment type Ir
Adjustable
long time pick-up adjustment range
0.7...1 x In
long time delay adjustment type
Fixed
instantaneous pick-up adjustment type Ii
Fixed
instantaneous pick-up adjustment range
640 A
height
161 mm
width
105 mm
depth
86 mm
net weight
1.8 kg
Environment (see above)
electrical shock protection class
Class II
standards
EN 60947-2
IEC 60947-2
product certifications
GOST
IEC
IP degree of protection
IP40
pollution degree
3 conforming to IEC 60664-1
ambient air temperature for operation
-25…70 °C
ambient air temperature for storage
-50…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
1.68 kg
Package 1 Height
11 cm
Package 1 width
14 cm
Package 1 Length
19 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider EasyPact CVS CVS100F 3P 80A 36KA TMD

# of Pole 3
Arus Nominal (In) 80A
Icu (kA) 36
