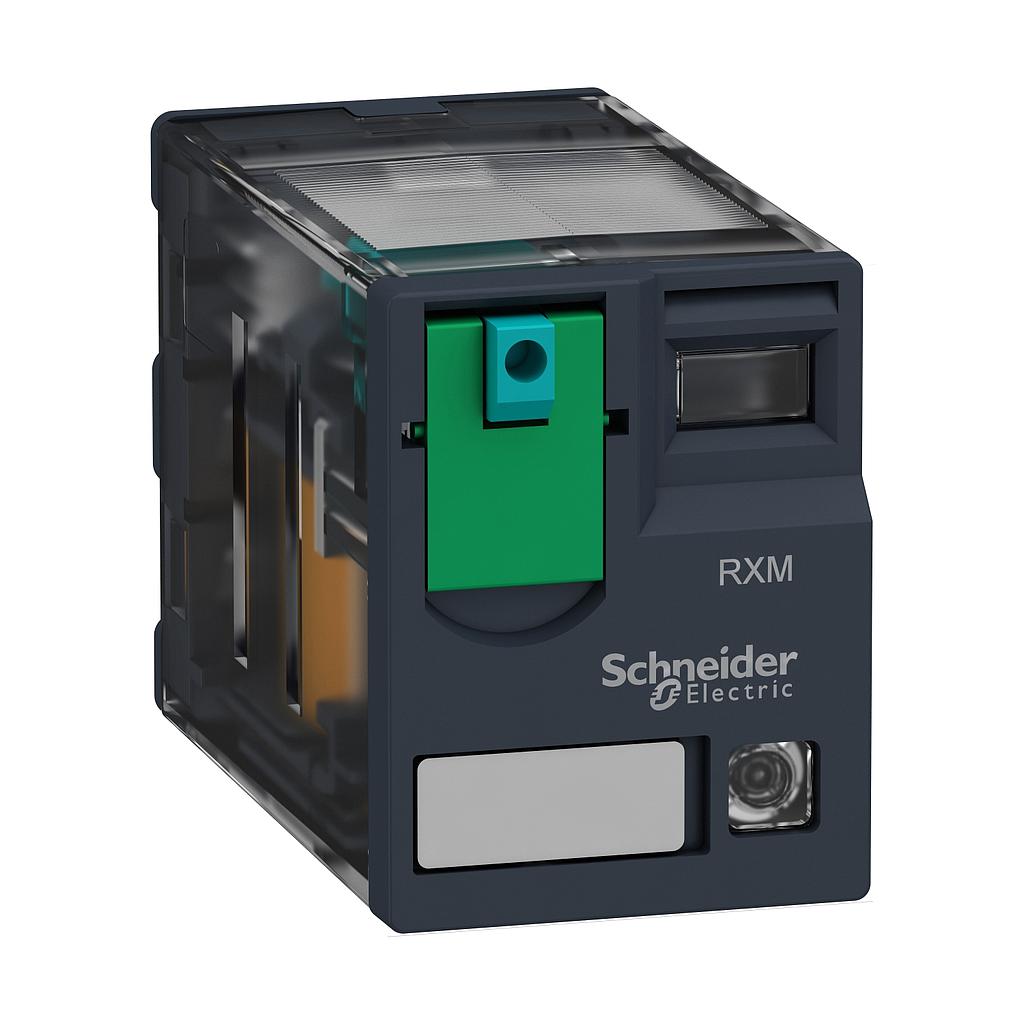

Schneider Miniature Plug-in relay - Zelio RXM 3 C/O 12 V DC 10 A with LED

Rp 173,781.00 Rp 100,792.00 100792 IDR

Rp 173,781.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Miniature Plug-in relay - Zelio RXM 3 C/O 12 V DC 10 A with LED
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 100,792.00
    42.00 % Rp 173,781.00 100792 IDR

    Rp 173,781.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 28
    Spesifikasi
    Main (see above)
    range of product
    Harmony Electromechanical Relays
    series name
    Miniature
    product or component type
    Plug-in relay
    device short name
    RXM
    contacts type and composition
    3 C/O
    [Uc] control circuit voltage
    12 V DC
    [Ithe] conventional enclosed thermal current
    10 A -40…131 °F (-40…55 °C)
    status LED
    With
    control type
    Lockable test button
    utilisation coefficient
    20 %
    Complementary (see above)
    shape of pin
    Flat
    [Ui] rated insulation voltage
    250 V IEC
    300 V CSA
    300 V UL
    [Uimp] rated impulse withstand voltage
    4 kV 1.2/50 µs
    contacts material
    AgNi
    [Ie] rated operational current
    10 A 28 V DC) NO IEC
    10 A 250 V AC) NO IEC
    5 A 28 V DC) NC IEC
    5 A 250 V AC) NC IEC
    10 A 30 V DC) UL
    10 A 277 V AC) UL
    maximum switching voltage
    250 V IEC
    resistive rated load
    10 A 250 V AC
    10 A 28 V DC
    maximum switching capacity
    2500 VA/280 W
    minimum switching capacity
    170 mW 10 mA, 17 V
    operating rate
    <= 1200 cycles/hour under load
    <= 18000 cycles/hour no-load
    mechanical durability
    10000000 cycles
    electrical durability
    100000 cycles resistive
    average coil consumption in W
    0.9 W
    drop-out voltage threshold
    >= 0.1 Uc
    operate time
    20 ms
    release time
    20 ms
    average coil resistance
    160 Ohm 20 °C +/- 10 %
    rated operational voltage limits
    9.6...13.2 V DC
    safety reliability data
    B10d = 100000
    protection category
    RT I
    test levels
    Level A
    operating position
    Any position
    CAD overall height
    3.11 in (79 mm)
    CAD overall depth
    3.09 in (78.45 mm)
    Net Weight
    0.08 lb(US) (0.037 kg)
    device presentation
    Complete product
    Environment (see above)
    dielectric strength
    1300 V AC between contacts with micro disconnection
    2000 V AC between coil and contact
    2000 V AC between poles
    product certifications
    GOST
    Lloyd's
    CE
    CSA
    UL
    standards
    UL 508
    EN/IEC 61810-1
    CSA C22.2 No 14
    ambient air temperature for storage
    -40…185 °F (-40…85 °C)
    ambient air temperature for operation
    -40…131 °F (-40…55 °C)
    vibration resistance
    3 gn +/- 1 mm 10…150 Hz)5 cycles in operation
    5 gn +/- 1 mm 10…150 Hz)5 cycles not operating
    IP degree of protection
    IP40 conforming to EN/IEC 60529
    shock resistance
    10 gnin operation
    30 gnnot operating
    pollution degree
    2
    Ordering and shipping details (see above)
    Category
    21127 - ZELIO ICE CUBE RELAYS
    Discount Schedule
    CP2
    GTIN
    03389119403689
    Nbr. of units in pkg.
    1
    Package weight(Lbs)
    1.38 oz (39 g)
    Returnability
    No
    Country of origin
    CN
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Package 1 Height
    1.61 in (41 mm)
    Package 1 width
    1.10 in (28 mm)
    Package 1 Length
    0.83 in (21 mm)
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    California proposition 65
    WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Contractual warranty (see above)
    Warranty
    12 months
