  2. Signalling
  3. ZELIO
  4. Schneider Discrete I/O extension module - 10 I O - 100..240 V AC - for Zelio Logic

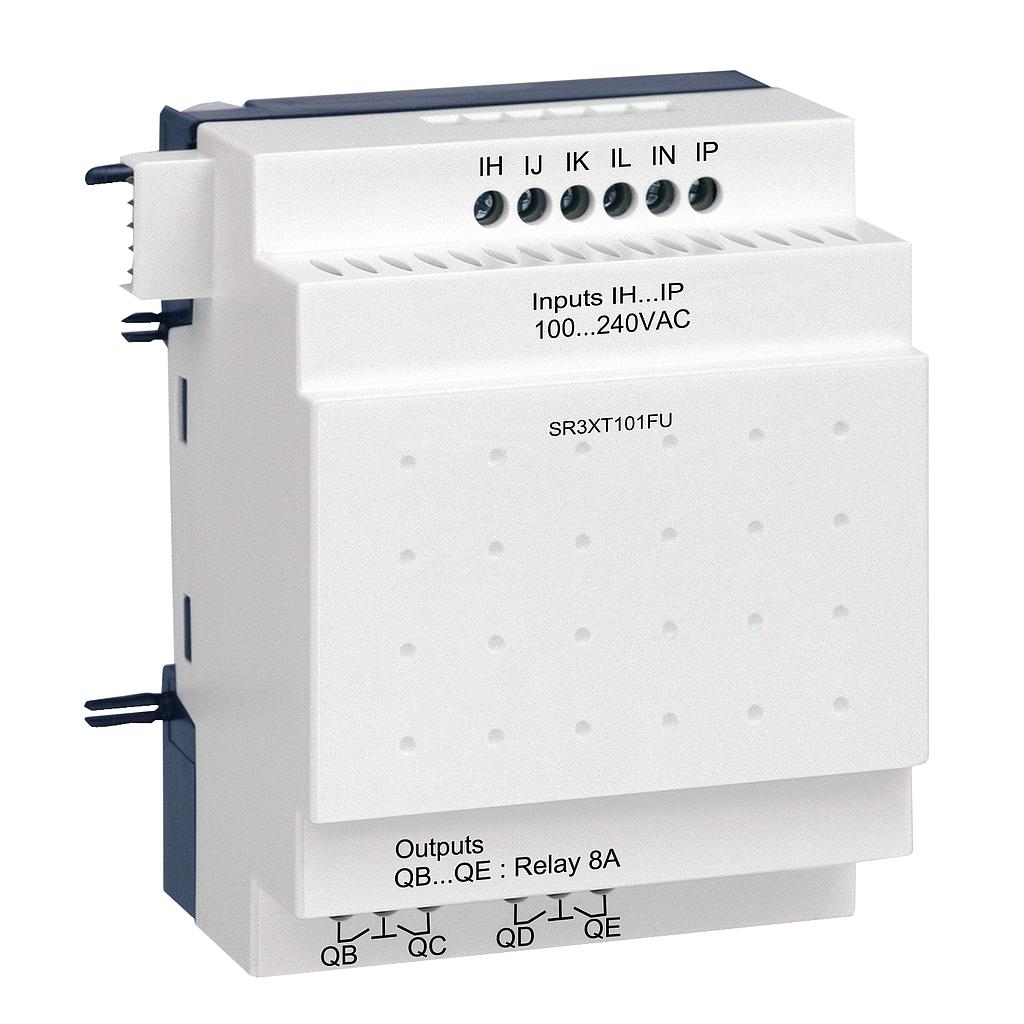

Schneider Discrete I/O extension module - 10 I O - 100..240 V AC - for Zelio Logic

Rp 1,489,491.00 Rp 863,904.00 863904 IDR

Rp 1,489,491.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Discrete I/O extension module - 10 I O - 100..240 V AC - for Zelio Logic
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 863,904.00
    42.00 % Rp 1,489,491.00 863904 IDR

    Rp 1,489,491.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 2
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Zelio Logic
    product or component type
    Discrete I/O extension module
    Complementary (see above)
    number or control scheme lines
    120 with ladder programming
    cycle time
    6…90 ms
    backup time
    10 years at 25 °C
    clock drift
    12 min/year at 0…55 °C
    checks
    Program memory on each power up
    [Us] rated supply voltage
    100...240 V AC
    supply voltage limits
    85…264 V
    supply frequency
    50/60 Hz
    reverse polarity protection
    With
    discrete input number
    6
    discrete input voltage
    100...240 V AC
    discrete input current
    0.6 mA
    discrete input frequency
    47...53 Hz
    57...63 Hz
    voltage state 1 guaranteed
    >= 79 V for discrete input
    voltage state 0 guaranteed
    <= 40 V for discrete input
    current state 1 guaranteed
    >= 0.17 mA (discrete input)
    current state 0 guaranteed
    <= 0.5 mA (discrete input)
    input impedance
    350 kOhm for discrete input
    number of outputs
    4 relay
    output voltage limits
    5...30 V DC (relay output)
    24...250 V AC
    contacts type and composition
    NO for relay output
    output thermal current
    8 A for all 4 outputs for relay output
    electrical durability
    AC-15: 500000 cycles at 230 V, 0.9 A for relay output conforming to EN/IEC 60947-5-1
    AC-12: 500000 cycles at 230 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    DC-13: 500000 cycles at 24 V, 0.6 A for relay output conforming to EN/IEC 60947-5-1
    DC-12: 500000 cycles at 24 V, 1.5 A for relay output conforming to EN/IEC 60947-5-1
    switching capacity in mA
    >= 10 mA at 12 V (relay output)
    operating rate in Hz
    0.1 Hz (at Ie) for relay output
    10 Hz (no load) for relay output
    mechanical durability
    10000000 cycles for relay output
    [Uimp] rated impulse withstand voltage
    4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    response time
    50 ms with ladder programming (from state 0 to state 1) for discrete input
    50 ms with ladder programming (from state 1 to state 0) for discrete input
    50...255 ms with FBD programming (from state 0 to state 1) for discrete input
    50...255 ms with FBD programming (from state 1 to state 0) for discrete input
    10 ms (from state 0 to state 1) for relay output
    5 ms (from state 1 to state 0) for relay output
    connections - terminals
    Screw terminals, 1 x 0.25...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end
    Screw terminals, 2 x 0.25...2 x 0.75 mm² (AWG 24...AWG 18) flexible with cable end
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) semi-solid
    Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 25...AWG 14) solid
    Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) solid
    tightening torque
    0.5 N.m
    overvoltage category
    III conforming to EN/IEC 60664-1
    net weight
    0.2 kg
    Environment (see above)
    product certifications
    GOST
    UL
    CSA
    C-Tick
    GL
    standards
    EN/IEC 60068-2-27 Ea
    EN/IEC 61000-4-12
    EN/IEC 61000-4-3
    EN/IEC 61000-4-2 level 3
    EN/IEC 61000-4-5
    EN/IEC 61000-4-6 level 3
    EN/IEC 60068-2-6 Fc
    EN/IEC 61000-4-11
    EN/IEC 61000-4-4 level 3
    IP degree of protection
    IP20 (terminal block) conforming to IEC 60529
    IP40 (front panel) conforming to IEC 60529
    environmental characteristic
    EMC directive conforming to EN/IEC 61000-6-2
    EMC directive conforming to EN/IEC 61000-6-3
    EMC directive conforming to EN/IEC 61000-6-4
    EMC directive conforming to EN/IEC 61131-2 zone B
    Low voltage directive conforming to EN/IEC 61131-2
    disturbance radiated/conducted
    Class B conforming to EN 55022-11 group 1
    pollution degree
    2 conforming to EN/IEC 61131-2
    ambient air temperature for operation
    -20…40 °C in non-ventilated enclosure conforming to IEC 60068-2-1 and IEC 60068-2-2
    -20…55 °C conforming to IEC 60068-2-1 and IEC 60068-2-2
    ambient air temperature for storage
    -40…70 °C
    operating altitude
    2000 m
    maximum altitude transport
    3048 m
    relative humidity
    95 % without condensation or dripping water
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    185 g
    Package 1 Height
    6.8 cm
    Package 1 width
    9 cm
    Package 1 Length
    10 cm
    Unit Type of Package 2
    S03
    Number of Units in Package 2
    30
    Package 2 Weight
    5.973 kg
    Package 2 Height
    30 cm
    Package 2 width
    30 cm
    Package 2 Length
    40 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    PVC free
    Yes
    Contractual warranty (see above)
    Warranty
    12 months
