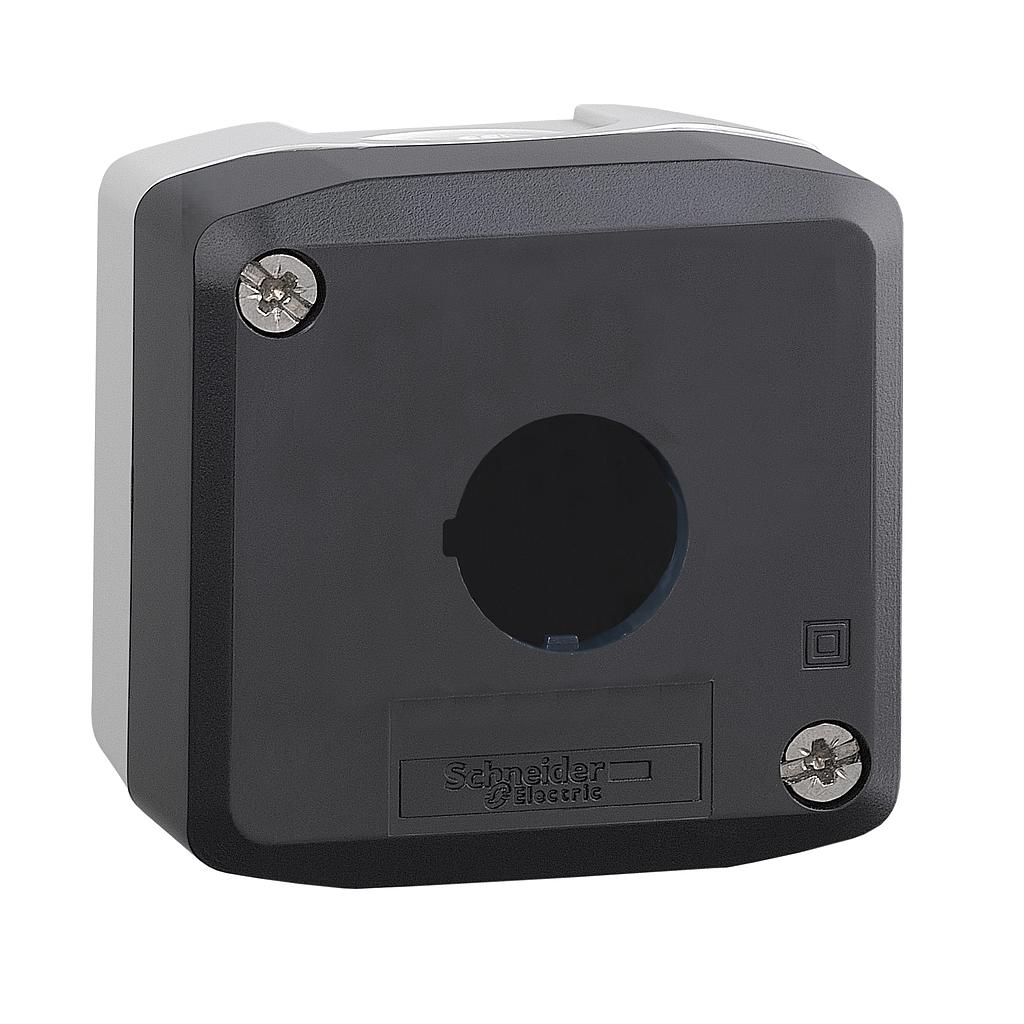

Schneider Dark grey empty enclosure lid - 1 cut-out

Rp 153,773.00 Rp 89,188.00 89188 IDR

Rp 153,773.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Dark grey empty enclosure lid - 1 cut-out
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 89,188.00
    42.00 % Rp 153,773.00 89188 IDR

    Rp 153,773.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: 404
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Harmony XALD
    product or component type
    Empty control station
    device short name
    XALD
    product destination
    For XB5 Ø 22 mm control and signalling units
    number of cut-out
    1 cut-out
    colour of base of enclosure
    Light grey (RAL 7035)
    colour of cover
    Dark grey (RAL 7016)
    material
    Polycarbonate
    cable entry
    1 knock-out for cable entry, clamping capacity: 14 mm
    2 knock-outs for Pg 13 cable gland and ISO M20, clamping capacity: 12 mm
    IP degree of protection
    IP66 conforming to IEC 60529
    IP67
    IP69
    IP69K
    Complementary (see above)
    assembly style
    For customer assembly
    number of horizontal rows
    1
    number of vertical rows
    1
    net weight
    0.136 kg
    resistance to high pressure washer
    7000000 Pa at 55 °C, distance : 0.1 m
    mounting of block
    Rear mounting
    Front mounting
    electrical composition code
    MR1
    SF1
    SF2
    SR2
    PR1
    MF1
    MF2
    PF1
    PF2
    SR1
    main group
    1 cut-out
    group of product
    Standard grey
    Environment (see above)
    protective treatment
    TH
    ambient air temperature for storage
    -40…70 °C
    ambient air temperature for operation
    -40…70 °C
    overvoltage category
    Class II conforming to IEC 60536
    NEMA degree of protection
    NEMA 13
    NEMA 4X
    IK degree of protection
    IK03 conforming to EN 50102
    standards
    EN/IEC 60947-5-5
    EN/IEC 60947-5-4
    CSA C22.2 No 14
    EN/IEC 60947-5-1
    JIS C8201-5-1
    EN/IEC 60947-1
    UL 508
    JIS C8201-1
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    115 g
    Package 1 Height
    7 cm
    Package 1 width
    7 cm
    Package 1 Length
    7.5 cm
    Unit Type of Package 2
    S03
    Number of Units in Package 2
    60
    Package 2 Weight
    7.391 kg
    Package 2 Height
    30 cm
    Package 2 width
    30 cm
    Package 2 Length
    40 cm
    Unit Type of Package 3
    P06
    Number of Units in Package 3
    480
    Package 3 Weight
    69.404 kg
    Package 3 Height
    77 cm
    Package 3 width
    80 cm
    Package 3 Length
    60 cm
    Offer Sustainability (see above)
    Sustainable offer status
    Green Premium product
    REACh Regulation
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    Environmental Disclosure
    Circularity Profile
    Contractual warranty (see above)
    Warranty
    12 months
