  5. Schneider Programmable contacts M6C - for drawout circuit breaker Masterpact NW

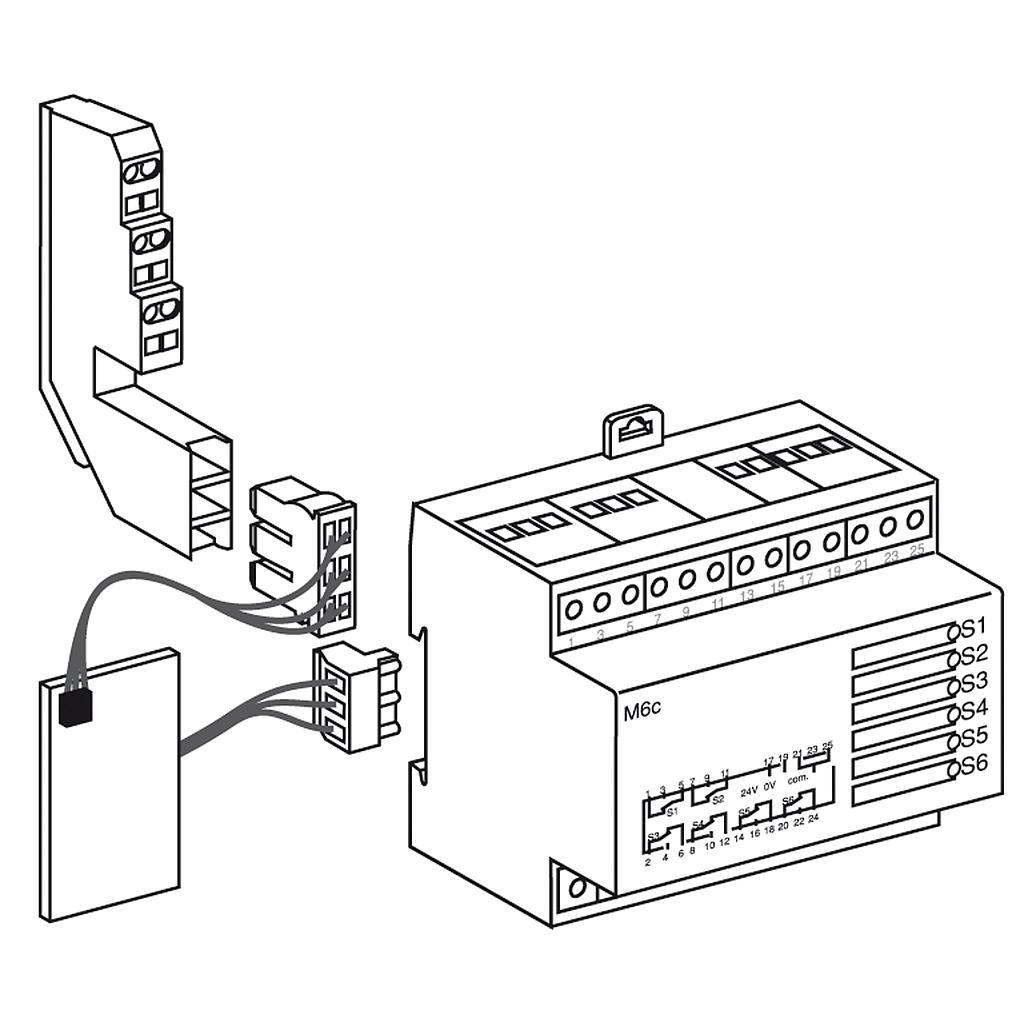

Schneider Programmable contacts M6C - for drawout circuit breaker Masterpact NW

Rp 8,747,388.00 Rp 4,548,641.00 4548641 IDR

Rp 8,747,388.00

Option not available

    This combination does not exist.

    Add to Cart

    Schneider Programmable contacts M6C - for drawout circuit breaker Masterpact NW
    Terjual 0
    0 (0 Rating)
    Ulasan (0)

    Rp 4,548,641.00
    48.00 % Rp 8,747,388.00 4548641 IDR

    Rp 8,747,388.00

    Option not available

    Atur Jumlah & Catatan
    Stock Total: Out of Stock
    Keranjang Beli Sekarang
    Spesifikasi
    Main (see above)
    range of product
    Masterpact UR
    Masterpact NW
    Masterpact NW UL 489
    range
    Masterpact
    device short name
    M6c
    product or component type
    Programmable contact
    device application
    Control
    range compatibility
    Masterpact NW circuit breaker
    Masterpact NW UL 489 circuit breaker
    Masterpact UR circuit breaker
    Complementary (see above)
    mounting mode
    Drawout
    [Ie] rated operational current
    1.5 A at 48 V DC
    1.8 A at 24 V DC
    3 A at 380 V AC
    5 A at 240 V AC
    0.15 A at 250 V DC
    0.4 A at 125 V DC
    minimum load
    100 mA at 24 V
    Packing Units (see above)
    Unit Type of Package 1
    PCE
    Number of Units in Package 1
    1
    Package 1 Weight
    368 g
    Package 1 Height
    9 cm
    Package 1 width
    10 cm
    Package 1 Length
    11 cm
    Offer Sustainability (see above)
    REACh free of SVHC
    Yes
    EU RoHS Directive
    Pro-active compliance (Product out of EU RoHS legal scope)
    EU RoHS Declaration
    Toxic heavy metal free
    Yes
    Mercury free
    Yes
    RoHS exemption information
    China RoHS Regulation
    China RoHS declaration
     Pro-active China RoHS declaration (out of China RoHS legal scope)
    WEEE
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
    Contractual warranty (see above)
    Warranty
    12 months
