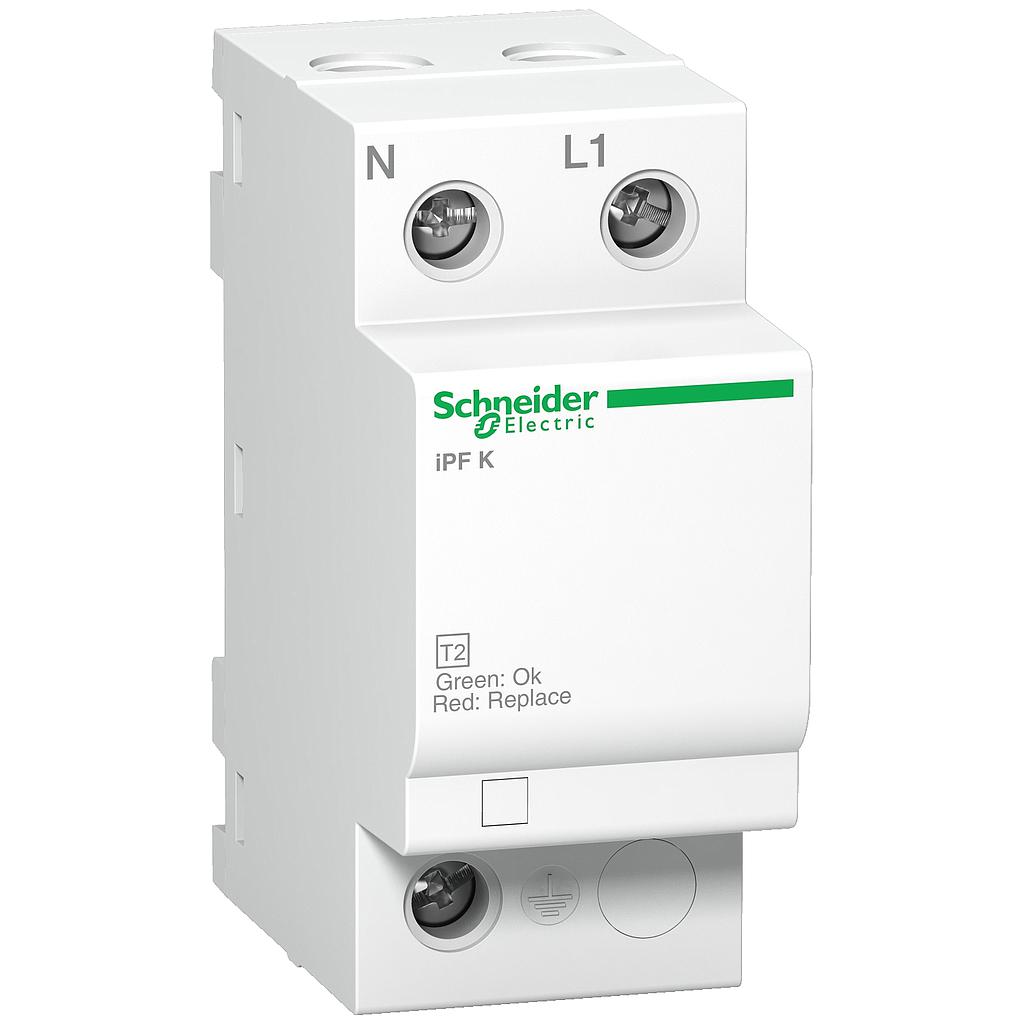

Schneider SCHNEIDER SURGE ARRESTER FIXED PF20 1P+N A9L15692

# of Pole : 1 Pole + N

Rp 1,367,958.00 Rp 711,338.00 711338 IDR

Rp 1,367,958.00

Option not available

  • # of Pole

This combination does not exist.

Add to Cart

Schneider SCHNEIDER SURGE ARRESTER FIXED PF20 1P+N A9L15692
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 711,338.00
48.00 % Rp 1,367,958.00 711338 IDR

Rp 1,367,958.00

Option not available

Atur Jumlah & Catatan
Stock Total: 269

# of Pole : 1 Pole + N

Spesifikasi
Main (see above)
range of product
Acti 9
product name
Acti 9 iPF K
product or component type
Surge arrester
device short name
IPF K
device application
Distribution
poles description
1P + N
remote signalling
Without
surge arrester type
Electrical distribution network
earthing system
TN-S
TT
Complementary (see above)
surge arrester class type
Type 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current
Common mode: 5 kA (L/PE)
Common mode: 5 kA (N/PE)
Differential mode: 5 kA (L/N)
[Imax] maximum discharge current
Common mode: 20 kA L/PE
Common mode: 20 kA N/PE
Differential mode: 20 kA L/N
[Uc] maximum continuous operating voltage
Common mode: 340 V L/PE
Common mode: 260 V N/PE
Differential mode: 340 V L/N
maximum [Up] voltage protection level
Common mode <1.5 kV type 2 N/PE
Differential mode <1.1 kV type 2 L/N
[Ut] temporary overvoltage
337 V L/N 5 s withstand
442 V L/PE 5 s withstand
1200 V N/PE 200 ms withstand
1453 V L/PE 200 ms withstand
disconnector device type
Associated circuit breaker iK60N 20 A curve C - Icu 6 kA
Associated fuse gG 25 A - Icu 25 kA
[Isccr] short-circuit current rating
25 kA
signalling circuit voltage
0.25 A/250 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
4
height
81 mm
width
36 mm
depth
69 mm
net weight
210 g
colour
White (RAL 9003)
response time
<= 25 ns
[Ipe] Ground residual current
0.003 mA
connections - terminals
Tunnel type terminal (top or bottom) 25 mm² rigid
Tunnel type terminal (top or bottom) 16 mm² flexible
Tunnel type terminal (top or bottom) 16 mm² flexible with ferrule
wire stripping length
11 mm
tightening torque
3.5 N.m
Environment (see above)
standards
IEC 61643-11:2011
product certifications
CE
EAC
IP degree of protection
IP40 on front face: conforming to IEC 60529
IP20 on terminal: conforming to IEC 60529
IK degree of protection
IK03 conforming to IEC 62262
relative humidity
5…95 %
operating altitude
2000 m
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
204 g
Package 1 Height
7 cm
Package 1 width
4.5 cm
Package 1 Length
8.5 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
Environmental Disclosure
Circularity Profile
Contractual warranty (see above)
Warranty
12 months

Specifications for Schneider SCHNEIDER SURGE ARRESTER FIXED PF20 1P+N A9L15692
