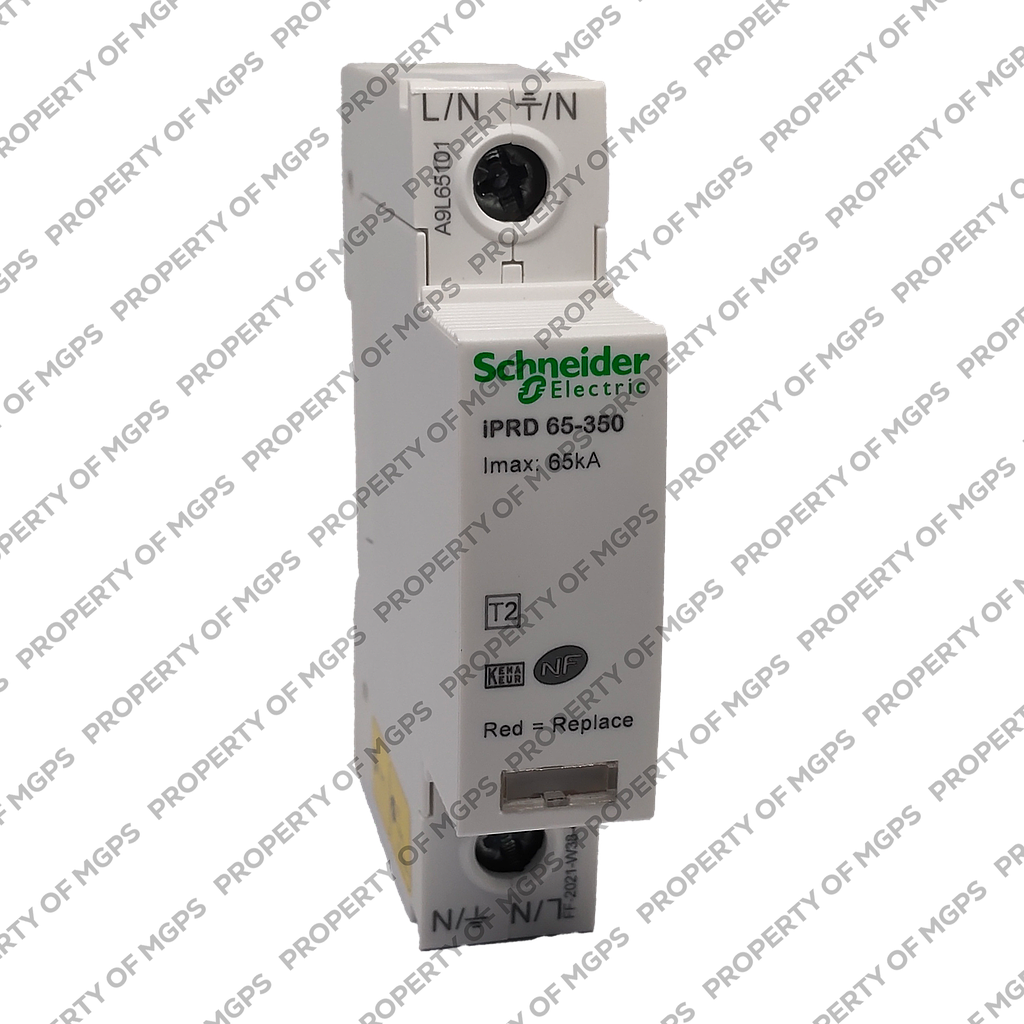

Schneider IPRD65r modular surge arrester - 1P - 350V - with remote transfert
# of Pole : 1
Operating Voltage : 350V
Schneider IPRD65r modular surge arrester - 1P - 350V - with remote transfert
Terjual 0
0 (0 Rating)
Ulasan (0)
Rp 736,010.00
48.00 %
Rp 1,415,405.00
Rp 1,415,405.00
Option not available
Spesifikasi
| range of product | Acti 9 | |
|---|---|---|
| product name | Acti 9 iPRD | |
| product or component type | Surge arrester with pluggable cartridge | |
| device short name | IPRD65r | |
| device application | Distribution | |
| poles description | 1P | |
| remote signalling | With | |
| signal contacts composition | 1 SD (1 C/O) | |
| surge arrester type | Electrical distribution network | |
| earthing system | IT 230 TN-C |
| surge arrester class type | Type 2 | |
|---|---|---|
| surge arrester technology | MOV | |
| [Ue] rated operational voltage | 230/400 V AC (+/- 10 %) at 50/60 Hz | |
| [In] nominal discharge current | Common mode: 20 kA (L/PE) Common mode: 20 kA (N/PE) | |
| [Imax] maximum discharge current | Common mode: 65 kA L/PE | |
| [Uc] maximum continuous operating voltage | Common mode: 350 V L/PE Common mode: 350 V N/PE | |
| maximum [Up] voltage protection level | Common mode <1.5 kV type 2 L/PE | |
| [Ut] temporary overvoltage | 337 V L/N 5 s withstand 1200 V N/PE 200 ms safe failure mode | |
| disconnector device type | Associated circuit breaker IC60N 50 A curve C - Icu 10 kA Associated circuit breaker iC60H 50 A curve C - Icu 15 kA Associated circuit breaker NG125N 50 A curve C - Icu 25 kA Associated circuit breaker NG125H 100 A curve C - Icu 36 kA Associated circuit breaker NG125L 100 A curve C - Icu 50 kA Associated fuse gG 80 A - Icu 50 kA | |
| [Isccr] short-circuit current rating | 50 kA | |
| signalling circuit voltage | 0.25 A/250 V AC 50/60 Hz | |
| mounting mode | Clip-on | |
| mounting support | DIN rail | |
| 9 mm pitches | 2 | |
| height | 85 mm | |
| width | 18 mm | |
| depth | 69 mm | |
| net weight | 0.136 kg | |
| colour | White (RAL 9003) | |
| response time | <= 25 ns | |
| [Ipe] Ground residual current | 0.003 mA 0.6 mA | |
| connections - terminals | Tunnel type terminal (downside) 2.5…35 mm² Tunnel type terminal (upside) 2.5…35 mm² | |
| tightening torque | 2.5 N.m |
| standards | EN 61643-11:2012 IEC 61643-11:2011 | |
|---|---|---|
| product certifications | CE | |
| quality labels | KEMA-KEUR NF | |
| IP degree of protection | IP40 on front face: conforming to IEC 60529 IP20 built-in: conforming to IEC 60529 | |
| IK degree of protection | IK03 conforming to IEC 62262 | |
| relative humidity | 5…95 % | |
| operating altitude | 2000 m | |
| ambient air temperature for operation | -25…60 °C | |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE | |
|---|---|---|
| Number of Units in Package 1 | 1 | |
| Package 1 Weight | 158 g | |
| Package 1 Height | 7 cm | |
| Package 1 width | 2 cm | |
| Package 1 Length | 9 cm |
| Sustainable offer status | Green Premium product | |
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC | Yes | |
| EU RoHS Directive | Compliant EU RoHS Declaration | |
| Toxic heavy metal free | Yes | |
| Mercury free | Yes | |
| RoHS exemption information | ||
| China RoHS Regulation | China RoHS declaration Pro-active China RoHS declaration (out of China RoHS legal scope) | |
| Environmental Disclosure | ||
| Circularity Profile | ||
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 12 months |
|---|
Specifications for Schneider IPRD65r modular surge arrester - 1P - 350V - with remote transfert
| General Information | |
|---|---|
| # of Pole | 1 |
| Uncategorized | |
| Operating Voltage | 350V |
