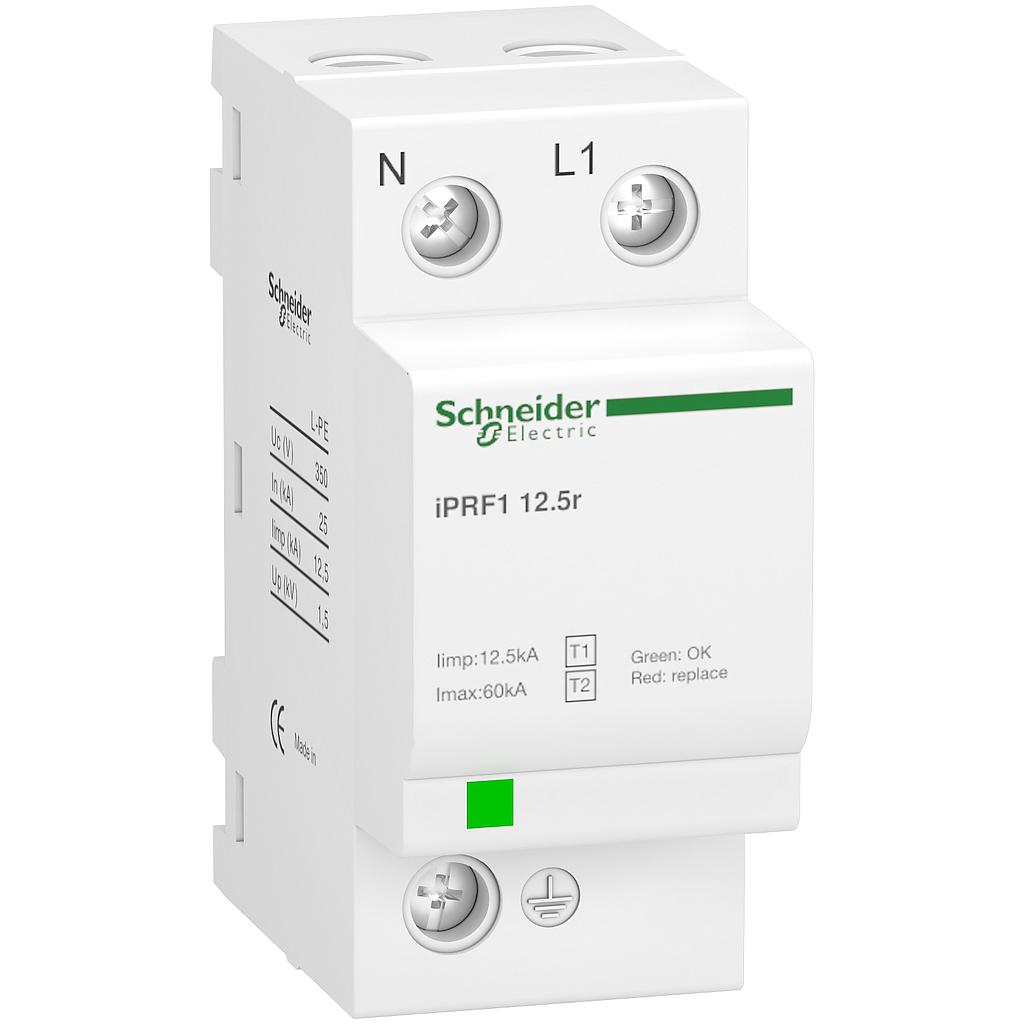

Schneider IPRF1 12.5r modular surge arrester - 1P + N - 350V - with remote transfert

# of Pole : 1 Pole + N

Operating Voltage : 350V

Rp 0.00 Rp 0.00 0 IDR

Rp 0.00

Option not available

  • # of Pole
  • Operating Voltage

This combination does not exist.

Add to Cart

Schneider IPRF1 12.5r modular surge arrester - 1P + N - 350V - with remote transfert
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 0.00
0.00 % Rp 0.00 0 IDR

Rp 0.00

Option not available

Atur Jumlah & Catatan
Stock Total: Out of Stock

# of Pole : 1 Pole + N

Operating Voltage : 350V

Spesifikasi
Main (see above)
range of product
Acti 9
product name
Acti 9 iPRF1
product or component type
Surge arrester
device short name
IPRF1 12.5r
device application
Distribution
poles description
1P + N
remote signalling
With
signal contacts composition
1 SD (1 C/O)
surge arrester type
Electrical distribution network
earthing system
TN-S
TT
Complementary (see above)
surge arrester class type
Type 1 + 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230 V AC (+/- 10 %) at 50 Hz
[In] nominal discharge current
Differential mode: 25 kA (L/N)
Common mode: 25 kA (N/PE)
[Imax] maximum discharge current
50 kA
[Iimp] impulse current
Common mode: 50 kA N/PE 25 A.s
Differential mode: 12.5 kA L/N 6.25 A.s
[Uc] maximum continuous operating voltage
Differential mode: 350 V L/N
Common mode: 350 V N/PE
maximum [Up] voltage protection level
Common mode <1.5 kV type 1 N/PE
Differential mode <1.5 kV type 1 L/N
[If] follow current
0.1 kA common mode N/PE
disconnector device type
Associated circuit breaker NG125N 80 A curve C - Icu 15 kA
Associated circuit breaker NG125N 80 A curve C - Icu 25 kA
Associated circuit breaker NG125H 80 A curve C - Icu 36 kA
Associated circuit breaker NG125L 80 A curve C - Icu 50 kA
Associated fuse gG 160 A standard
Associated circuit breaker C120N 80 A curve C - Icu 10 kA
[Isccr] short-circuit current rating : double fault
50 kA
signalling circuit voltage
1.5 A/250 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
4
height
81.4 mm
width
36 mm
depth
71 mm
net weight
0.29 kg
colour
White (RAL 9003)
material
PA6
response time
<= 25 ns
connections - terminals
Tunnel type terminal10…25 mm² flexible
Tunnel type terminal10…35 mm² rigid
tightening torque
2.5 N.m
Environment (see above)
standards
EN 61643-11:2012
IEC 61643-11:2011
product certifications
CE
IP degree of protection
IP40 on front face: conforming to IEC 60529
IP20 built-in: conforming to IEC 60529
IK degree of protection
IK05 conforming to IEC 62262
relative humidity
5…95 %
operating altitude
2000 m
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…80 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
314 g
Package 1 Height
4.6 cm
Package 1 width
9.5 cm
Package 1 Length
8.5 cm
Unit Type of Package 2
S03
Number of Units in Package 2
48
Package 2 Weight
15.681 kg
Package 2 Height
30 cm
Package 2 width
30 cm
Package 2 Length
40 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Contractual warranty (see above)
Warranty
12 months
