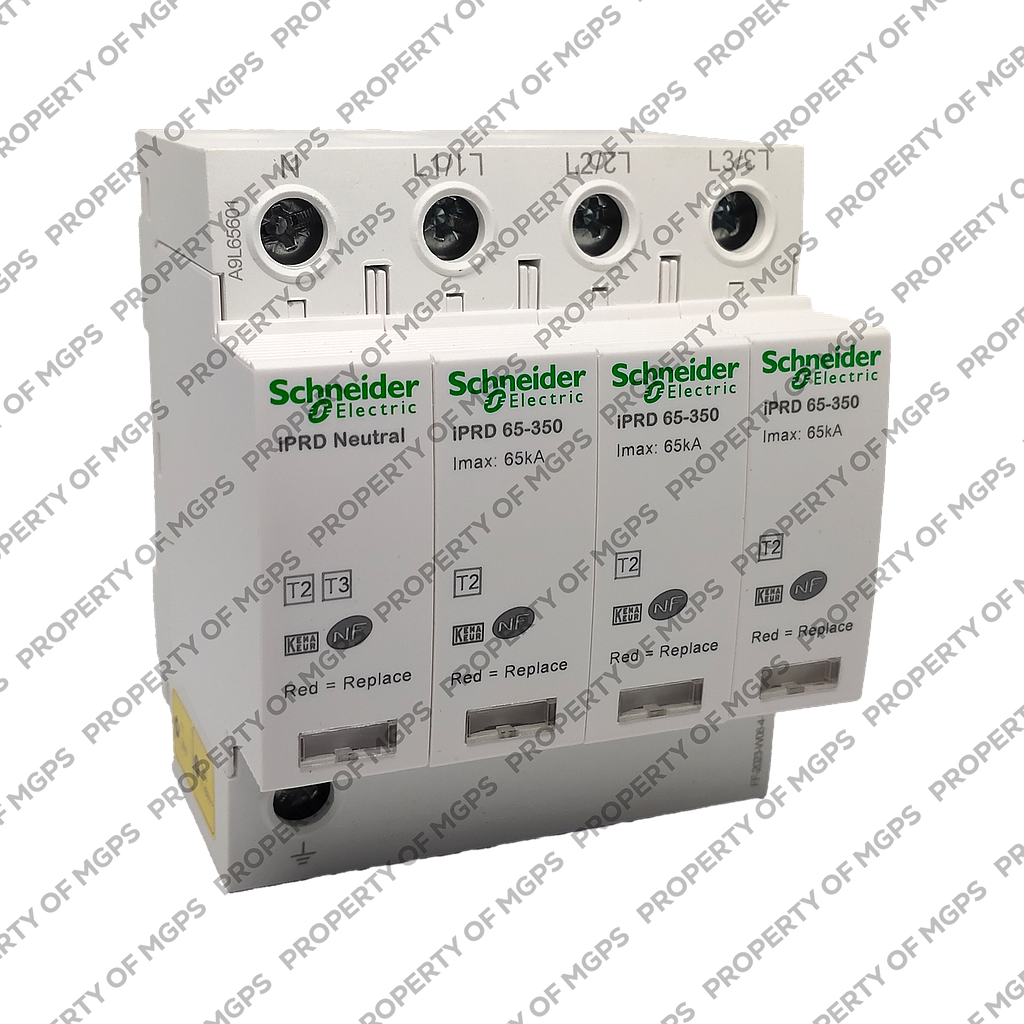

Schneider IPRD65r modular surge arrester - 3P + N - 350V - with remote transfert

# of Pole : 3 Pole + N

Operating Voltage : 350V

Rp 4,961,922.00 Rp 2,580,199.00 2580199 IDR

Rp 4,961,922.00

Option not available

  • # of Pole
  • Operating Voltage

This combination does not exist.

Add to Cart

Schneider IPRD65r modular surge arrester - 3P + N - 350V - with remote transfert
Terjual 0
0 (0 Rating)
Ulasan (0)

Rp 2,580,199.00
48.00 % Rp 4,961,922.00 2580199 IDR

Rp 4,961,922.00

Option not available

Atur Jumlah & Catatan
Stock Total: 36

# of Pole : 3 Pole + N

Operating Voltage : 350V

Spesifikasi
Main (see above)
range of product
Acti 9
product name
Acti 9 iPRD
product or component type
Surge arrester with pluggable cartridge
device short name
IPRD65r
device application
Distribution
poles description
3P + N
remote signalling
With
signal contacts composition
1 SD (1 C/O)
surge arrester type
Electrical distribution network
earthing system
TN-S
TT
Complementary (see above)
surge arrester class type
Type 2
surge arrester technology
MOV + GDT
[Ue] rated operational voltage
230/400 V AC (+/- 10 %) at 50/60 Hz
[In] nominal discharge current
Common mode: 20 kA (L/PE)
Common mode: 20 kA (N/PE)
Differential mode: 20 kA (L/N)
[Imax] maximum discharge current
Common mode: 65 kA L/PE
Common mode: 65 kA N/PE
Differential mode: 65 kA L/N
[Uc] maximum continuous operating voltage
Common mode: 260 V N/PE
Common mode: 350 V L/PE
Differential mode: 350 V L/N
maximum [Up] voltage protection level
Common mode <1.5 kV type 2 N/PE
Differential mode <1.5 kV type 2 L/N
[Ut] temporary overvoltage
337 V L/N 5 s withstand
1200 V N/PE 200 ms safe failure mode
442 V L/PE 5 s withstand
1453 V L/PE 200 ms safe failure mode
disconnector device type
Associated circuit breaker IC60N 50 A curve C - Icu 10 kA
Associated circuit breaker iC60H 50 A curve C - Icu 15 kA
Associated circuit breaker NG125N 50 A curve C - Icu 25 kA
Associated circuit breaker NG125H 100 A curve C - Icu 36 kA
Associated circuit breaker NG125L 100 A curve C - Icu 50 kA
Associated fuse gG 80 A - Icu 50 kA
[Isccr] short-circuit current rating
50 kA
25 kA
signalling circuit voltage
0.25 A/250 V AC 50/60 Hz
mounting mode
Clip-on
mounting support
DIN rail
9 mm pitches
8
height
85 mm
width
72 mm
depth
69 mm
net weight
0.492 kg
colour
White (RAL 9003)
response time
<= 25 ns
[Ipe] Ground residual current
0.003 mA
0.6 mA
connections - terminals
Tunnel type terminal (downside) 2.5…35 mm²
Tunnel type terminal (upside) 2.5…35 mm²
tightening torque
2.5 N.m
Environment (see above)
standards
EN 61643-11:2012
IEC 61643-11:2011
product certifications
CE
quality labels
NF
KEMA-KEUR
IP degree of protection
IP40 on front face: conforming to IEC 60529
IP20 built-in: conforming to IEC 60529
IK degree of protection
IK03 conforming to IEC 62262
relative humidity
5…95 %
operating altitude
2000 m
ambient air temperature for operation
-25…60 °C
ambient air temperature for storage
-40…85 °C
Packing Units (see above)
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Weight
533 g
Package 1 Height
8 cm
Package 1 width
8 cm
Package 1 Length
9 cm
Offer Sustainability (see above)
Sustainable offer status
Green Premium product
REACh Regulation
REACh free of SVHC
Yes
EU RoHS Directive
Toxic heavy metal free
Yes
Mercury free
Yes
RoHS exemption information
China RoHS Regulation
China RoHS declaration
 Pro-active China RoHS declaration (out of China RoHS legal scope)
Environmental Disclosure
Circularity Profile
Contractual warranty (see above)
Warranty
12 months
